PoE-12
Single-port Power over Ethernet Injector
User's Guide
Version 1.0
9/2005
ENGLISH
The PoE-12 Single-port Power over Ethernet injector is a one-port
power injector, designed for use with 10/100 BaseT Ethernet
networks. The PoE-12 injects DC power through the unused twisted-
wires (pairs 4/5 and 7/8) of a standard 8-pin CAT 5 cable. This
increases flexibility in the positioning of a power over Ethernet (PoE)
enabled device by eliminating the need for a nearby power source.
Key Features
• One RJ-45, 10/100 Mbps PoE-enabled port.
• Ensures a constant power supply to a PoE-enabled device.
• Automatically detects if the connected device is PoE-enabled to
avoid sending power to a non-PoE device.

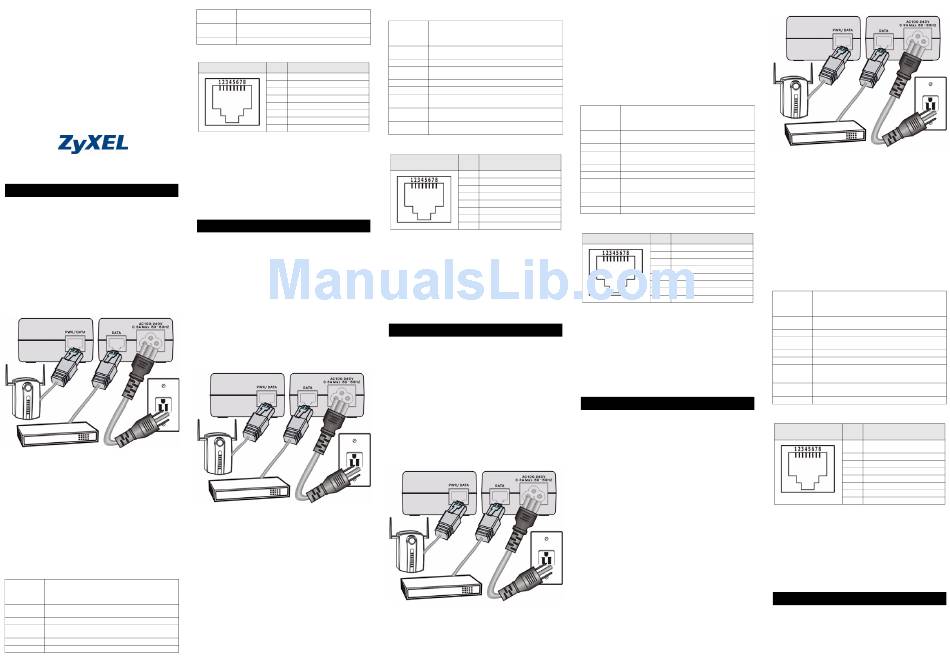

Connections
Connect the PoE-12 as follows.
Ethernet Ports
The PWR/DATA port sends power and Ethernet to your PoE-enabled
device. Use a straight-through Ethernet cable to connect the PWR/
DATA port to your PoE-enabled device.
The DATA port does not deliver power. Use an Ethernet cable to
connect the PoE-12's DATA port to the LAN (an Ethernet device).
The maximum Ethernet cable length is 100m.
POWER Socket
Use the included power cord to connect the power socket to a power
source (wall outlet or power strip).
The PWR/LNK LED turns on green when the PWR/DATA port is
connected and sending power to an Ethernet device.
Specifications
Compatibility
IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX, IEEE
802.3af
Compatible with the ZyAIR B-3000, B-420 and G-3000 at the
time of writing.
DATA
PWR/DATA
Ports
1
RJ-45 Ethernet port, 1
PoE injector
RJ-45 Ethernet port
PWR/LNK
LEDs
1
(green)
Power
Input: 100~240V, 50~60Hz, 0.3A. Consumption: 2.3~17.3 W.
Output: 48VDC, 0.3A, Max. 15 W.
Weight
440 g
Dimensions
117 (L) x 60 (W) x 35 (H) mm
Operating
Temperature: 5 ~ 50 degrees Celsius
Environment
Humidity: 10 to 90% (non-condensing)
Storage
Temperature: -20 ~ 55 degrees Celsius
Environment
Humidity: 5 ~ 95%
EMI and Safety
FCC Class B, CE, C-Tick, UL
PWR/DATA Port Pin Assignments
PIN NO RJ-45 SIGNAL ASSIGNMENT
1
Output Transmit Data +
2
Output Transmit Data -
3
Receive Data +
4
Power +
5
Power +
6
Receive Data -
7
Power -
8
Power -
Troubleshooting
The PWR/LNK LED is off and/or power is not being supplied to my
PoE-enabled device
• Check to see that the power cord is securely connected to the
PoE-12 and an appropriate power source. Make sure the power
source is on and functioning properly.
• Refer to the Connections section. Check that the Ethernet
cables are connected properly and that you are using the correct
type of Ethernet cable. Contact your local distributor if the
problem persists.
DEUTSCH
Beim PoE-12 Single-Port PoE-Injector handelt es sich um einen
Einzelanschluss-Injector, der für den Betrieb in 10/100 BaseT
Ethernet-Netzwerken vorgesehen ist. Der PoE-12-Anschluss leitet
DC-Strom durch die nicht verwendeten gedrehten Leitungen (Paare
4/5 und 7/8) eines 8-poligen CAT 5-Standardkabels. Das bietet mehr
Flexibilität beim Aufstellen eines PoE-fähigen Geräts, da dafür nun
keine zusätzliche Stromquelle benötigt wird.
Die wichtigsten Leistungsmerkmale
• Ein PoE-fähiger RJ-45-Anschluss, 10/100 Mbps.
• Stellt eine gleichmäßige Stromversorgung für ein PoE-fähiges
Gerät sicher.
• Erkennt automatisch, ob das angeschlossene Gerät PoE-fähig
ist, um die Stromversorgung eines nicht PoE-fähigen Geräts zu
vermeiden.
Anschlüsse
Schließen Sie den PoE-12-Anschluss folgendermaßen an.
Ethernetanschlüsse
Der Anschluss PWR/DATA leitet den Strom über das Ethernetkabel
zum PoE-fähigen Gerät. Verbinden Sie das PoE-fähige Gerät mit
einem direkten Ethernetkabel an den Anschluss PWR/DATA an.
Der Anschluss DATA liefert keinen Strom. Verbinden Sie den
Anschluss PoE-12? DATA mit einem Ethernetkabel mit dem LAN (ein
Ethernetgerät).
Die maximale Länge des Ethernetkabels beträgt 100 m.
Netzanschluss
Schließen Sie das mitgelieferte Stromkabel an den Netzanschluss
und an das Stromnetz an (Wandsteckdose oder Steckdosenleiste).
Die PWR/LNK-LED wird grün, sobald der Anschluss PWR/DATA
angeschlossen ist und ein Ethernetgerät mit Strom versorgt.
Spezifikationen
Kompatibilität
IEEE802.3, 10BASE-T, IEEE802.3u, 100BASE-TX,
IEEE802.3af
Zum Zeitpunkt der Erstellung dieser Dokumentation
kompatibel mit ZyAIR B-3000, B-420 und G-3000.
DATA
PWR/DATA
Anschlüsse
1
RJ-45-Ethernetanschluss, 1
PoE-
Injector RJ-45-Ethernetanschluss
PWR/LNK
LED-Anzeigen
1
(grün)
Strom
Eingang: 100 - 240 V, 50 - 60 Hz, 0,3 A. Verbrauch: 2,3 -
17,3 W. Ausgabe: 48 VDC, 0,3 A, max. 15 W.
Gewicht
440 g
Abmessungen
117 x 60 x 35 mm (L x B x H)
Umgebungsbedi
Temperatur: 5 - 50°C
ngungen
Luftfeuchtigkeit: 10 - 90 % (nicht kondensierend)
Lagerbedingung
Temperatur: -20 - 55°C
en
Luftfeuchtigkeit: 5 - 95 %
EMI und
FCC Klasse B, CE, C-Tick, UL
Sicherheit
Pin-Belegung am PWR/DATA-Anschluss
PIN-
RJ-45 SIGNALZUWEISUNG
NR.
1
Ausgabe Sendedaten +
2
Ausgabe Sendedaten -
3
Datenempfang +
4
Strom +
5
Strom +
6
Datenempfang -
7
Strom -
8
Strom -
Problembeseitigung
Die PWR/LNK-LED leuchtet nicht und/oder das PoE-fähige Gerät
wird nicht mit Strom versorgt.
• Prüfen Sie, ob das Netzkabel fest am PoE-12-Anschluss und an
einer geeigneten Stromquelle angeschlossen ist. Stellen Sie
sicher, dass die Stromquelle eingeschaltet ist und richtig
funktioniert.
• Lesen Sie nach im Abschnitt Anschlüsse. Prüfen Sie, ob der
richtige Ethernetkabeltyp verwendet wurde und ob sie richtig
angeschlossen sind. Wenn das Problem weiterhin bestehen
bleibt, wenden Sie sich an einen Vertragshändler in Ihrer Nähe.
ESPAÑOL
El inyector PoE-12 de corriente de un sólo puerto sobre Ethernet es
un inyector de corriente de un puerto, diseñado para su uso en redes
Ethernet 10/100 BaseT. El PoE-12 inyecta corriente DC a través de
los cables trenzados no usados (pares 4/5 y 7/8) de un cable
estándar CAT 5 de 8 contactos. Esto aumenta la flexibilidad en el
posicionamiento de un dispositivo con corriente sobre Ethernet (PoE)
eliminando la necesidad de una fuente de alimentación cercana.
Características principales
• Una clavija RJ-45, puerto con PoE a 10/100 Mbps.
• Asegura una fuente de corriente constante para dispositivos con
PoE.
• Detecta automáticamente si el dispositivo conectado tiene PoE
para evitar enviar corriente a dispositivos sin PoE.
Conexiones
Conecte el PoE-12 como sigue.
Puertos Ethernet
El puerto PWR/DATA envía corriente y Ethernet a su dispositivo con
PoE. Utilice un cable directo Ethernet para conectar el puerto PWR/
DATA a su dispositivo con PoE.
El puerto DATA no envía corriente. Utilice un cable Ethernet para
conectar el puerto DATA del PoE-12 a la LAN (un dispositivo
Ethernet).
La longitud máxima del cable Ethernet es 100m.
Zócalo POWER (CORRIENTE)
Utilice el cable de corriente incluido para conectar el zócalo de
corriente a la fuente de alimentación (toma de corriente o regleta).
El LED PWR/LNK se enciende en verde cuando el puerto PWR/
DATA está conectado y enviando corriente a un dispositivo Ethernet.
Especificaciones
Compatibilidad
IEEE802.3, 10BASE-T, IEEE802.3u, 100BASE-TX,
IEEE802.3af
Compatible con ZyAIR B-3000, B-420 y G-3000 en el
momento de escritura.
DATA
Puertos
1 puerto Ethernet RJ-45
, 1 puerto Ethernet RJ-45
inyector PoE
PWR/DATA
PWR/LNK
LEDs
1
(verde)
Corriente
Entrada: 100~240V, 50~60Hz, 0.3A. Consumo: 2.3~17.3 W.
Salida: 48VDC, 0.3A, Máx.. 15 W.
Peso
440 g
Dimensiones
117 (L) x 60 (An) x 35 (Al) mm
Ambiente de
Temperatura: 5 ~ 50 grados Celsius
operación
Humedad: 10 a 90% (no condensada)
Ambiente de
Temperatura: -20 ~ 55 grados Celsius
almacenamiento
Humedad: 5 ~ 95%
EMI y seguridad FCC Class B, CE, C-Tick, UL
Asignación de contactos del puerto PWR/DATA
Nº PIN
ASIGNACIÓN DE SEÑAL RJ-45
1
Datos de transmisión de salida +
2
Datos de transmisión de salida -
3
Datos de recepción +
4
Corriente +
5
Corriente +
6
Datos de recepción -
7
Corriente -
8
Corriente -
Solución de problemas
El LED PWR/LNK está apagado y/o la corriente no llega a mi
dispositivo con PoE
• Compruebe si el cable de alimentación está bien conectado al
PoE-12 y a una fuente de alimentación apropiada. Compruebe si
la fuente de alimentación está encendida y si funciona
correctamente.
• Consulte la sección Conexiones. Compruebe si los cables
Ethernet están bien conectados y si está utilizando el tipo
correcto de cable Ethernet. Contacte con su distribuidor local si
el problema persiste.
FRANÇAIS
L'injecteur Power over Ethernet à port unique PoE-12 est un injecteur
d'alimentation à un port conçu pour être utilisé avec les réseaux
Ethernet 10/100 BaseT. Le PoE-12 injecte le courant CC à travers les
fils torsadés non utilisés (paires 4/5 et 7/8) d'un câble CAT 5 à 8
broches standard. Ceci augmente la flexibilité et le positionnement
d'un périphérique adapté Power over Ethernet (PoE) en éliminant le
besoin d'une source d'alimentation proche.
Caractéristiques clés
• Un port adapté PoE, 10/100 Mbps, RJ-45.
• Assure une alimentation constante au périphérique adapté PoE.
• Détecte automatiquement si le périphérique connecté est adapté
PoE pour éviter d'alimenter un périphérique non-PoE.
Connexions
Connectez le PoE-12 de la manière suivante.
Ports Ethernet
Le port PWR/DATA fournit l'alimentation et Ethernet à votre
périphérique adapté PoE. Utilisez un câble Ethernet droit pour
connecter le port PWR/DATA à votre périphérique adapté PoE.
Le port DATA ne délivre pas d'alimentation. Utilisez un câble
Ethernet pour connecter le port DATA de PoE-12 au LAN (un
périphérique Ethernet).
La longueur maximum du câble Ethernet est de 100m.
Prise d'ALIMENTATION
Utilisez le cordon d'alimentation fourni pour connecter la prise
d'alimentation à une source d'alimentation (prise murale ou une prise
multiple).
La LED PWR/LNK devient verte quand le port PWR/DATA est
connecté et alimente un périphérique Ethernet.
Spécifications
Compatibilité
IEEE802.3, 10BASE-T, IEEE802.3u, 100BASE-TX,
IEEE802.3af
Compatible avec ZyAIR B-3000, B-420 et G-3000 au
moment de la rédaction.
Ports
1 port Ethernet RJ-45
DATA
, 1 port Ethernet injecteur RJ-
PWR/DATA
45 PoE
LED
1
PWR/LNK
(verte)
Alimentation
Entrée : 100~240V, 50~60Hz, 0,3A. Consommation:
2,3~17,3 W. Sortie : 48VCC, 0,3A, Max. 15 W
Poids
440 g
Dimensions
117 (L) x 60 (l) x 35 (H) mm
Environnement
Température : 5 ~ 50 degrés Celsius
de
Humidité : 10 à 90% (sans condensation)
fonctionnement
Environnement
Température : -20 ~ 55 degrés Celsius
de stockage
Humidité : 5 ~ 95%
EMI et sécurité
FCC Class B, CE, C-Tick, UL
Attribution des broches du port PWR/DATA
BROC
ATTRIBUTION DU SIGNAL RJ-45
HE N°
1
Données de transmission de sortie
+
2
Données de transmission de sortie -
3
Réception de données +
4
Alimentation +
5
Alimentation +
6
Réception de données -
7
Alimentation -
8
Alimentation -
Dépannage
La LED PWR/LNK est éteinte et/ou l'alimentation n'est pas fournie à
mon périphérique adapté PoE
• Vérifiez si le cordon d'alimentation est correctement connecté au
PoE-12 et à une source d'alimentation appropriée. Vérifiez si la
source d'alimentation est allumée et fonctionne correctement.
• Reportez-vous à la section Connexions. Vérifiez que les câbles
Ethernet sont connectés correctement et que vous utilisez le
type de câble Ethernet correct. Contactez votre distributeur local
si le problème persiste.
ITALIANO
L'iniettore PoE-12 Power over Ethernet è un iniettore di potenza ad
una porta, concepito per l'uso con le reti Ethernet 10/100 BaseT. Il
PoE-12 inietta corrente c.c. attraverso i fili elettrici retorti (coppie 4/5
e 7/8) di un cavo CAT 5 standard a 8 poli. Ciò consente di
incrementare la flessibilità nel posizionamento dei dispositivi abilitati
al power over Ethernet (PoE) eliminando la necessità di disporre di
una sorgente di alimentazione nelle vicinanze.

Advertisement

loading
Need help?

Need help?

Do you have a question about the POE-12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ZyXEL Communications POE-12

  • Page 1 Sie sich an einen Vertragshändler in Ihrer Nähe. ESPAÑOL El inyector PoE-12 de corriente de un sólo puerto sobre Ethernet es un inyector de corriente de un puerto, diseñado para su uso en redes Ethernet 10/100 BaseT. El PoE-12 inyecta corriente DC a través de los cables trenzados no usados (pares 4/5 y 7/8) de un cable estándar CAT 5 de 8 contactos.
  • Page 2 PoE. Utilizzare un cavo Ethernet passante diritto per collegare la porta PWR/ DATA al dispositivo abilitato PoE. La porta DATA non trasmette elettricità. Usare un cavo Ethernet per collegare la porta .DATA del PoE-12 alla LAN (un dispositivo Ethernet). La lunghezza massima del cavo Ethernet è 100m.
