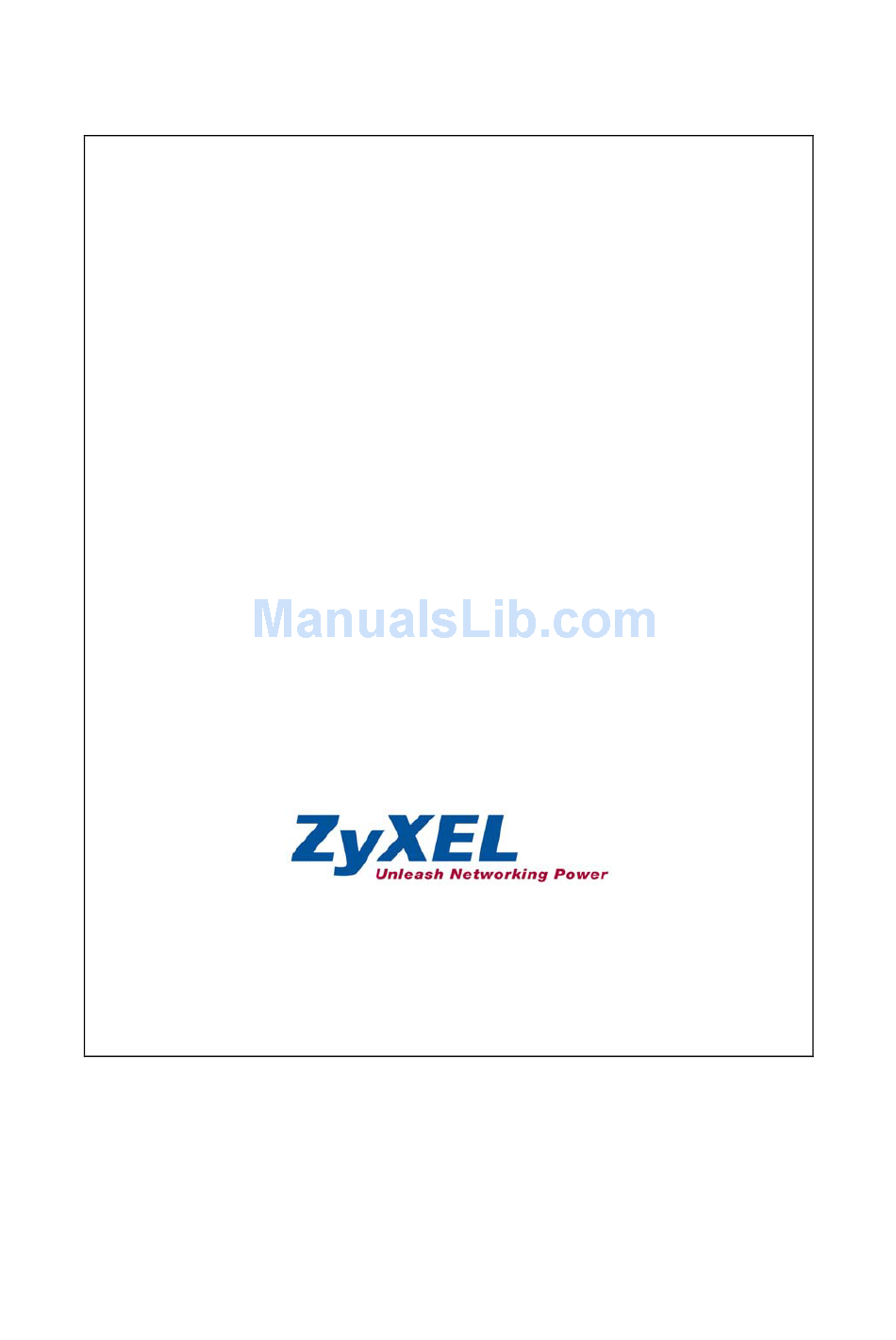

- Page 1 PoE-10 Single-port Power over Ethernet Injector User’s Guide February 2004...
-
Page 2: Table Of Contents
PoE-10 Single-port Power over Ethernet Injector Table of Contents Copyright ......................... 2 Disclaimer ........................2 Trademarks ........................2 CE-Mark Warning......................2 FCC Statement ........................ 2 Information for Canadian Users..................3 ZyXEL Limited Warranty ..................... 3 Syntax Conventions in this Guide.................. 4 Customer Support...................... -
Page 3: Copyright
ZyXEL Communications Corporation. Published by ZyXEL Communications Corporation. All rights reserved. Disclaimer ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein. -
Page 4: Information For Canadian Users
PoE-10 Single-port Power over Ethernet Injector page. Select the certification you wish to view from this page. Information for Canadian Users The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective operation and safety requirements. The Industry Canada label does not guarantee that the equipment will operate to a user's satisfaction. -
Page 5: Syntax Conventions In This Guide
PoE-10 Single-port Power over Ethernet Injector Syntax Conventions in this Guide The PoE-10 Single-port Power over Ethernet Injector may be called the “PoE-10” or “the power injector” in this guide. Customer Support Please have the following information ready when you contact customer support: •... - Page 6 PoE-10 Single-port Power over Ethernet Injector METHOD SUPPORT E-MAIL TELEPHONE WEB SITE REGULAR MAIL SALES E-MAIL FTP SITE LOCATION Worldwide support@zyxel.com.tw +886-3-578-3942 www.zyxel.com ZyXEL Communications Corp. www.europe.zyxel.com 6 Innovation Road II ftp.zyxel.com Science Park Hsinchu 300 sales@zyxel.com.tw +886-3-578-2439 ftp.europe.zyxel.com Taiwan North support@zyxel.com...
-
Page 7: About Your Poe-10
The PWR&DATA port is connected and sending power to an Ethernet device. No Ethernet connection is present. The connected Ethernet device is not Flashing PoE-enabled or is malfunctioning. Rear Panel and Connections The rear panel and connections of the PoE-10 are shown next. All connections... -
Page 8: Lan 10/100M Ports
PoE-10 Single-port Power over Ethernet Injector are located on the rear panel. LAN 10/100M Ports The PoE-10 has two LAN ports. The PWR&DATA port delivers power to your PoE-enabled device. Use a straight-through Ethernet cable to connect the PWR&DATA port to your PoE-enabled device. -
Page 9: Specifications
PoE-10 Single-port Power over Ethernet Injector Specifications Compatibility Compatible with certain ZyXEL PoE-enabled devices. 1 DATA RJ-45 Ethernet port Ports 1 PWR&DATA PoE injector RJ-45 Ethernet port 1: PWR LEDs 1: LNK Power Output 15.4 Watts maximum Power Output Current... -
Page 10: Power Over Ethernet Injector Rj-45 Port Pin Assignments
Make sure you have securely attached the proper cables to the proper ports. Refer to the Rear Panel and Connections section for this information. If your PoE-10 still does not work properly, refer to the table shown next. PROBLEM CORRECTIVE ACTION...
