Instructions

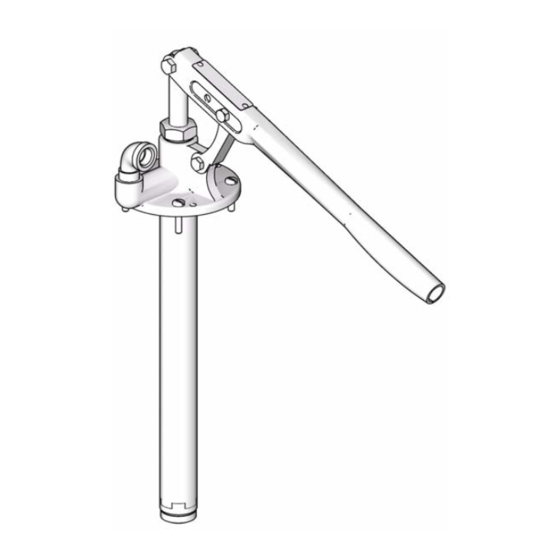

Universal Hand
Pump
- For transferring grease to Grease Jockey and MLX Systems -
Part No. 247886
Hand Operated - 35# Pump
600 psi (4.13 MPa, 41.3 bar) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
312758B
TI11469
Advertisement
Related Manuals for Graco 247886
Summary of Contents for Graco 247886
- Page 1 Universal Hand Pump 312758B - For transferring grease to Grease Jockey and MLX Systems - Part No. 247886 Hand Operated - 35# Pump 600 psi (4.13 MPa, 41.3 bar) Maximum Working Pressure Important Safety Instructions Read all warnings and instructions in this manual.
- Page 2 Pump System Setup Pump System Setup Installing Cover Assembly on Fluid (Refer to F . 1 for all installation instructions on this page.) Container 1. Before opening fluid container, carefully clean off Cover Assembly Setup top to avoid contamination; then remove top. Cover Assembly Includes: Pump (100), Follow Plate (400), Hose (500) and Cover (201).
- Page 3 Service Service Refer to F . 1 (page 2) and F . 5 (page 5) for all Ser- vice instructions on this page). NOTICE Clean all parts in non-flammable solvent. Dry all parts thoroughly before reassembly. 1. Loosen thumb screws (200b) holding cover assem- 7.
- Page 4 Pump Pump Cover 222058 (200) 200d 200a 200c 200b ti11529a Ref. Part No. Description Qty. 200a 206522 . COVER, pail 200b 100220 . SCREW, thumb, 5/16 200c 100016 . WASHER, lock 200d 100022 . SCREW, cap, 1/4-20x x .75 Follow Plate 220653 (400) 400d 400e Grease...
- Page 5 Pump Hand Pump (100) 101b 101f 101c 101d 101a 101e Torque to 20-30 in-lbs Apply lubricant 102b 102d 102a 102c ti11470a Part No. Description Part No. Description 100340 NUT 247500 PUMP, hand, 5-gallon 150662 SCREW, pivot 200753 PISTON 150707 PLATE, designation 101a 100114 .
-
Page 6: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
