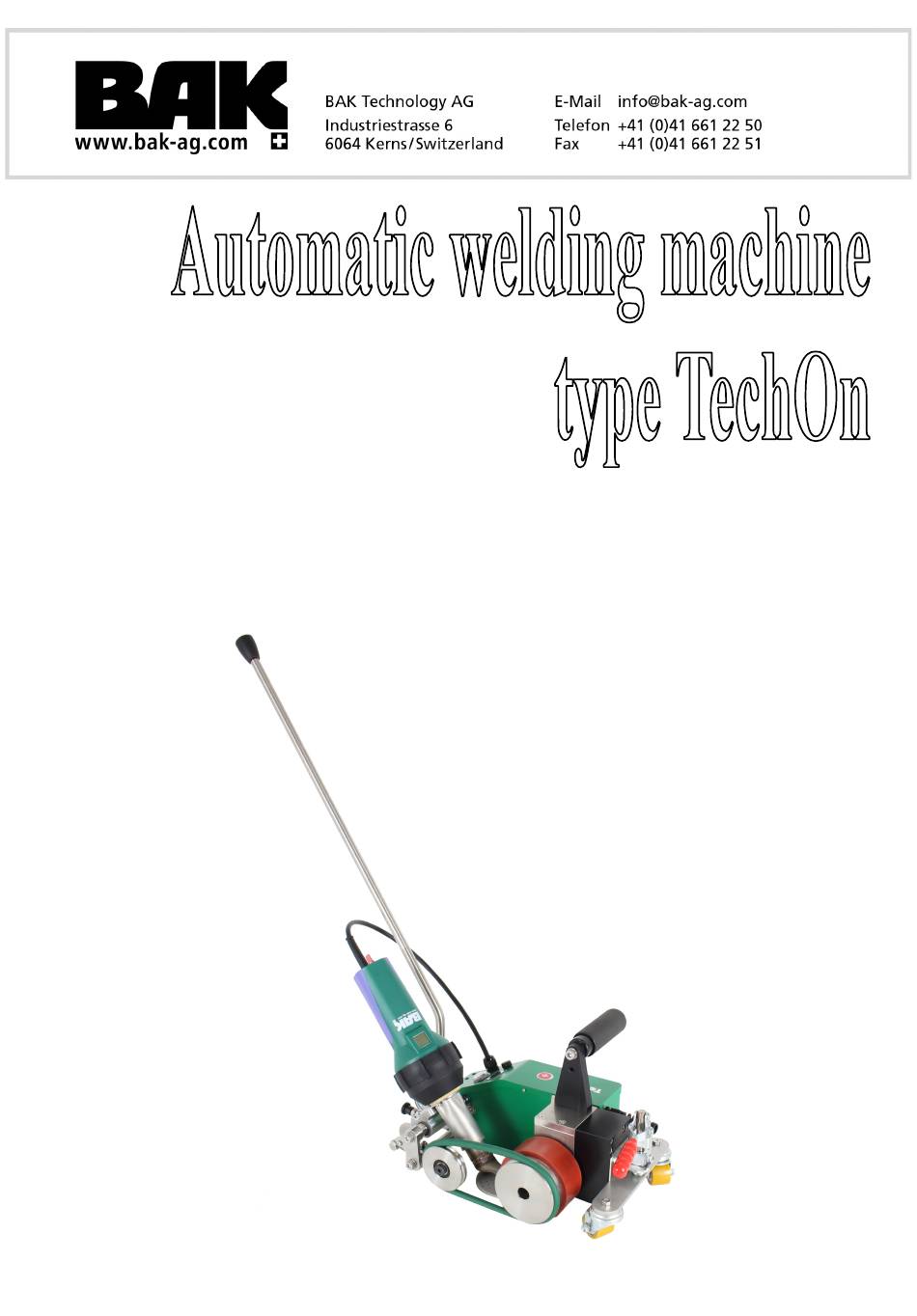

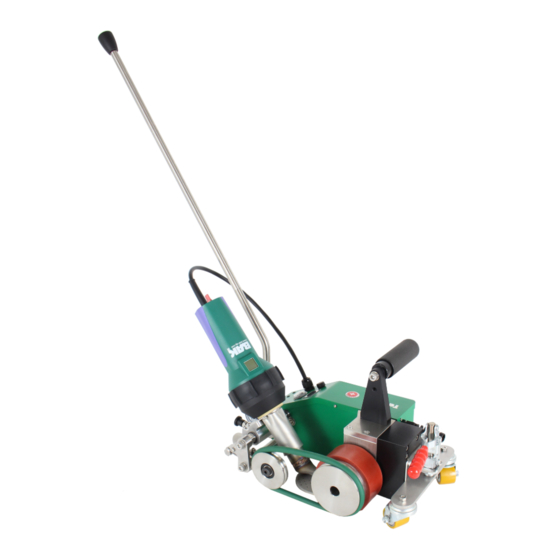

- Page 1 OPERATING MANUAL...
- Page 2 The tool must not be used by children or people with limited physically, sensory or mental ability. Children must be supervised to prevent that they play with the tool. Protect the device from damp and wet! BAK Technology AG...
-
Page 3: Warranty And Liability
BAK devices may never be reconfigured and/or modified. BAK reserves the right to deny any responsibility if this is ignored. No liability can be assumed by BAK for incorrect installation and/or use as well as natural wear and tear of components (e.g. -
Page 4: Nozzle Adjustment
Fold down the guide wheel (1) and fixate it with the hexagon nut on the thread bar. Outside edge of the overlap, outside edge of the pressure roller and outside edge of the guide roller have to be in one line. BAK Technology AG... - Page 5 Always do a test welding before the real welding to find out the parameters. Control unit: 1. Potentiometer speed 2. Display speed 3. Switch hand – automatic 4. Switch heat 5. Potentiometer heat 6. Display temperature (only on digital version) BAK Technology AG...
- Page 6 Put on the mica tube Put on the gasket ring, position the drillings Slide on the nozzle and attach it with the four screws Adjust the nozzle according the sketch on page 4 BAK Technology AG...
-
Page 7: Maintenance
The automatic welding machine is manufactured in accordance with the recognized rules of technology. The latest safety standards have been observed to eliminate work related risks to the life and health of the operating personnel when the machine is used in accordance with its intended use. BAK Technology AG... -
Page 8: Danger Zone
ASSISTANCE AND SUPPORT The BAK group and its authorized service centers offer free support and assistance in the area of applications technology. Our specialists will be pleased to help you. Customer service and orders:... -
Page 9: Transport - Handling - Storage
TechOn Voltage 120/230 Frequency 50/60 Nominal power 1700/2100 Power consumption max. Temperature °C 20 – 600 Drive m/min 0.5-4 Dimensions mm (L x B x H) 450x230x320 Weight Conformity symbol Protection type I Other voltages on request. BAK Technology AG... - Page 10 EC Declaration of conformity Declaratión CE de conformidad EG – Konformitätserklärung BAK Technology AG, CH-6064 Kerns/Schweiz bestätigt, dass das nachfolgend bezeichnete Gerät in der von uns in Verkehr gebrachten Ausführung die Anforderungen der folgenden EG- Richtlinie(n) erfüllt. Bezeichnung des Gerätes:...
