- Page 1 OPERATING MANUAL BAK Thermoplastic Welding Technology AG...
- Page 2 Do not leave the device unobserved. Hot air radiation of the hot air de- vice may ignite combustible materials. Heat may reach inflammable ma- terials that are not visible or obvious. Protect the device from damp and wet! BAK Thermoplastic Welding Technology AG...
-
Page 3: Description Of Functions

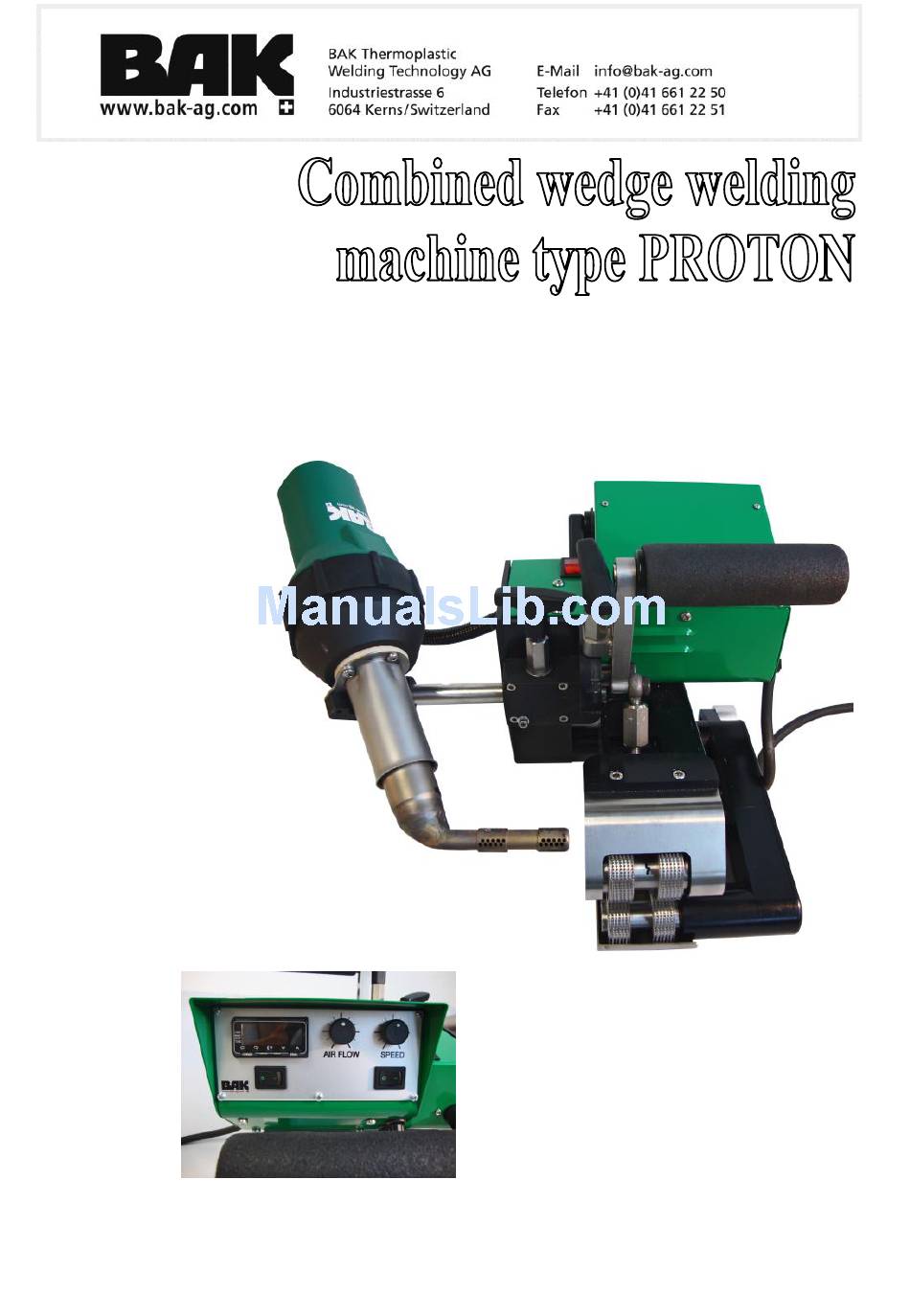

BAK. Any forms of reproduction or copying and electronic storage are prohibited. ITENDED USE The ProtOn is a combined hot air- and wedge welding machine for overlap weld- ing and prefabrication of membranes for tunnel- and civil engineering applica- tions. -
Page 4: Welding Parameters
Set the welding temperature with the up- and down buttons of the temperature controller. The air flow is stepless adjustable with the potentiometer (depending on material). Switch on the heat and let heat up for approx. 5 minutes. Temperature unit Actual temperature Set tempera- ture Down-button Up-button BAK Thermoplastic Welding Technology AG... - Page 5 Do not run the machine if power cord or plug is damaged- Damaged power cords must be changed by professional staff. Connect the tool to the mains Start the tool with the main switch/level BAK Thermoplastic Welding Technology AG...
-
Page 6: Maintenance
Clean the nozzle with a wire brush at the end of welding. Clean the drive/pressure rollers with a wire brush. As required, treat the chain with a suitable spray. After use, always check that the mains cable and plug are not damaged. BAK Thermoplastic Welding Technology AG... - Page 7 When using the machine on roofs and tables, it could fall down due to its automatic drive system. In order to avoid a fall, necessary precautions must be taken. BAK Thermoplastic Welding Technology AG...
-
Page 8: Operational Safety
The main danger zone of the welding machine is the nozzle which can heat up to temperatures of 550 °C. It is recommended to wear heat protective gloves. There is a risk of crushing when swivelling the nozzle. BAK Thermoplastic Welding Technology AG... -
Page 9: Service And Repair
Telefax: (0041) 041 661 22 51 E-Mail: info@bak-ag.com ACCESSORIES Get the best results by using BAK-accessories and spare parts. Please refer to our brochures for additional information. SERVICE AND REPAIR Repairs have to be carried out exclusively by BAK authorised service centres. -
Page 10: Transport - Handling - Storage
0 – 5.0 Drive m/min Max. air flow (20 °C) l/min ca. 300 mm (L x W 370x340x330 Dimensions x H) Weight with 5 m cable Conformity symbol Protection type I Other voltages on request. BAK Thermoplastic Welding Technology AG... - Page 11 EC Declaration of conformity Declaratión CE de conformidad EG – Konformitätserklärung BAK Thermoplastic Welding Technology, CH-6056 Kägiswil/Schweiz bestätigt, dass das nachfolgend bezeichnete Gerät in der von uns in Verkehr gebrachten Ausführung die Anforderungen der folgenden EG- Richtlinie(n) erfüllt. Bezeichnung des Gerätes:...
