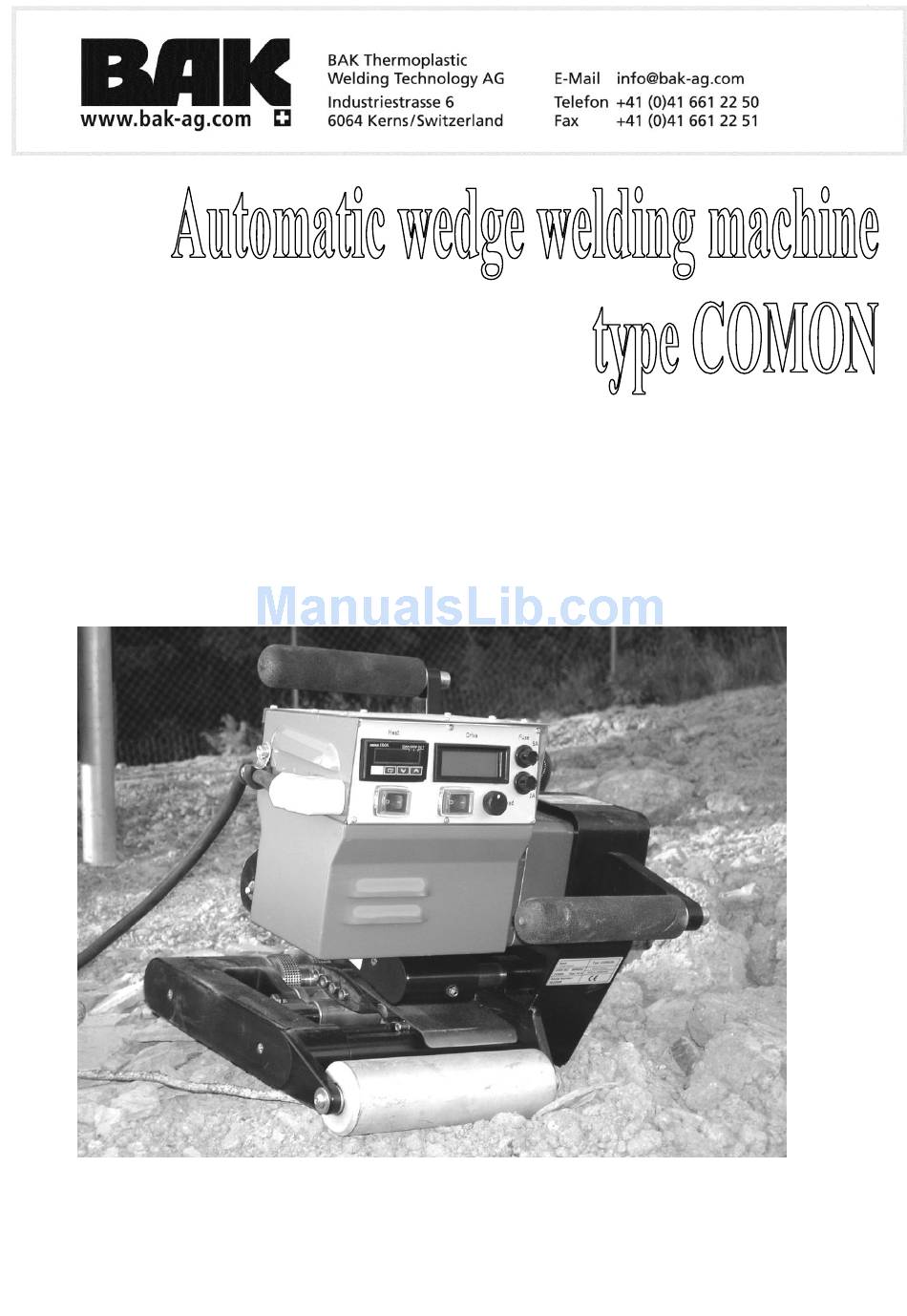

- Page 1 OPERATING MANUAL BAK Thermoplastic Welding Technology AG...
- Page 2 BAK devices may never be recon- figured and/or modified. BAK reserves the right to deny any responsibility if this is ignored. No liability can be assumed by BAK for incorrect installation and/or use as well as natural wear and tear of components (e.g.
- Page 3 Type of wedge In standard version the COMON is supplied with a copper wedge for wel- ding of PE and PP, on request it is possible to get it with a universal cera- mic wedge for all different kinds of material.
- Page 4 Set the desired pressure by rotating the adjustment screw, to every single step of rotation you will set 90N of pressure on seam. Then lock the desired pressure with the locking screw. If the maximum welding pressure (1400 N) is exceeded, mechanical damages may occur. BAK Thermoplastic Welding Technology AG...
- Page 5 Drive / adjust the direction of the welding machine with the guide handle so that the mini- mum overlap is guaranteed 1cm before the end of the welded seam release the pressure lever, pull back the hot wedge and switch off the motor with the switch. BAK Thermoplastic Welding Technology AG...
- Page 6 If you are not using the machine for a longer period of time, switch of the heat. Otherwise, some parts can be heated up to more than 70°C. Never cool down the wedge with water, cooling spray, etc. BAK Thermoplastic Welding Technology AG...
- Page 7 ASSISTANCE AND SUPPORT The BAK group and its authorised service centres offer free support and assistance in the area of applications technology. Our specialists will be pleased to help you. Customer service and orders: BAK Thermoplastic Welding Technology AG Industriestrasse 6...
- Page 8 Voltage Frequency 50 / 60 Power consumption 1700 20 – 420 Temperature °C 0.8 – 5.0 Drive m/min 1400 Welding pressure Weight Size LxWxH Mm (LxBxH) 460 x 300 x 330 Protection of class 1 BAK Thermoplastic Welding Technology AG...
