Alpha Antenna HexTenna Operating Manual

____________________
Model – HexTenna
Operating Manual, Version 2.1, March 6, 2019
Operation

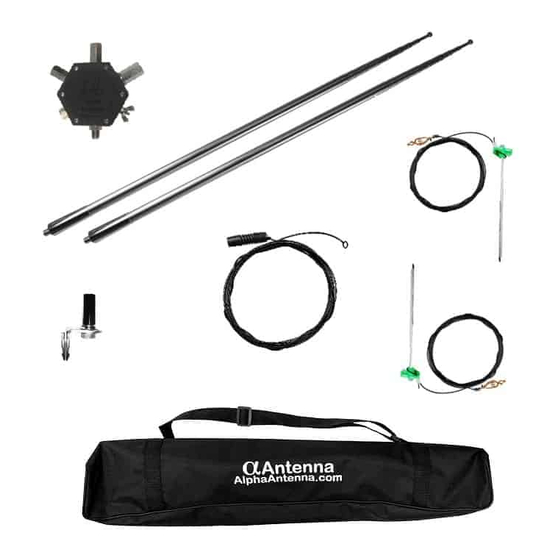

The HexTenna™ by Alpha Antenna® is a portable only full‐sized resonant UHF/VHF/HF system, which is
configurable as a HF Vertical (with optional counterpoise elements), UHF Vertical (without counterpoise), and
HF/VHF Dipole. This is also user configurable as a 6‐15M HF Delta Loop (with a user supplied jumper wire
between the tips of the dipole elements) or HF/VHF Yagi beam (by using multiple HexTenna™ systems).

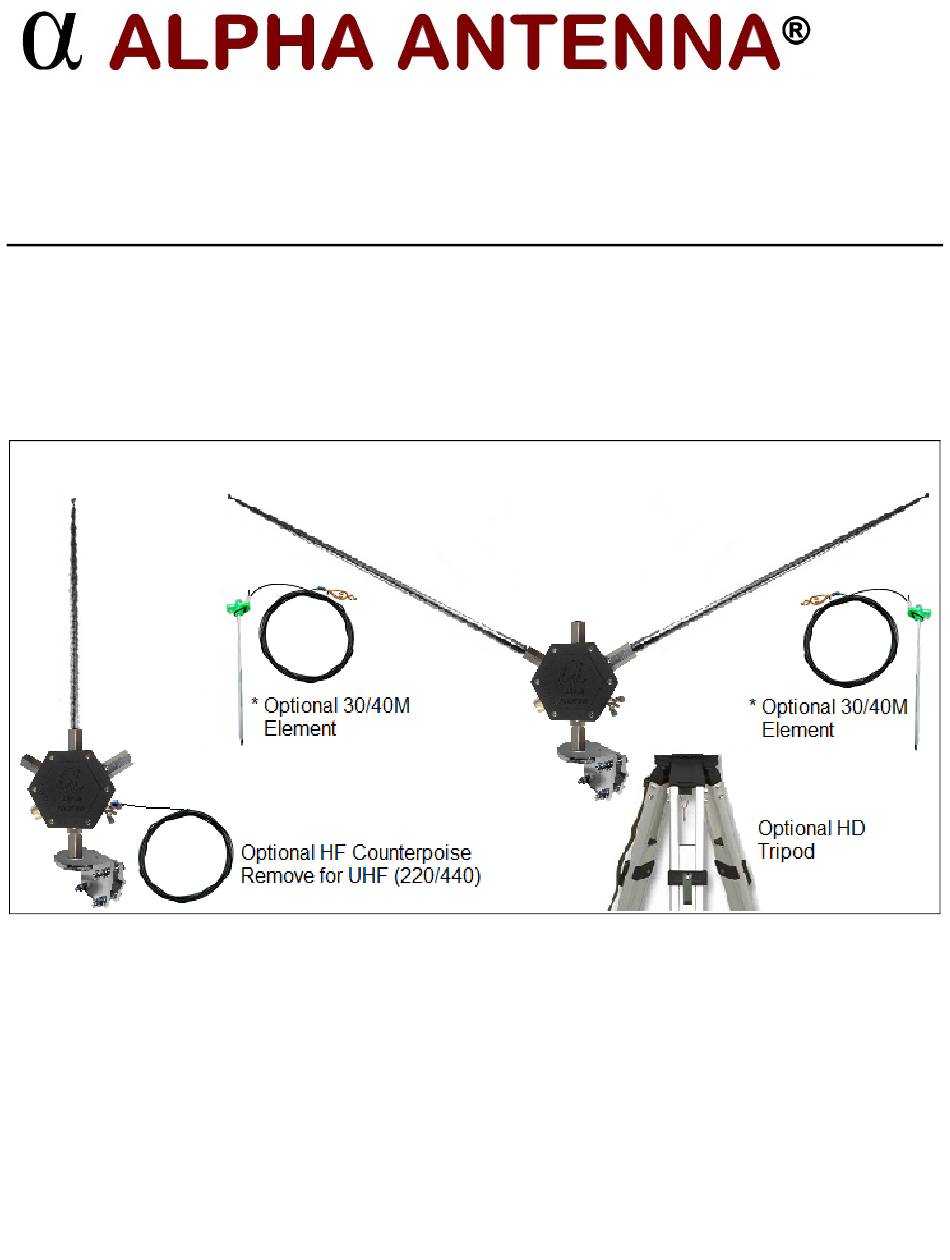

HF (10‐20M) & UHF
(220/440) Vertical
Excess RF Exposure Warning
In the United States, the Federal Communications Commission has established guidelines for human exposure
to Radio Frequency (RF) electromagnetic fields. The commission's requirements are detailed in parts 1 & 2 of
the FCC's rules and regulations {47 CFR, 1.1307(b), 1.1310, 22.1091, 2.1093}. It is the responsibility of the
owner/operator of this device to follow all applicable warnings and precautions regarding human exposure to
RF fields. Additional references: http://www.arrl.org/rf‐exposure
Support Contacts
Email: support@alphaantenna.com ‐ Phone: 1‐888‐482‐3249
WEB: www.alphaantenna.com – Videos: www.YouTube.com/AlphaAntenna
VHF (2M) and HF (6‐20M & 30/40M*) Dipole
Page 1
