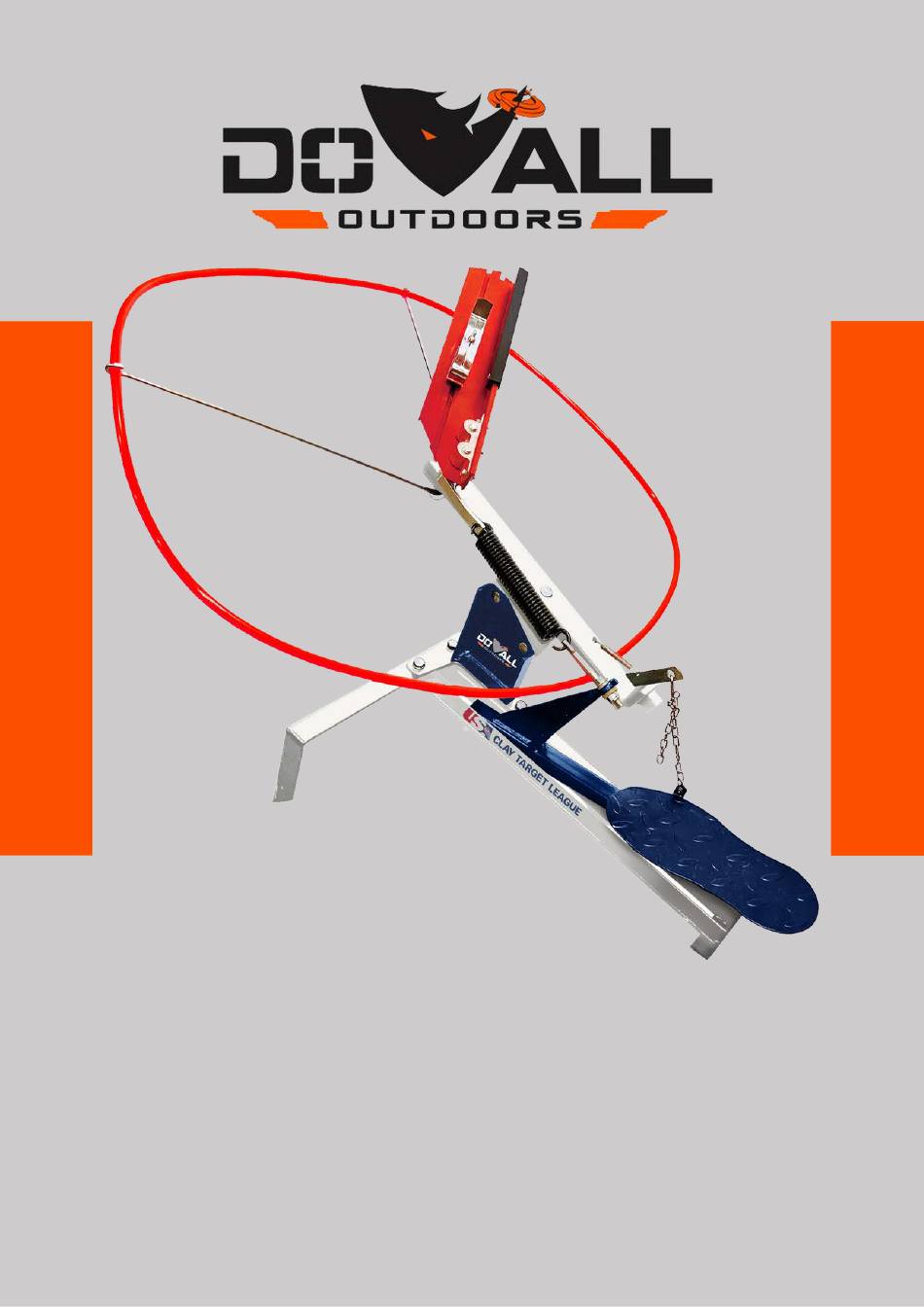

  • Page 1 FLYWAY...

  • Page 2: Included Parts

    INCLUDED PARTS Main Spring and Spade Bolt Trap Head Angle Mount Leg Cross Arm Parallel Leg Frame Base Foot Pedal Safety Ring Arms Frame Angle Mount 3 Bolts, 6 Washers Bolts, Washers, one Nut and 3 Nuts for and one Hand Knob for Frame Assembly Angle Mounts Long Bolt, Washers...
  • Page 3 STEP 1 Begin by placing the Frame Angle Mount below the Leg Cross Arm, and the open end of the Parallel Leg Frame Base below the Frame Angle Mount. Then, place one washer on each bolt, then slide through all 3 parts above, secure on the bottom with another washer, followed by a nut.
  • Page 4 STEP 2 Attach the Angle Mount to the Base Angle Mount using the 2 short bolts, with washers, one nut and one hand knob. The Hand Knob goes in the back for easy height adjustment.
  • Page 5 STEP 3 Attach the Foot Pedal to the Parallel Leg Frame Base by using the Long Bolt, Washers, and Nut. Attach one Washer to the Bolt, then push the Bolt through the front hole in the Frame, through the hole in the Front of the Foot Pedal, then through the other side of the Frame.
  • Page 6 STEP 4 Attach the Trap Head to the Angle Mount using the Large Bolt and Nut.
  • Page 7 STEP 5 Mount the Safety Ring Arms onto the threaded front tabs located on the Trap Head using the provided Allen Bolts...
  • Page 8 STEP 6 Mount the Safety Ring Studs to the Parallel Leg Frame Base, threading from the outside in on each side of the Base.
  • Page 9 STEP 7 Slide the Safety Ring through the Safety Ring Arms and feed through them to loop around the Trap Head and secure by sliding each end of the Safety Ring onto the Safety Ring Studs.
  • Page 10 STEP 8 Hook the end of the Main Spring onto the Eyelet on the Trap Head indicated above. Then, remove the plastic grommet, washer and nut from the Spade Bolt. Slide the Spade Bolt through the hole in the Foot pedal as indicated above. Then, resecure the Grommet, Washer, and tighten nut until 3-4 threads are exposed.
  • Page 11 STEP 9 Set the Clip on the end of the Foot Pedal’s Chain to desired length. Then attach clip to the top of the Trigger on the Trap Head.
  • Page 12 THANK YOU ONCE THE MAIN SPRING IS INSTALLED, THE TRAP IS NOW LIVE AND CAN GO OFF IF LEFT IN THE COCKED POSITION. PLEASE USE EXTREME CAUTION AND ALWAYS REMOVE SPRING WHEN TRANSPORTING, ADJUSTING, OR STORING THE TRAP.

  • Page 13: Operation

    OPERATION 1. Position trap in desired location suitable for shooting trap. ALWAYS MAKE SURE YOU POINT THE TRAP IN A SAFE DIRECTION AWAY FROM BYSTANDERS, TREES, OR ANIMALS WITH AT LEAST A 400 METER OPEN FIELD/SHOT FALL ZONE. 2. Once trap has been inspected to ensure it's in good working order, place ground stake through the hole in the rear of the trap.

  • Page 14: Troubleshooting

    TROUBLESHOOTING Clay pigeons only throwing a short distance - Make sure the Trap is firmly secured and won’t move or bounce. Tighten the nut on the spring which will increase arm swing speed. 2. Clay pigeons breaking during use - Clay pigeon clamp is too close to the trigger.
