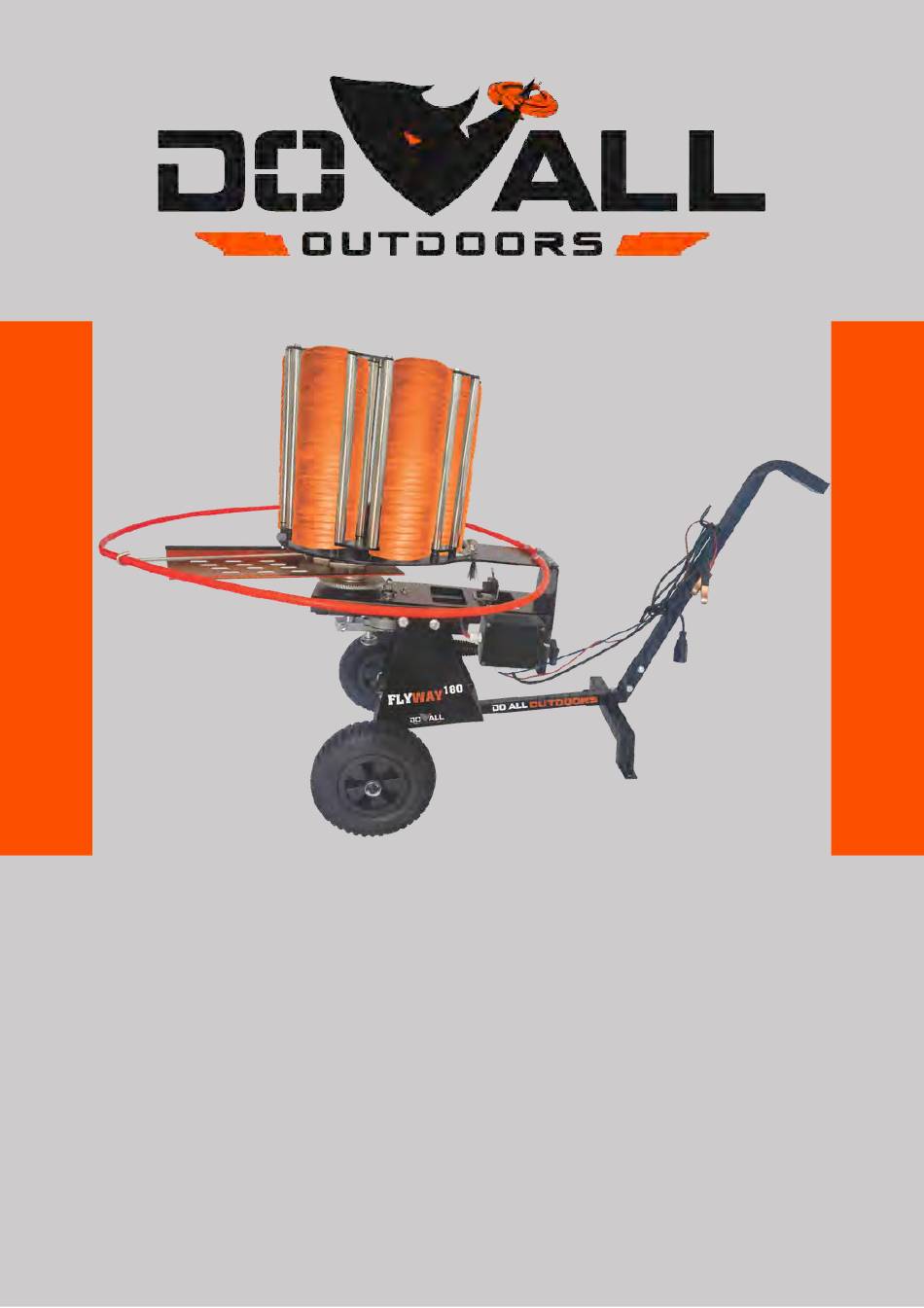

  • Page 1 FLYWAY...

  • Page 2: Included Parts

    INCLUDED PARTS Cart Handle Assembly With (2) Long & (1) Medium 14mm Hex Bolts with (6) Washers and (3) Nuts Clay Stack Turret Assembly with (12) male/female stacker poles, (12) female/female stacker poles, and (24) bolts (these come fastened to the poles). Axle and (2) Wheels with (4) Washers and (2) “C”...
  • Page 3 Medium Long STEP 1 Prior to assembly, please be sure that all zip ties, cardboard, styrofoam, and bubble wrap are removed from the unit. Using a 14MM socket for the bolts and a 13MM for the nuts, assemble the cart handle using the 2 long and 1 medium length bolts.
  • Page 4 Rear Long Short Front of Trap STEP 2 4 (Axle) 5 (Trap Base) 3 (from Step 1) Using a 14MM socket for the bolts and 13MM for the nuts, attach the Trap Base to the Axle and Cart Handle using the 2 long and 2 short length 14mm bolts. (In order: Bolt, washer, Trap Base, axle/cart handle, washer, and secure with nut.)
  • Page 5 STEP 3 Slide a Washer, then a Wheel, then another Washer onto one side of the axle, Secure with a “C” clip. Repeat this for the second side.
  • Page 6 Trap Head Rear Front Trap Base STEP 4 Bolts and Plastic Washers (Circled in white, stacker poles and safety ring not yet installed) Using a 17MM Socket for the Bolts and a 13MM for the Nuts, secure the Trap Head (9) to the Trap Base (8) using the (4) provided bolts and (4) plastic Washers.
  • Page 7 Figure 1 Figure 2 STEP 5 Hook the Safety Ring onto the Safety Ring Arms (top of Figure 1), then secure to the rear of the Trap Head by loosening the two bolts (bottom of Figure 1) slightly, then push the ends of the ring under the clamps and resecure the 2 bolts.
  • Page 8 Rear of Trap Head Underneath Trap Head Figure 1 Figure 2 STEP 6 Hook the Main Spring under the Trap Head Pivot. (Figure 1) Push the Spade Bolt through the hole in the rear of the Trap, then secure with the provided tension knob until you feel tension on the spring.

  • Page 9: Warranty And Customer Service

    THANK YOU ONCE THE MAIN SPRING IS INSTALLED, THE TRAP IS NOW LIVE AND CAN GO OFF IF LEFT IN THE COCKED POSITION. PLEASE USE EXTREME CAUTION AND ALWAYS REMOVE SPRING WHEN TRANSPORTING, ADJUSTING, OR STORING THE TRAP. Warranty & Customer Service Register your product online at www.doalloutdoors.com.

  • Page 10: Troubleshooting

    Troubleshooting ***ALWAYS REMOVE MAIN SPRING PRIOR TO TROUBLESHOOTING*** MACHINE NOT TURNING ON 1. CHECK BATTERY CONNECTION. THE MACHINE DRAWS 16 AMPS TO WORK PROPERLY. WE RECOMMEND A DEEP CYCLE BATTERY WITH A MINIMUM OF 675 COLD CRANKING AMPS. 2. CHECK THE 15A AUTOMOTIVE BLADE FUSE IN THE REAR OF THE TRAP HEAD. REMOVE THE COVER AND PULL THE FUSE OUT TO INSPECT.
  • Page 11 NOTES...
