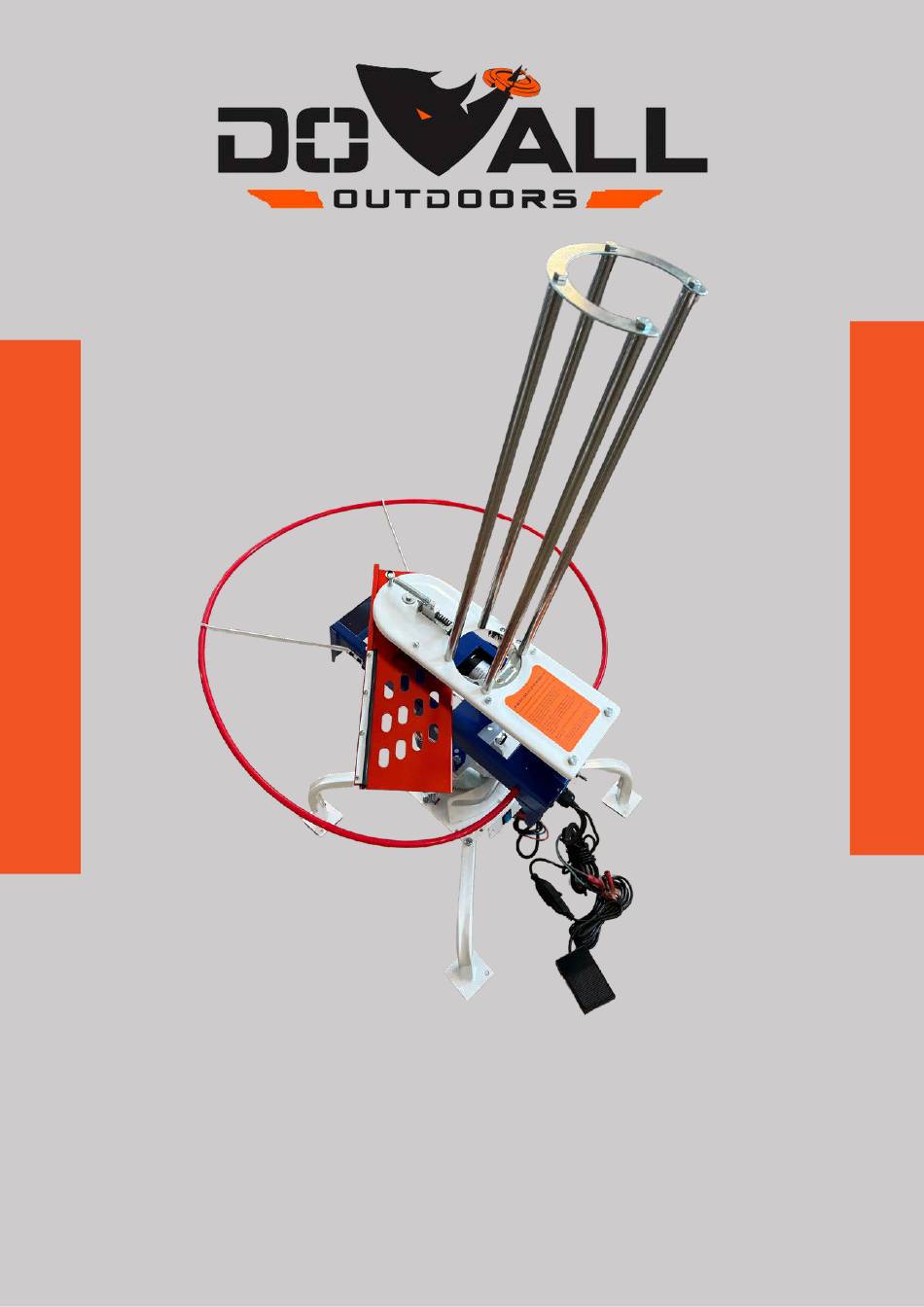

USA Clay Auto Trap
MODEL: USAAT20

Advertisement

loading
Need help?

Need help?

Do you have a question about the USAAT20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DoAll USAAT20

Summary of Contents for DoAll USAAT20

  • Page 1 USA Clay Auto Trap MODEL: USAAT20...

  • Page 2: Included Parts

    INCLUDED PARTS (4) Bolts, (8) washers, (4) Trap Head Base with (4) Legs and (8) M8X40MM hex Wobbler spacers and (4) nuts to M10X15 Bolts and (4) plastic bolts with (16) washers and (8) connect top of Wobbler to the washers to connect Trap nuts Trap Head Base...
  • Page 3 NOTES...
  • Page 4 STEP 1 Using a 14MM socket for the head and 13MM for the nut, attach the Wobbler to the Legs using the (8) M8X40MM hex bolts, washers and nuts. (In order: Bolt, washer, Wobbler, leg, washer, nut.)
  • Page 5 STEP 2 Using a 14MM socket for the head and 13MM for the nut, attach the Trap Head Base to the Wobbler using the supplied bolts, washers, spacers, and nuts. (In order: Bolt, washer, trap head, spacer, Wobbler, washer, nut.) Be sure that the spacers are set between the top of the Wobbler and the Trap Base, and that the indented side of the Trap Base is facing the guide plate on the...
  • Page 6 Front STEP 3 Using a 17MM socket, attach the Trap Head to the Trap Head Base using the (4) M10X15MM bolts and (4) plastic washers. (In order: Bolt, trap base, washer, trap head)
  • Page 7 STEP 4 Using a 4MM Allen Wrench, install the Safety Ring Arms to the front of the Trap Head using the (4) M6X7 Allen Screws.
  • Page 8 STEP 5 Screw the (2) M8X10 Studs into the threaded holes towards the rear of the Trap Head.
  • Page 9 STEP 6 Slide the Safety Ring through the Safety Ring arms and connect to each of the M8X10 Studs towards the rear of the Trap.
  • Page 10 STEP 7 Remove the (4) rubber caps on top of the Trap Head, then slide each of the Stacker Poles onto the now exposed mounts. Then, secure the Horseshoe to the top of the Stacker Poles using the (4) provided bolts and an 11MM socket, with the opening facing the rear of the trap.
  • Page 11 Eyelet Spade bolt Outer Nut STEP 8 Manually rotate the Throwing Arm counterclockwise to the 12 o’clock position as seen above. Then, hook one end of the Main Spring to the silver eyelet on the front end of the Trap. Hook the opposite end to the Spade Bolt.
  • Page 12 THANK YOU ONCE THE MAIN SPRING IS INSTALLED, THE TRAP IS NOW LIVE AND CAN GO OFF IF LEFT IN THE COCKED POSITION. PLEASE USE EXTREME CAUTION AND ALWAYS REMOVE SPRING WHEN TRANSPORTING, ADJUSTING, OR STORING THE TRAP.

  • Page 13: Operation

    Operation 1. Make sure deep cycle battery (not included) is fully charged. Before clamping wobbler and trap alligator clips to battery, make sure the toggle switch on the trap is set to off. **NEVER CARRY TRAP BY THROWING ARM - THIS CAN BEND AND AFFECT PERFORMANCE! 2.

  • Page 14: Troubleshooting

    Troubleshooting ***ALWAYS REMOVE MAIN SPRING PRIOR TO TROUBLESHOOTING*** MACHINE NOT TURNING ON 1. CHECK BATTERY CONNECTION. THE MACHINE DRAWS 16 AMPS TO WORK PROPERLY. WE RECOMMEND A DEEP CYCLE BATTERY WITH A MINIMUM OF 675 COLD CRANKING AMPS. 2. CHECK THE 15A AUTOMOTIVE BLADE FUSE IN THE REAR OF THE TRAP HEAD. REMOVE THE COVER AND PULL THE FUSE OUT TO INSPECT.

  • Page 15: Warranty And Customer Service

    LIMIT SWITCH FUSE OTHER 1. IF THE CLAY IS FLYING WITH A WOBBLE, THE THROWING ARM IS BENT AND WILL NEED TO BE BENT BACK OR REPLACED. NEVER CARRY THE TRAP BY THE ARM. 2. IF THE MAIN GEAR AND MOTOR ARE MOVING BUT THE THROWING ARM ISN'T THEN THERE MAY BE AN ISSUE WITH THE CLUTCH ASSEMBLY.
