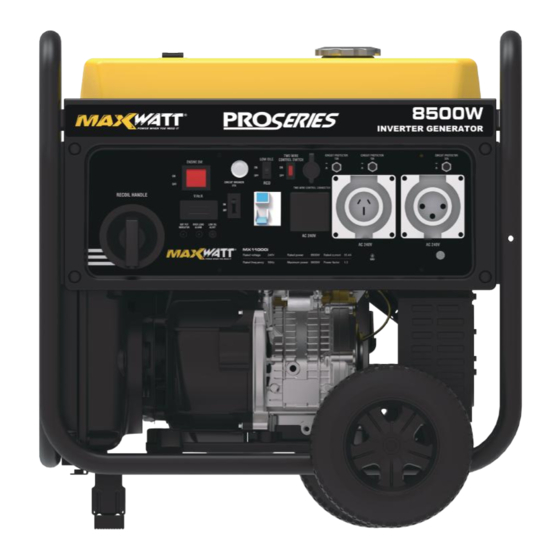

maxwatt MX11000i Operator's Manual

Inverter generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MX11000i
INVERTER GENERATOR OPERATOR'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX11000i and is the answer not in the manual?

Questions and answers

Related Manuals for maxwatt MX11000i

Summary of Contents for maxwatt MX11000i

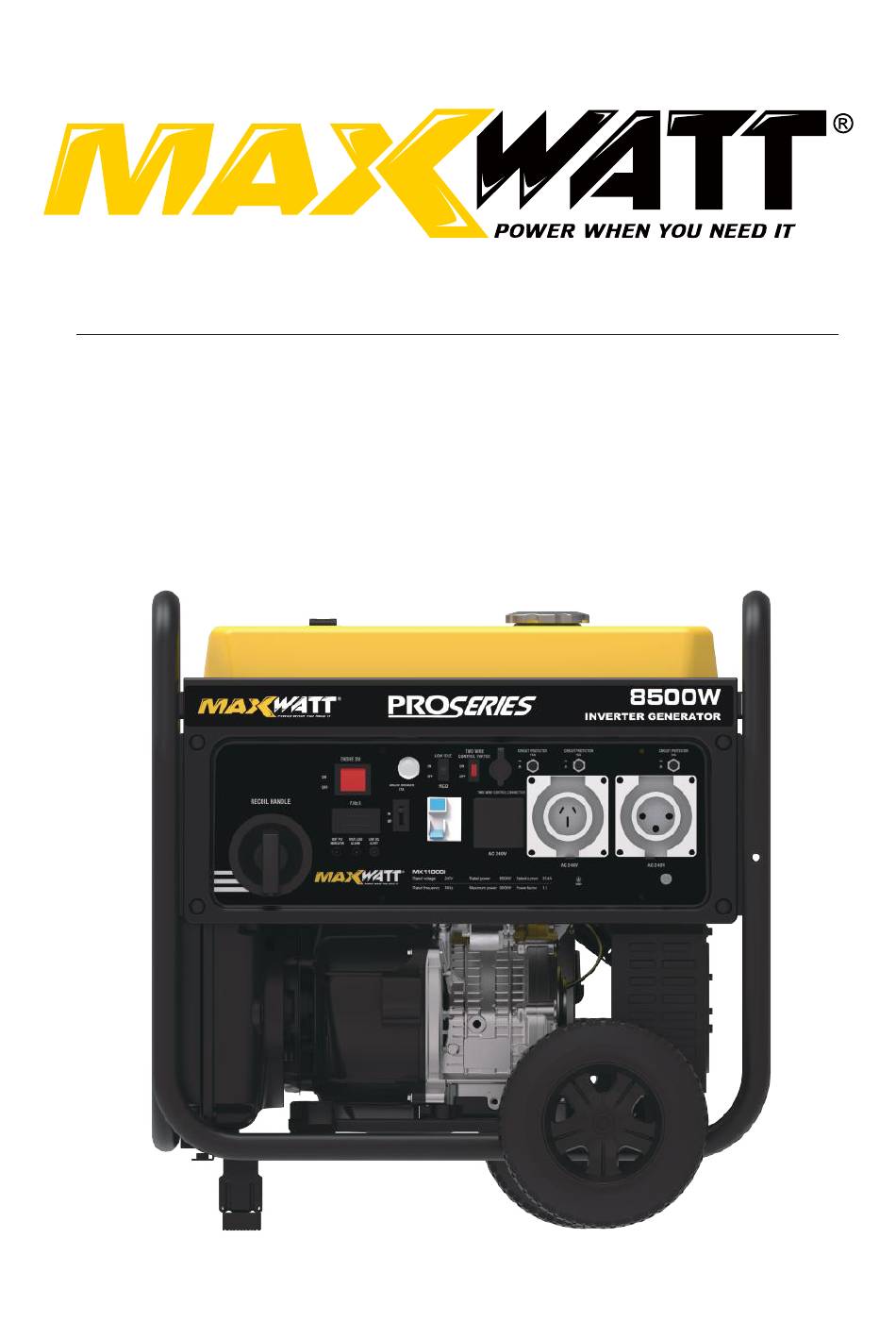

  • Page 1 MX11000i INVERTER GENERATOR OPERATOR’S MANUAL...
  • Page 3 Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust fumes contains carbon monoxide. This is a poison you cannot see or smell. NEVER use inside a home or garage, Only use OUTSIDE and far away EVEN IF doors and windows are open. from windows, doors and vents.

  • Page 4: Table Of Contents

    Starting the Generator ..............19 Shutting Off the Generator .............21 Maintenance .................23 Transportation & Storage ...............28 Troubleshooting Guide ..............29 ............... Warranty Information KEY SPECIFICATIONS Model NO. MX11000i Starting Wattage 9000W Running Wattage 8500W Phase Single Frequency 50Hz Voltage AC 240V Amperage 35.4A...

  • Page 5: Introduction

    SAFETY INFORMATION WARNING: Before operating the generator, make sure to read all safety warnings and all instruc- tions. Failure to follow the warnings and instructions may result in electric shock, fire or serious injury. SAFETY INTRODUCTION Safety is a combination of common sense, staying alert, and knowing how your tool works. This manual contains important information regarding the generator’s potential safety concerns, as well as preparation, operation, and maintenance instructions.

  • Page 6: Generator Safety Warnings

    GENERATOR SAFETY WARNINGS DANGER: CARBON MONOXIDE Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust fumes contains carbon monox- ide (CO). This is a poison gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO.
  • Page 7 GENERATOR SAFETY WARNINGS WARNING: Do not let comfort or familiarity with the product replace strict adherence to product safety rules. Failure to follow the safety instructions may result in serious personal injury. OPERATING ENVIRONMENT Using a generator indoors can kill you in minutes. Only use a generator OUTSIDE and far away from win- dows, doors and vents.
  • Page 8 GENERATOR SAFETY WARNINGS GENERATOR OPERATION Only use the generator for its intended purposes. Modifying or using the generator for operations for which it was not designed may cause hazards and personal injury. Do not touch bare wires or receptacles (outlets). Do not exceed the wattage capacity of the generator by plugging in more electrical devices than the unit can handle.

  • Page 9: Know Your Generator

    KNOW YOUR GENERATOR GENERATOR FUEL CAP RECOIL STARTER CONTROL PANEL MUFFLER WHEEL FOOT...
  • Page 10 KNOW YOUR GENERATOR CONTROL PANEL 1.ENGINE SWITCH 11.GROUNDING NUT 2.V.HZ.H DISPLAY 12.AC 240V SOCKET 3.ENGINE-START/STOP SWITCH 13.AC 240V SOCKET 4.LOW IDLE 14.RCD 15.CIRCUIT BREAKER 37A 5.TWO WIRE CONTROL SWITCH 6.TWO WIRE CONTROL CONNECTOR 16.LOW OIL ALARM 7.CIRCUIT PROTECTOR 15A 17.OVER LOAD ALARM 8.CIRCUIT PROTECTOR 15A 18.OUTPUT INDICATOR 19.RECOIL STARTER...
  • Page 11 KNOW YOUR GENERATOR LOW IDLE This generator is equipped with an LOW IDLE Switch Engaging this switch allows the system to regulate the engine speed and automatically adjust its fuel consumption to match the required load. When the electrical load changes, the generator engine will automatically speed up and slow down as needed.
  • Page 12 KNOW YOUR GENERATOR GENERATOR CAPACITY Make sure the generator can supply enough running (rated) and starting (max.) watts for the items you will power at the same time. Follow these simple steps. Select the items you will power at the same time. Total the running (rated) watts of these items.
  • Page 13 KNOW YOUR GENERATOR The chart below serves as a reference for the estimated wattage requirements of common electrical de- vices. However, do not solely rely on this chart - all electronics and appliances are built differently. Always check the wattage listed on the electrical device before consulting this chart. Tool or Appliance Rated (Running) Watts Surge (Starting) Watts...

  • Page 14: Generator Preparation

    GENERATOR PREPARATION The following section describes the necessary steps to prepare the generator for use. Failure to perform these steps properly can damage the generator or shorten its life. STEP 1 - ADD/CHECK OIL The generator is shipped without oil. User must add the proper amount of oil before operating the generator for the first time.
  • Page 15 GENERATOR PREPARATION To check oil level (before every subsequent start): Place the generator on a level surface. Make sure the engine is OFF before adding or checking oil. 1. Open the oil access cover. Remove and wipe the dipstick with a clean rag.
  • Page 16 GENERATOR PREPARATION To add petrol, follow these steps: 1. Make sure the generator is shut OFF and on a level surface. Unscrew the fuel cap and set it aside. The fuel cap may be tight and hard to unscrew. Fuel Cap 2.
  • Page 17 GENERATOR PREPARATION 3. Remove the cover from the battery's negative (-) terminal and connect the black cable to the battery's negative (-) ter- minal The generator's positive pole has already been connected. Double check to confirm that the connection is secure. 4.

  • Page 18: Generator Set Up

    GENERATOR SET UP GENERATOR SET UP PLANNING THE POWER LOAD Plan your power load so that you do not exceed the generator's rate capacity. To calculate the running and start wattage requirements for the devices you will be powering, follow the steps on page 10. SET UP THE PORTABLE POWER SOURCE This generator is designed to provide up to its max power (in watts) of electrical power.
  • Page 19 GENERATOR SET UP compliance with all applicable building and electrical codes and in accordance with the guidelines supplied by your power company. There may be Federal or State Occupational Safety and Health Administration (OSHA) regulations, local codes or ordinances that apply to the intended use of the generator, Please consult a qualified electrician, electrical inspection or the local agency having jurisdiction.
  • Page 20 Use of damaged electric cords can cause electric shock or fire. Note: lf an extension cords becomes hot to the touch, it is overloaded or damaged and must be replaced. Maxwatt is NOT responsible for damage or injury resulting from customer use of inadequate extension cords.

  • Page 21: Starting The Generator

    STARTING THE GENERATOR Before starting the generator, make sure you have read and performed the steps in the “Generator Prepara- tion” section of this manual. If you are unsure about how to perform any of the steps in this manual Please contact your authorized service center DANGER: CARBON MONOXIDE Using a generator indoors CAN KILL YOU IN MINUTES.
  • Page 22 STARTING YOUR GENERATOR Before starting the generator: Verify that the generator is outside on a dry, level surface. Allow at least 1M of clearance on all sides of the generator. To maximize safety, check that the generator is properly grounded (see “GROUND THE GENERATOR”). Check there is sufficient level of oil in the crankcase.

  • Page 23: Shutting Off The Generator

    STARTING YOUR GENERATOR Automatic Electric Starting of the MX11000iS by 2-Wire Auto Start. 1. Verify the battery is properly installed and both battery cables are attached. 2. If the generator is left in non-operating standby whilst in auto-start mode for an extended period or it starts and stops frequently with a short operating time, the battery may become excessively discharged and unable to automatically start the generator.
  • Page 24 SHUTTING OFF THE GENERATOR CAUTION: Unplugging running devices can cause damage to the generator. Never stop the engine with electrical devices connected and running. 1. Turn off all electrical devices prior to unplugging Remote Stop One-Button STOP them from the generator. Unplugging running devices can cause damage to the generator.

  • Page 25: Maintenance

    MAINTENANCE RECOMMENDED MAINTENANCE SCHEDULE Proper routine maintenance of the generator will help prolong the life of the machine. Please perform maintenance checks and operations according to the Maintenance Schedule. If there are any questions about the maintenance procedures listed in this manual, Please contact your authorized service center. WARNING: Never perform maintenance operations while the generator is running.
  • Page 26 MAINTENANCE Air Filter Maintenance 1. Remove the maintenance cover plate on the side of the unit. 2. Remove knob and air filter cover plate . 3. Remove the filter element. 4. If the filter element is dirty, wash it with warm soap and clean water and dry it.
  • Page 27 MAINTENANCE NOTE: This product is equipped with a spark arrestor that has been evaluated by the USDA Forest Service; however, product users must comply with Federal, State, and local fire prevention regulations. Check . with appropriate authorities. Contact customer service or a qualified service center to purchase a replacement spark arrestor.
  • Page 28 MAINTENANCE DRAINING THE FUEL TANK / CARBURETOR To help prevent gum deposits in the fuel system, drain the fuel from the tank and carburetor before storing. 1. With the help of another person, place the generator on an elevated platform such as a table or desk. 2.
  • Page 29 MAINTENANCE DRAINING/CHANGING OIL Change the oil according to the Recommended Maintenance Schedule. Change the oil MORE OFTEN if operating under heavy load or high ambient temperatures. It is also necessary to drain the oil from the crankcase if it has become contaminated with water or dirt. Changing the oil when the engine is warm allows for complete drainage.

  • Page 30: Transportation & Storage

    TRANSPORTATION & STORAGE TRANSPORTING THE GENERATOR To prevent fuel spillage when transporting, be sure to perform the following: 1. Tighten the fuel cap and turn the vacuum relief valve to “OFF”. 2. Set the engine switch to “OFF”. 3. Drain the fuel tank if possible. 4.

  • Page 31: Troubleshooting Guide

    TROUBLESHOOTING GUIDE ENGINE WILL NOT START Possible Cause Solution Battery not charged. Charge battery. Engine switch is in the OFF position. Turn engine switch to the ON position. No fuel. Fill fuel tank. Stale or water in Drain entire system and refill with fresh fuel. Engine oil level is low.
  • Page 40 32082-06724-00...
