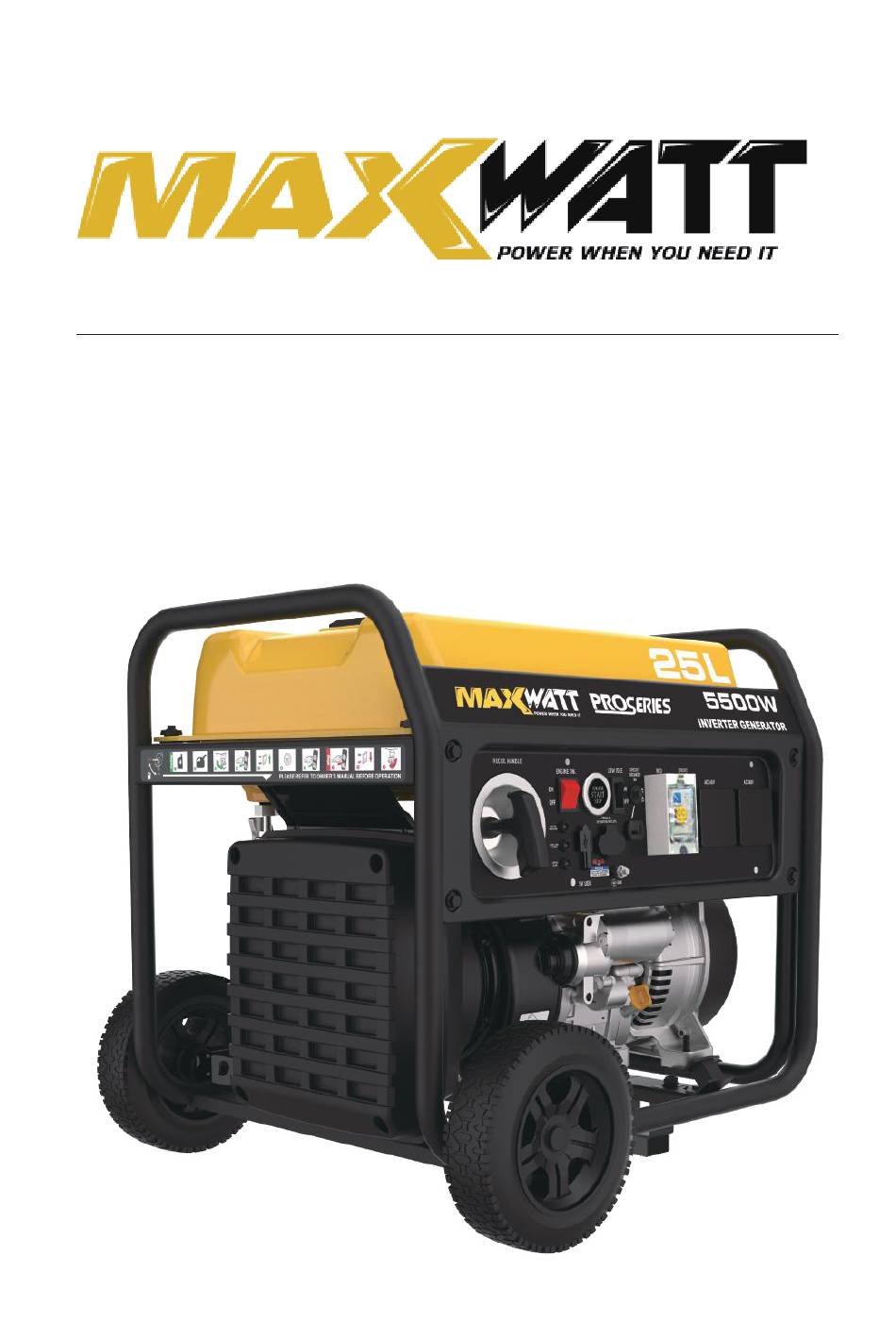

  • Page 1 MX6500i INVERTER GENERATOR OPERATOR’S MANUAL...
  • Page 2 Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell. NEVER use inside a home or garage, Only use OUTSIDE and far away EVEN IF doors and windows are open. from windows, doors and vents.

  • Page 3: Table Of Contents

    Starting the Generator ..............16 Shutting Off the Generator .............18 Maintenance .................19 Transportation & Storage ...............24 Troubleshooting Guide ..............25 ............... Warranty Information KEY SPECIFICATIONS Model NO. MX6500i Starting Wattage 5500W Running Wattage 5000W Phase Single Frequency 50Hz Voltage AC 240V Amperage 20.8A...

  • Page 4: Introduction

    SAFETY INFORMATION WARNING: Before operating the generator, make sure to read all safety warnings and all instruc- tions. Failure to follow the warnings and instructions may result in electric shock, fire or serious injury. SAFETY INTRODUCTION Safety is a combination of common sense, staying alert, and knowing how your tool works. This manual contains important information regarding the generator’s potential safety concerns, as well as preparation, operation, and maintenance instructions.

  • Page 5: Generator Safety Warnings

    GENERATOR SAFETY WARNINGS DANGER: CARBON MONOXIDE Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monox- ide (CO). This is a poison gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO.
  • Page 6 GENERATOR SAFETY WARNINGS WARNING: Do not let comfort or familiarity with the product replace strict adherence to product safety rules. Failure to follow the safety instructions may result in serious personal injury. OPERATING ENVIRONMENT Using a generator indoors can kill you in minutes. Only use a generator OUTSIDE and far away from win- dows, doors and vents.
  • Page 7 GENERATOR SAFETY WARNINGS GENERATOR OPERATION Only use the generator for its intended purposes. Modifying or using the generator for operations for which it was not designed may cause hazards and personal injury. Do not touch bare wires or receptacles (outlets). Do not exceed the wattage capacity of the generator by plugging in more electrical devices than the unit can handle.

  • Page 8: Know Your Generator

    KNOW YOUR GENERATOR GENERATOR Control Panel Recoil Starter Oil hole Wheel Foot Muffler...
  • Page 9 KNOW YOUR GENERATOR CONTROL PANEL RECOIL HANDLE LOW IDLE CIRCUIT ENGINE SW. BREAKER AC240V AC240V DAIMAO PARALLEL OPERATION OUTLETS DC 12V 5V USB 1.Recoil Handle 8.AC Receptacles 2.Engine Switch 9.AC Circuit Breaker 3.For Button Start/Stop 10.DC 12V 4.Low Idle 11.Grounding Nut 5.DC Circuit Breaker 12.Parallel Operation Outlets 13.DC 5V...
  • Page 10 KNOW YOUR GENERATOR LOW IDLE This generator is equipped with an LOW IDLE Switch Engaging this switch allows the system to regulate the engine speed and automatically adjust its fuel consumption to match the required load. When the electrical load changes, the generator engine will automatically speed up and slow down as needed.
  • Page 11 KNOW YOUR GENERATOR GENERATOR CAPACITY Make sure the generator can supply enough running (rated) and starting (max.) watts for the items you will power at the same time. Follow these simple steps. Select the items you will power at the same time. Total the running (rated) watts of these items.
  • Page 12 KNOW YOUR GENERATOR The chart below serves as a reference for the estimated wattage requirements of common electrical de- vices. However, do not solely rely on this chart - all electronics and appliances are built differently. Always check the wattage listed on the electrical device before consulting this chart. Tool or Appliance Rated (Running) Watts Surge (Starting) Watts...

  • Page 13: Generator Preparation

    GENERATOR PREPARATION The following section describes the necessary steps to prepare the generator for use. Failure to perform these steps properly can damage the generator or shorten its life. STEP 1 - ADD/CHECK OIL The generator is shipped without oil. User must add the proper amount of oil before operating the generator for the first time.
  • Page 14 GENERATOR PREPARATION To check oil level (before every subsequent start): Place the generator on a level surface. Make sure the engine is OFF before adding or checking oil. 1. Open the oil access cover. Remove and wipe the dipstick with a clean rag.
  • Page 15 GENERATOR PREPARATION To add petrol, follow these steps: Fuel Cap 1. Make sure the generator is shut OFF and on a level surface. Unscrew the fuel cap and set it aside. The fuel cap may be tight and hard to unscrew. 2.
  • Page 16 GENERATOR PREPARATION 3. Remove the cover from the battery's negative (-) terminal and connect the black cable to the battery's negative (-) ter- minal The generator's positive pole has already been connected. Double check to confirm that the connection is secure. 4.

  • Page 17: Starting The Generator

    STARTING THE GENERATOR Before starting the generator, make sure you have read and performed the steps in the “Generator Prepara- tion” section of this manual. If you are unsure about how to perform any of the steps in this manual Please contact your authorized service center DANGER: CARBON MONOXIDE Using a generator indoors CAN KILL YOU IN MINUTES.
  • Page 18 STARTING YOUR GENERATOR Before starting the generator: Verify that the generator is outside on a dry, level surface. Allow at least 1M of clearance on all sides of the generator. To maximize safety, check that the generator is properly grounded (see “GROUND THE GENERATOR”). Check there is sufficient level of oil in the crankcase.

  • Page 19: Shutting Off The Generator

    SHUTTING OFF THE GENERATOR CAUTION: Unplugging running devices can cause damage to the generator. Never stop the engine with electrical devices connected and running. 1. Turn o all electrical devices prior to unplugging them from the generator. Unplugging running devices can cause damage to the generator. 2.

  • Page 20: Maintenance

    MAINTENANCE RECOMMENDED MAINTENANCE SCHEDULE Proper routine maintenance of the generator will help prolong the life of the machine. Please perform maintenance checks and operations according to the Maintenance Schedule. If there are any questions about the maintenance procedures listed in this manual, Please contact your authorized service center. WARNING: Never perform maintenance operations while the generator is running.
  • Page 21 MAINTENANCE Air Filter Maintenance Spark Plug Maintenance 1. Remove the spark plug cable from the spark plug. 2. Use a spark plug socket tool , or a 13/16 in. or 21 mm socket (not included) to remove the plug. 3. Inspect the electrode on the plug. It must be clean and not worn to produce the spark required for ignition.
  • Page 22 MAINTENANCE NOTE: This product is equipped with a spark arrestor that has been evaluated by the USDA Forest Service; however, product users must comply with Federal, State, and local fire prevention regulations. Check . with appropriate authorities. Contact customer service or a qualified service center to purchase a replacement spark arrestor.
  • Page 23 MAINTENANCE DRAINING THE FUEL TANK / CARBURETOR To help prevent gum deposits in the fuel system, drain the fuel from the tank and carburetor before storing. 1. With the help of another person, place the generator on an elevated platform such as a table or desk. 2.
  • Page 24 MAINTENANCE DRAINING/CHANGING OIL Change the oil according to the Recommended Maintenance Schedule. Change the oil MORE OFTEN if operating under heavy load or high ambient temperatures. It is also necessary to drain the oil from the crankcase if it has become contaminated with water or dirt. Changing the oil when the engine is warm allows for complete drainage.

  • Page 25: Transportation & Storage

    TRANSPORTATION & STORAGE TRANSPORTING THE GENERATOR To prevent fuel spillage when transporting, be sure to perform the following: 1. Tighten the fuel cap and turn the vacuum relief valve to “OFF”. 2. Set the engine switch to “OFF”. 3. Drain the fuel tank if possible. 4.

  • Page 26: Troubleshooting Guide

    TROUBLESHOOTING GUIDE ENGINE WILL NOT START Possible Cause Solution Battery not charged. Charge battery. Engine switch is in the OFF position. Turn engine switch to the ON position. No fuel. Fill fuel tank. Stale or water in Drain entire system and refill with fresh fuel. Engine oil level is low.

  • Page 27: Warranty Information

    WARRANTY INFORMATION 2 YEAR TRADE WARRANTY Express Warranty Subject to the exclusions set out below, we warrant that this product will be free from defects in materials or workmanship for 24 months from the date of purchase. The bene ts conferred by this warranty are in addi on to all rights and remedies which you may be en tled to under the Australian Consumer Law and any other statutory rights you may have under other applicable laws.
  • Page 28 WARRANTY PROCEDURES: • Consult the "trouble shoo ng"guide supplied and follow ALL check points. STEP 1 • Contact Maxwa Power Products for technical assistance prior to booking your generator in for repairs. STEP 2 • Take the generator and your "proof of purchase"either to the store you purchased the generator from, or to the nearest accredited STEP 3 service agent OR alterna vely contact us on www.maxwa .com.au.
  • Page 29 BELOW IS A LIST OF GENERATORS THAT ARE COVERED UNDER THIS WARRANTY: MODELS WARRANTY PERIOD WARRANTY PERIOD PRIVATE/RESIDENTIAL COMMERCIAL/RENTAL MAXWATT 24 months or 500 running 24 months or 300 running ALL MODELS hours which ever come rst hours which ever come rst EXCLUSIONS TO THIS LIMITED WARRANTY INCLUDE: Neglect in the periodic maintenance as speci ed in the owner’s manual.
  • Page 30 Damage to any electronic and or electrical appliances connected to the generator. BELOW IS A TABLE OF PARTS THAT ARE LIMITED BY THIS WARRANTY PART OUT OF BOX FAILURE < 20 RUNNING HOURS STATOR ROTOR CIRCUIT BREAKER IGNITION COIL SPARK PLUG BATTERY WHEELS AND AXLE HANDLES...
  • Page 31 If there is a major failure with the item, you may choose a refund, exchange or repair. If the failure is minor, we will repair the item (or, at our discre on, we may replace the item) within a reasonable me. Where an item is damaged through misuse or abnormal use, the manufacturer cannot provide a refund, exchange or repair.
