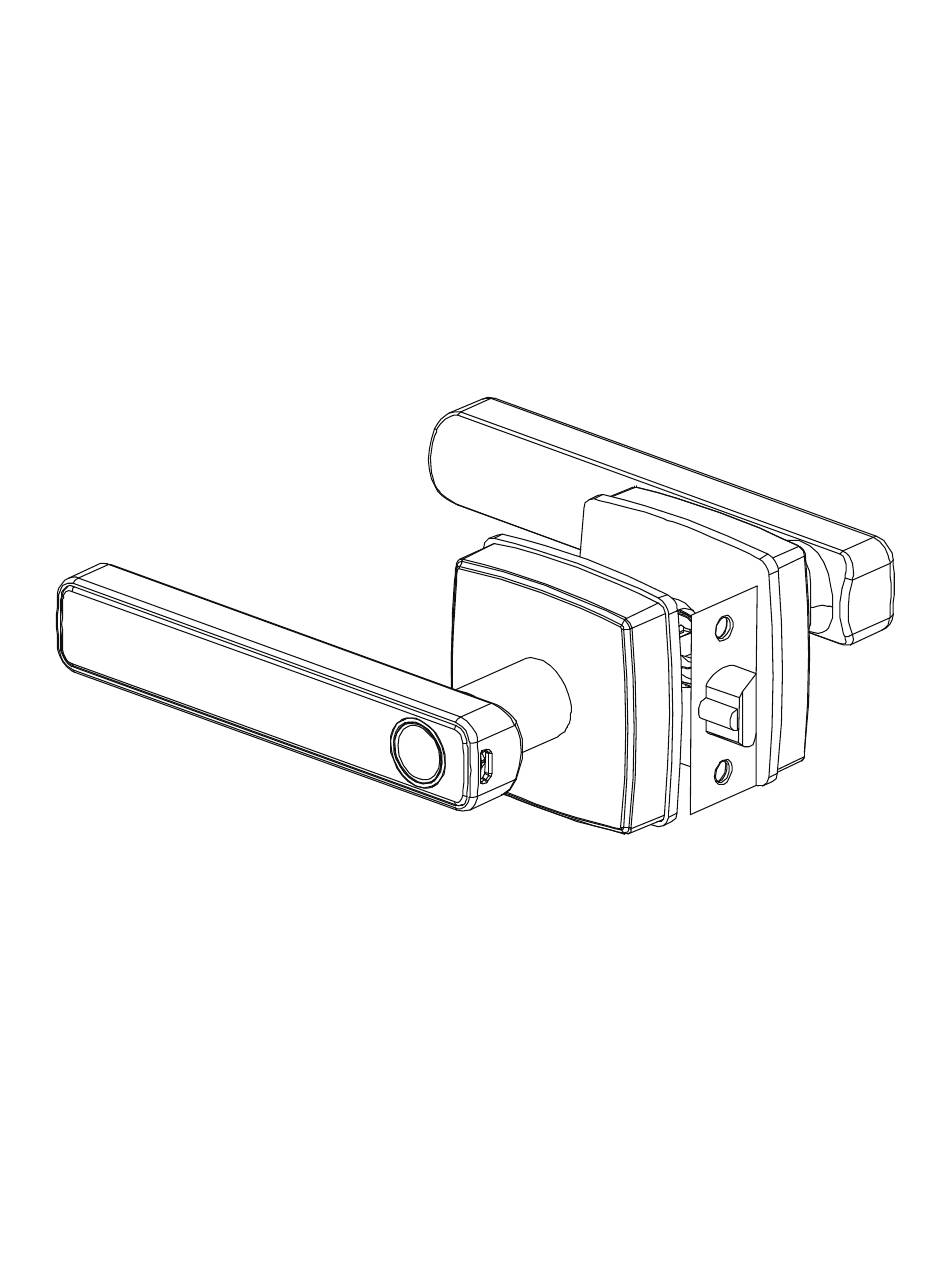

USER MANUAL
N1TY Tuya Smart Lock
Note：
1. This lock is equipped with mechanical keys for manual unlocking. Remove mechanical
keys from the package and keep them in a safe place and always have access to them.
2. To power on the lock, 4 x AAA Alkaline batteries (not included) are required.
3. This lock is used outdoors and indoors. The waterproof rating: IP45
4. Keep your fingers clean when using this lock.
Please read this manual before operating the smart lock, and keep it for further reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the N1TY and is the answer not in the manual?

Questions and answers

Related Manuals for TUYA N1TY

Summary of Contents for TUYA N1TY

  • Page 1 USER MANUAL N1TY Tuya Smart Lock Note： 1. This lock is equipped with mechanical keys for manual unlocking. Remove mechanical keys from the package and keep them in a safe place and always have access to them. 2. To power on the lock, 4 x AAA Alkaline batteries (not included) are required.
  • Page 2 This smart lock uses the latest technology to make your life easier. It can be operated via bluetooth using the mobile App, it's suited for Homes, Apartments, Offices Airbnbs, Motels, Holiday Homes, etc. Specifications Material Zinc Alloy Model NO. N1TY Code Length 6~10 digits Door thickness 38mm-50mm Working Temperature -20°C~70°C...
  • Page 3 40mm 30mm 25mm A) Outdoor lock body * 1 G) M4 x 25mm B) Indoor lock body * 1 cross flat head self-tapping screw * 4 C) Mounting plate * 1 H) M4 x 8mm cross flat head bolt * 2 D) Single latch * 1 J) Mechanical key * 2 E) Cylindrical sleeve bolt * 2...
  • Page 4 1. Check door thickness and Door Frame. Door frame≧110mm Door thickness: 38~50mm 2. Check door open direction. left inward right inward left outward right outward Note: Please refer the above picture to adjust the direction of strike plate (K) and latch (E). Installation Templatei 25mm 54mm...
  • Page 5 Step 1 According to the map drilling holes on the door Note: 1) Check the required backset (60mm or 70mm). 2) Align the template along the vertical center line of the single latch (E) at the desired height,and tape it to the door. 3) Mark the holes first, then start drilling.
  • Page 6 Step 4 Install outdoor unit (A) Note: Make sure the side with the text "This Side Up" on the square spindle must be upward. Step 5 Install mounting plate (C) on the door Step 6 Install indoor unit (B) on the door Note: Cable goes through the square hole of back handle.
  • Page 7 Under initialization mode, the lock can be unlocked by any fingerprint or the initial code 123456. Please pair your lock with Tuya App by following below steps before using the lock. 1. Tuya App Installation and Account Registration 1.1. Download the “Tuya Smart” App from Google play store or Apple store.

  • Page 8: Member Management

    When adding user as family member, the user needs a Tuya account. For other member, the user does not need a Tuya account. - Administrators can set passwords for themselves or Family / Other users.
  • Page 9 1.1. Family Member - Validity: Once added, the permission of the family member is permanent until the administrator removes the member. Family member will be able to control and use all devices in the family. - Unlock method: The administrator can set permissions of unlock method for family member via Bluetooth near the lock;...
  • Page 10 2.2. Password The password length should be 6~10 digits. You can set your own password, or set password for member users by following steps: Password Management - Add Password - Select the User – Create Customized or Random Password - Save 2.3.

  • Page 11: Passage Mode

    3.Unlocking Records To view unlocking records. 4. Smart Linkage 4.1. Family Go Home: Trigger linkage when family members go home. 4.2. Door Lock Alarm: When door lock alarms, trigger linkage. Passage Mode -The lock is auto-lock for default. It means that the lock will lock automatically 5 seconds after unlocking.
  • Page 12 Method 2: Set on the lock Step Operation System Prompt Press “28#” on the lock Keyboard lights up To unlock the lock via any one of ways below: 1. Fingerprint (any one of first three fingerprints you set) 2. Password (any one of first three passwords you set) After the above two steps, passage mode is on.
  • Page 13 Click upper right corner of Home Page - Home Management, then enter Home Settings. On the page of Home Settings, you can set “Home Name”, “Room Management”, “Location”, manage your “Home Member”, transfer the “Home Ownership”. 1. Smart - 12 -...
  • Page 14 For example: One tap to run selected devices when family member go home. 3. Third-Party Voice Service: Alexa, Google Assistant, etc. （ need Gateway and use Wifi 2.4 GHz.） More functions of Tuya Smart are waiting for you to discover. - 13 -...
