Summary of Contents for TUYA N33-YB

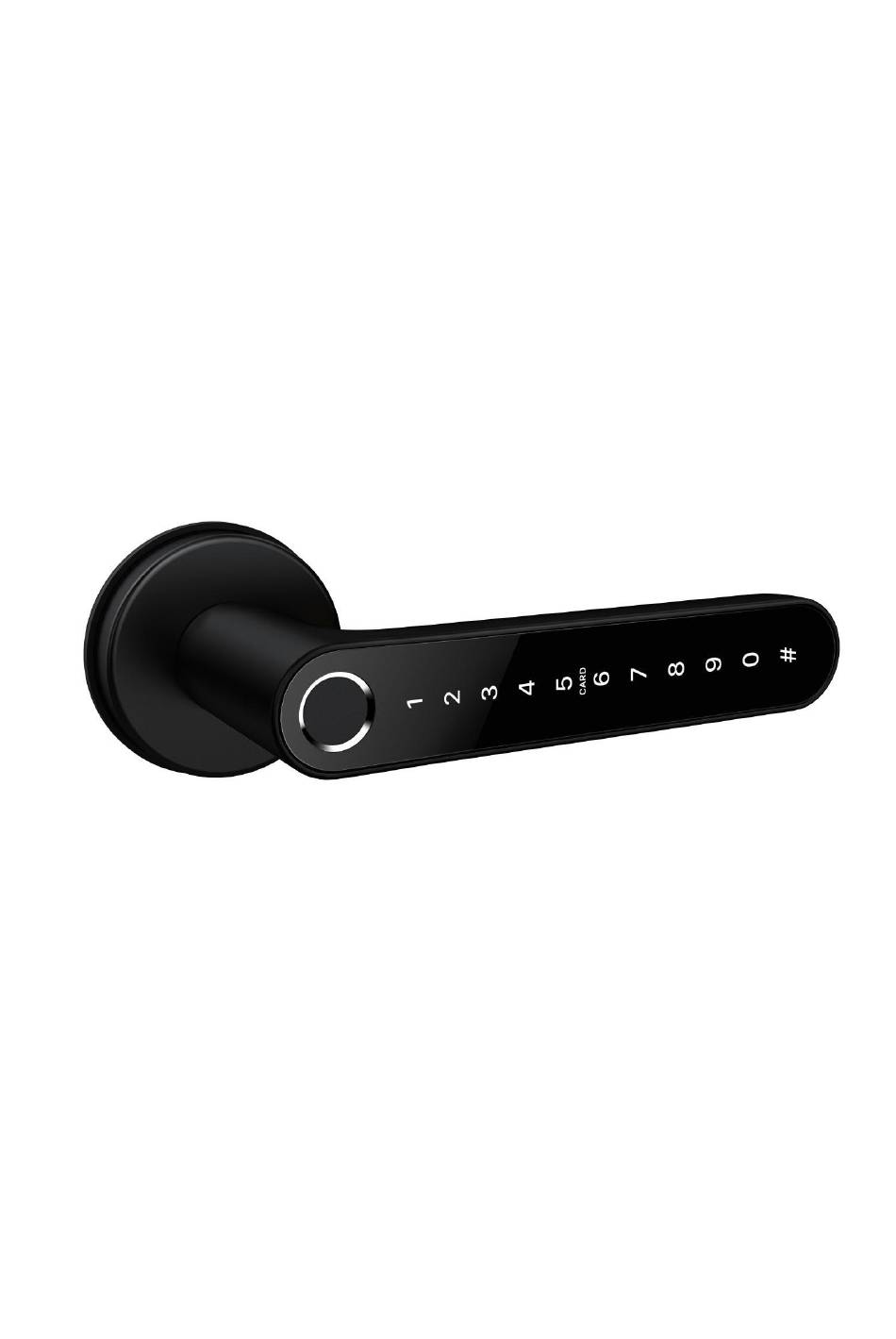

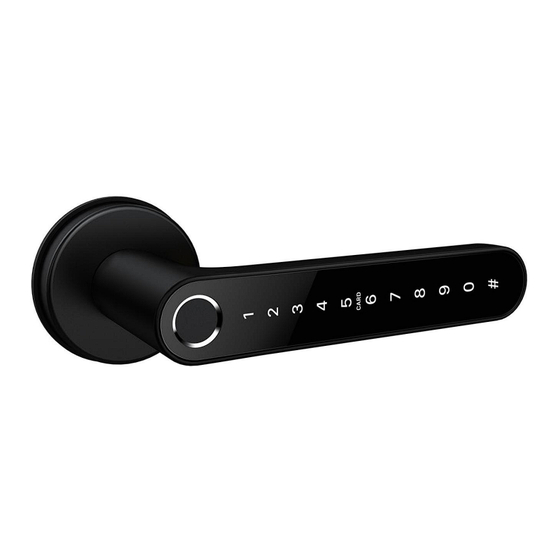

- Page 1 Smart Lock User Manual N33-YB Special Attention: 1. Mechanical keys please keep outdoor, just in case keys lock in doors. 2. Please replace for the battery when low wattage alarm. 3.Reading this manual carefully before installation, and keep it for future reference.
-
Page 2: Packing List
1. Introduction 1.1.Lock structure 1.2.Packing List Check the following drawing to check whether the package contains all the parts Name Name Front Panel Strike&Strike Box Back Panel User Manual Mortise Screws:M5*10mm Mortise (For Aluminum Door) Mortise Screws:M4*20mm Card (For Wooden Door) Mechanical Key M4*40mm Screw Waterproof Rubber... -
Page 3: Specifications
1.3.Specifications Suitable for Doors Aluminum door N33-YB Models Applicable Wooden door Panel:Zinc alloy Working Materials 6V/4x AAA Batteries Handle ： Aluminum alloy Voltage Door Thickness Lock Weight 2.5 KG 35-60mm to Fit Bluetooth Fingerprint(option) Fingerprint ： 80 Unlocking Password Data Capacity Password ：... -
Page 4: Installation Diagram
2.Installation Installation Diagram 2.1. Step 1 Install Mortise Step 2 Install Screw Casing 1.Install the Screw Stubs 2.Install Rubber Plate Step 3 Install back panel Step 4 Install battery 、link wire and Lock cylinder 1. Unscrew the battery cover screw 2.Install Rubber Plate 3.Mounting screws installation complete... -
Page 5: Operation
3.Operation 3.1.Download You can search for [ Tuya Smart ] in various app stores or scan the QR code above to download 2.Register 1.Click “Sign Up”and read the Privacy Policy after it pops up. Click “Agree” and enter the registeration page. - Page 6 3.4.Add lock 1.Tap Add Device on the Home page or“+”in the upper right corner of the page to go to the Add Device page. then, you can manually add devices or search for devicesto add to the app. 2.Click on the "security sensors" category on the left ， Find the door lock (Bluetooth) 3.Touch the “8+#”...
- Page 7 3.5.Add user 3.5.1.Members and management Two different kinds of members 1. Family members-this type of member is consistent with the users in the family group in the app; when a new user is added to the family group in the app, one more family member will appear in the door lock member.
-
Page 8: Fingerprint Management
3.5.2.Opening record You can query the log in the door opening log, and the records are arranged in reverse order. The unlock ID that has been associated with the user name will directly display the corresponding user name, and the unlock ID that has not been associated with the name will display the specific unlock ID About the opening log display: When the door lock is connected to the mobile phone... -
Page 9: Password Management
3.6.2.Password management Connect the door lock through the app Bluetooth, the administrator can enter the password for himself or other family members; before adding password, select the user corresponding to the added password Click "Add Password" to enter the password entry interface, which supports random generation and custom passwords. - Page 10 3.7.Add gateway(option) 3.7.1.Add bluetooth Gateway Electrify the gateway.The phone turns on Bluetooth and connects to 2.4g Wi-Fi (note that if the router supports both 2.4g and 5G modes, the phone must be connected to a 2.4g network; 2.4g and 5G hybrid modes are not supported).
- Page 11 4.FAQ 1) How to read operation In the Records of the main interface. . records? 2) Why can’t I unlock it after open You need to perform an unlock verification in any the passage mode method, than the passage mode will take effect. 3) What is the purpose of Auto You can set how long to lock after unlocking Lock...
- Page 12 Guarantee Customer Name： Customer Calls ： Purchase Date ： Product Name ： Product Model ： Note: Please keep this card so that you can use it when you need warranty service. We provide you with a one-year warranty from the date of purchase. This warranty service is valid for customers in any country in the world.
