Draper STORMFORCE 98486 Manual

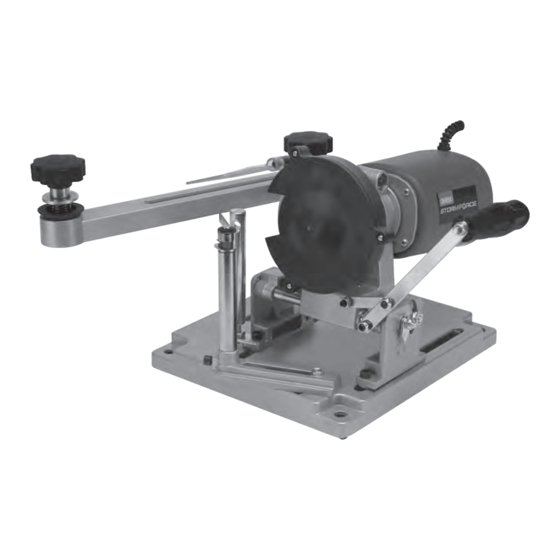

230v circular saw blade sharpener
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
230V
CIRCULAR SAW
BLADE SHARPENER
98486
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STORMFORCE 98486 and is the answer not in the manual?

Questions and answers

Related Manuals for Draper STORMFORCE 98486

Summary of Contents for Draper STORMFORCE 98486

  • Page 1 All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS TABLE OF CONTENTS TITLE PAGE INTRODUCTION ......................2 REVISIONS ........................2 UNDERSTANDING THIS MANUALS SAFETY CONTENT ......... 2 COPYRIGHT © NOTICE ....................2 CONTENTS TABLE OF CONTENTS ....................3 WARRANTY WARRANTY ......................... 4 INTRODUCTION SCOPE ......................... 5 SPECIFICATION ......................5 HANDLING AND STORAGE ..................

  • Page 4: Warranty 3.1 Warranty

    This warranty applies in lieu of any other warranty expressed or implied and variations of its terms are not authorised. Your Draper warranty is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the warranty period.

  • Page 5: Introduction

    INTRODUCTION SCOPE This 230V bench mounted product is primarily used for sharpening TCT circular saw blades. It can also be used for the same purpose with other types of circular saw blade. It’s adjustable angle feature caters to various sizes of disc from 90mm to 400mm. This product is intended for domestic and infrequent light trade use only.

  • Page 6: Health And Safety Information

    HEALTH AND SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE Warning! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

  • Page 7: Specific Safety Instruction For Bench Grinders

    HEALTH AND SAFETY INFORMATION g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.

  • Page 8: Safety Recommendations For The Correct Use Of Abrasive Products

    HEALTH AND SAFETY INFORMATION vibration or if other defects are detected. If this condition occurs, check the machine to determine the cause. − Never use the tool without such a guard. − Do not use separate reducing bushings or adaptors to adapt large hole abrasive wheels. −...

  • Page 9: Safety Recommendations For The Correct Use Of Superabrasives

    HEALTH AND SAFETY INFORMATION Delivery, handling and storage. Abrasive products must be handled and transported with care. Abrasive products must be stored in such a manner that they are not subjected to mechanical damaged and harmful environmental influences. Selection of the abrasive product. Information on the label or the abrasive product stating restrictions of use, safety indications or any other instructions must be followed.

  • Page 10: Residual Risk

    HEALTH AND SAFETY INFORMATION Further information. The following instructions shall be observed, supplementary to the information of the grinding machine: – Observance of the user’s information of grinding machine manufacturer. – Before starting, safety devices shall be mounted to the machine. –...

  • Page 11: Technical Description

    TECHNICAL DESCRIPTION IDENTIFICATION (17) (15) (16) (14) (10) (11) (13) (12) (1) Approved power cable and plug. (10) Locking pin. (2) Motor clamp. (11) Bench mounting point(s). (3) Grinding wheel cover. (12) Base plate. (4) Locking knob. (13) Angle gauge. (14) Angle gauge locking nut.

  • Page 12: Unpacking And Checking

    Carefully remove the product from the packaging and examine it for any sign of damage that may have happened during shipping. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product.

  • Page 13: Preparation

    PREPARATION BENCH MOUNTING – FIG.1 Warning! For your own safety, always turn the main switch on the machine OFF and remove the plug from the power supply before carrying out any servicing or maintenance. − Locate the sharpener on a level and solid surface, ideally a workbench.

  • Page 14: Grinding Set Up And Adjustment

    PREPARATION GRINDING SET UP AND ADJUSTMENT – FIGS.4 – 7 Grinding stone position when − Depending on whether you are intending to grinding front of sharpen the face or back of the tooth, the saw the tooth blade must be adjusted, as shown in the illustrations in FIGS.4 –...
  • Page 15 PREPARATION (15) (17) (6.1) FIG. The swivel arm of the saw blade holder (6) can be adjusted, depending on the size of the saw blade and relation to the position of the motor block (17). − Loosen the locking knob of the blade holding arm (7). The arm can then be moved back and forth, and also rotated.

  • Page 16: Adjustment Examples For Different Saw Blade Diameters

    PREPARATION ADJUSTMENT EXAMPLES FOR DIFFERENT SAW BLADE DIAMETERS – FIGS.8 – 10 FIG.8 90mm saw blade, motor moved backwards. FIG.9 230mm saw blade, motor must be moved forward in order to avoid any collision with the arm. FIG.10 400mm saw blade, motor moved forward, arm must be aligned in such a way that the pin nut does not collide with the saw FIG.

  • Page 17: Tilting The Motor Block

    PREPARATION TILTING THE MOTOR BLOCK – FIG.12 (14) For saw blades with set teeth, the motor block can (13) be tilted. − Unscrew the fixing nuts (13) on both side of the motor block retainer and, using the angle gauge (14), adjust to the required angle. −...

  • Page 18: Operation

    OPERATION SHARPENING SAW BLADES – FIGS.14 – 15 When you have made all the appropriate settings and adjustments outlined in the previous chapter, you are ready to begin the blade sharpening process. Warning! At this point, make sure that the perspex safety eye shield (5) is attached and in place on the grinding wheel cover.

  • Page 19: Maintenance

    10. MAINTENANCE 10.1 REPLACING THE GRINDING WHEEL – FIG.16 Warning! For your own safety, always turn the main switch on the machine OFF and remove the plug from the power supply before carrying out any servicing or maintenance. − Remove the 3 screws from the grinding wheel cover (FIG.16).

  • Page 20: Disposal

    11. DISPOSAL 11.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •...

  • Page 21: Explanation Of Symbols

    12. EXPLANATION OF SYMBOLS 12.1 EXPLANATION OF SYMBOLS Class II construction Read the instruction manual. (Double insulated). WEEE – Wear face mask, ear defenders Waste Electrical & Electronic Equipment. and safety glasses. Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish.
  • Page 22 NOTES – 22 –...
  • Page 23 NOTES – 23 –...
  • Page 24 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
