Merlin E964M Manual

ROLLER DOOR OPENERS
LEARN
BUTTON
LEARN
OR
BUTTON
DN 1 S
3
UP 2 P
LED
INDICATOR
LED
INDICATOR

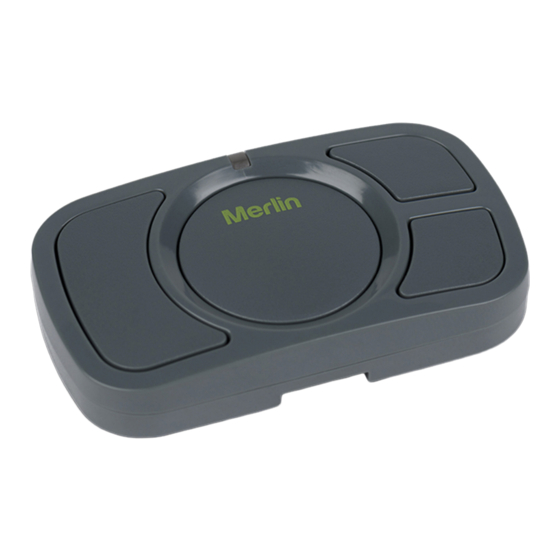

The Merlin Four Button Wireless Car Visor Remote Control can be used with both Merlin Security+
and Security+ 2.0 codes (dual function). 4 buttons are available and any button can be programmed
with either code.
Initially: Locate the LEARN button on your particular opener and identify the button on
the remote you wish to use. Do not select a button already in use.
1. Install the Visor Clip
To ensure the visor clip is secured to the remote properly, push the clip into
the slot until you hear an audible click.
2. Programming - Merlin Security+ 2.0 door opener systems
The remote is preset for use with Merlin Security+ 2.0 systems, so for EVO door opener models with this code, simply program in the usual manner.
Refer to the WIRELESS PROGRAMMING section in your Opener Operating Manual.
NOTE: If you are unsure what code has been set previously, use the Security+ programming sequence on page 2.
1. Press & hold the button on the remote you wish to use.
2. Press & release the LEARN button on the opener.
3. Release the remote button when the opener light flashes.
The code has been learnt and the next press of the remote
button should activate the door.
©2022 The Chamberlain Group LLC
SECTIONAL DOOR OPENERS
LED
INDICATOR
3 2 2 1
OR
S P
1 2 3
LEARN
BUTTON
LEARN
BUTTON
E964M - Four Button Car Visor Remote Control
LED
3
1 2
Press and hold the
button on the remote
control you wish to use.
The LED indicator on
the transmitter flashes
continuously.
WARNING! This product contains a button/coin cell battery.
To prevent possible SERIOUS INJURY or DEATH:
• The battery is hazardous.
• Keep new and used batteries away from children.
• Do not ingest battery. Chemical burn hazard.
• If the coin cell battery is swallowed or placed inside
any part of the body, it can cause severe or fatal
injuries in 2 hours or less.
• If the battery compartment does not close securely, stop using
the product and keep away from children.
• If you think batteries might have been swallowed or placed
inside any part of the body, call the 24-hour Poisons Information
Centre on 13 11 26 in Australia, or the 24-hour National Poisons
Centre on 0800 764 766 in New Zealand, or seek immediate
medical attention.
• Dispose of used coin/button cell batteries immediately and
safely. Flat batteries can still be dangerous.
3 3
3
Press and
immediately release
The opener light flashes
the Learn button.
or 2 clicks are heard
when it has learnt the code
