Merlin E980M Quick Start Manual

The Merlin Water Resistant Four Button Remote Control can be used with both Merlin
Security+ and Security+ 2.0 codes (dual function).
4 buttons are available and any button can be programmed with either code.
ROLLER DOOR OPENER
LEARN
BUTTON
OR
S
DN 1 3
UP 2 P
LED
INDICATOR
Initially: Locate the LEARN button on your particular opener and identify the button on
the remote you wish to use. Do not select a button already in use.
1. Programming - Merlin Security+ 2.0 door opener systems
The remote is preset for use with Merlin Security+ 2.0 systems, so for EVO door opener
models with this code, simply program in the usual manner. Refer to the WIRELESS
PROGRAMMING section in your Opener Operating Manual.
NOTE: If you are unsure what code has been set previously,
use the Security+ programming sequence on page 2.
1. Press & hold the button on the remote you wish to use.
2. Press & release the LEARN button on the opener.
3. Release the remote button when the opener light flashes.
The code has been learnt and the next press of the remote button should activate the door.
1
Press and hold the
button on the remote
control you wish to use.
The LED indicator on
the transmitter flashes
continuously.

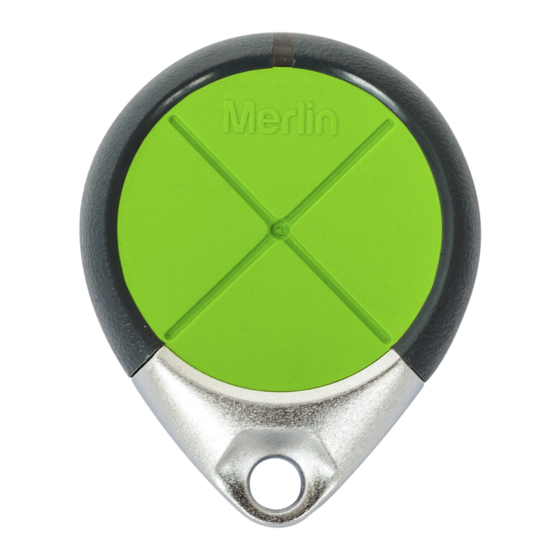

E980M - Water Resistant Four Button Remote Control
IP65 rated*
SECTIONAL DOOR
OPENER
LED
INDICATOR
LEARN
BUTTON
LEARN
LED
BUTTON
INDICATOR
2
Press and
immediately release
the Learn button.
3 2 2 1
S P
1 2 3
LEARN
BUTTON
3
The opener light flashes
or 2 clicks are heard
when it has learnt the code
LED
* IP65 Protection against low-pressure water
jets from any angle– see gomerlin.com.au
or gomerlin.co.nz for more information.
WARNING! This product contains a button/coin cell battery.
To prevent possible SERIOUS INJURY or DEATH:
• The battery is hazardous.
• Keep new and used batteries away from children.
• Do not ingest battery. Chemical burn hazard.
• If the coin cell battery is swallowed or placed inside any part
of the body, it can cause severe or fatal injuries in 2 hours or
less.
• If the battery compartment does not close securely, stop using the product
and keep away from children.
• If you think batteries might have been swallowed or placed inside any part
of the body, call the 24-hour Poisons Information Centre on 13 11 26 in
Australia, or the 24-hour National Poisons Centre on 0800 764 766 in
New Zealand, or seek immediate medical attention.
• Dispose of used coin/button cell batteries immediately and safely. Flat
batteries can still be dangerous.
©2021 The Chamberlain Group, Inc
