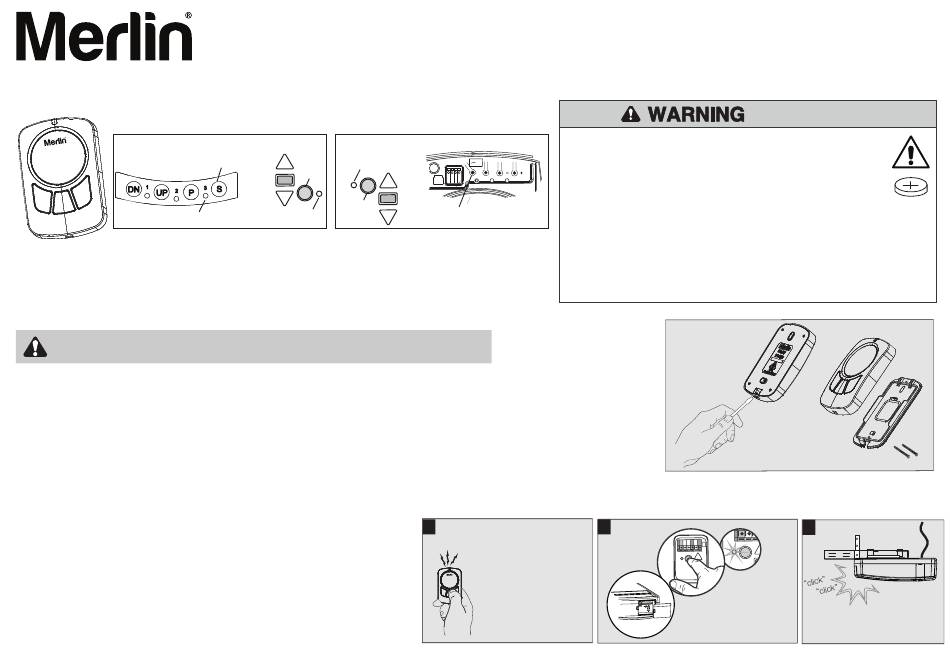

Merlin CM128 Manual

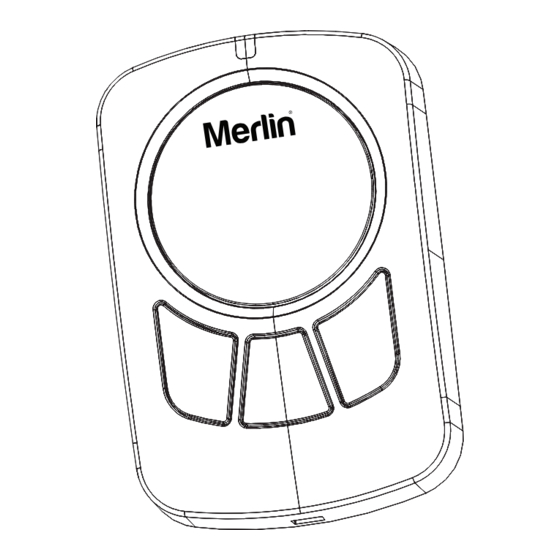

The Merlin Four Button Wireless Wall Mount Remote Control can be used with both Merlin Security+ and Security+ 2.0 codes (dual function).
4 buttons are available and any button can be programmed with either code.
ROLLER DOOR OPENER
DN 1
UP 2 P
LED
INDICATOR
Initially: Locate the LEARN button on your particular opener and identify the button on
the remote you wish to use. Do not select a button already in use.
1. Installation
Disconnect power to the opener before installing this accessory to prevent accidental activation.
Locate minimum 1.5m above the floor.
• Carefully pry open the E148M and locate the two screws for mounting.
• Attach to the wall using the two screws provided. If mounting to a plaster wall, wall plugs may be required.
NOTE: Do not over tighten screws.
• Replace the front cover plate.
2. Programming - Merlin Security+ 2.0 door opener systems
The remote is preset for use with Merlin Security+ 2.0 systems, so for EVO door opener models with this code, simply program in the usual manner.
Refer to the WIRELESS PROGRAMMING section in your Opener Operating Manual.
NOTE: If you are unsure what code has been set previously,
use the Security+ programming sequence on page 2.
1. Press & hold the button on the remote you wish to use.
2. Press & release the LEARN button on the opener.
3. Release the remote button when the opener light flashes.
The code has been learnt and the next press of the remote
button should activate the door.
SECTIONAL DOOR
OPENER
LEARN
LED
BUTTON
INDICATOR
LEARN
BUTTON
OR
S
3
LEARN
LED
BUTTON
INDICATOR
E148M - Four Button Wireless
Wall Mount Remote Control
WARNING! This product contains a bu�on/coin cell ba�ery.
• The battery is hazardous.
• Keep new and used batteries away from children.
3 2 2 1
• Do not ingest battery. Chemical burn hazard.
S P
OR • If the coin cell battery is swallowed or placed inside any part
1 2 3
of the body, it can cause severe or fatal injuries in 2 hours or less.
• If the battery compartment does not close securely, stop using the product and
keep away from children.
LEARN
BUTTON
• If you think batteries might have been swallowed or placed inside any part of the body,
call the 24-hour Poisons Information Centre on 13 11 26 in Australia, or the 24-hour
National Poisons Centre on 0800 764 766 in New Zealand, or seek immediate medical
attention.
• Dispose of used coin/button cell batteries immediately and safely. Flat batteries can still
be dangerous.
1
Press and hold the
button on the remote
control you wish to use.
The LED indicator on
the transmitter flashes
continuously.
2
Press and
immediately release
the Learn button.
3
The opener light flashes
or 2 clicks are heard
when it has learnt the code
