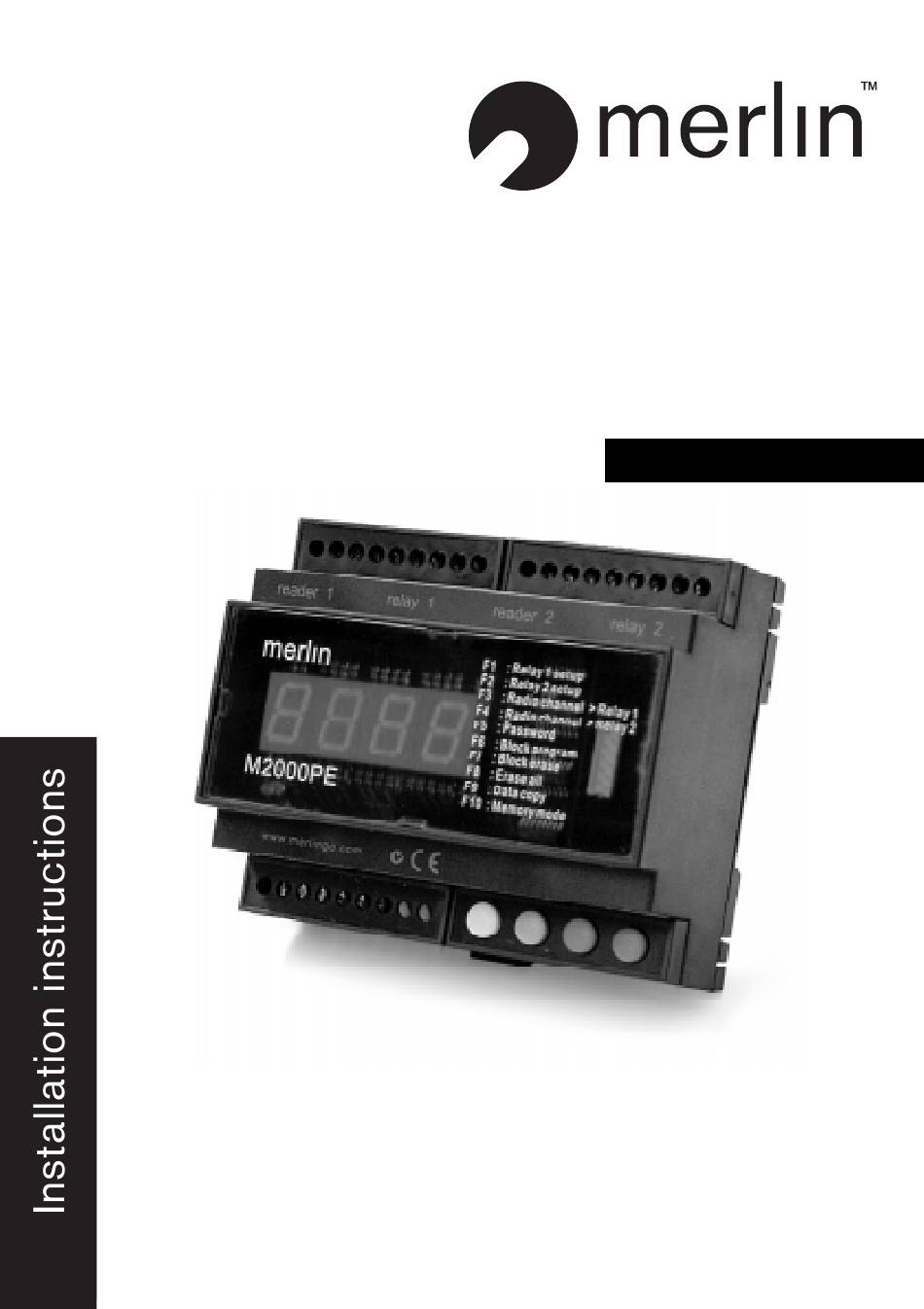

- Page 1 M2000PE access controller for two doors Toll free helpline Please have your serial number and model name available before calling. Australia 1800 638 234 New Zealand 0800 653 667 United Kingdom 0800 073 0112...
-
Page 2: Important Safety Instructions
This product must be used for its intended purpose only. Any other use is improper and therefore dangerous. The information contained herein and in the enclosed documentation may be changed without notice, and are in fact provided in an approximate manner for application of the product. Merlin declines any and all liability in this regard. - Page 3 The M2000PE is an access controller for the operation of two doors. It has an integrated Merlin high security code hopping radio receiver. It also has two Wiegand inputs for external readers, and two 9 V dc outputs to power them.
- Page 4 26 or 30-bit card reader Wiegand data Wiegand data ISO2 or 37-bit Wiegand MW30 converter 30-bit Wiegand Any Merlin wireless remote control: handheld, keyring, wall switch or keypad Rolling code + serial # + button # M2000PE Manual Manual control 2...
- Page 5 Whatever bridges these terminals must be Normally Closed in order for each relay to oper- ate. When connecting a Merlin aerial to the antenna terminal, cut off the MCX connector and expose 20 mm of braid. Twist this and connect to the ‘antenna shield’ terminal. Connect the centre core to the ‘antenna’...
- Page 6 Programming connections It is possible to perform all the necessary programming from the front panel of the M2000PE. However, in some instances, it may be useful to programme it in other ways. A PC running WIN-GT-SYSTEM software can be connected through an INT485C adapter.
- Page 7 Setup Note: VAL, DEC, INC, and FUN refer to the green, red, blue and yellow buttons on the M2000PE. Channels 1 to 4 correspond to the buttons of the Merlin wireless devices as follows: M842 M844 H128C H128C H128C M840...
- Page 8 It is strongly recommended to write down the combination prior to setting. If a password is forgotten or lost then the M2000PE must be returned to the supplier. Note that all memory will be cleared and so all card and wireless device assignments will require re-entering.
- Page 9 Block entry of codes can be performed with sequential prox tags or cards. Note that Merlin high security code hopping wireless devices can not be entered in this manner, due to the additional security of the code hopping validation that each device requires.
- Page 10 Press VAL again to confirm the bulk erase. Codes in all locations will be deleted. Display will return to the function selection menu. Simultaneously press INC & DEC to exit programming mode. F9: Data copy Codes may be transferred serially in blocks from locations in one M2000PE to the same...
- Page 11 Note that pressing FUN will revert the unit back to the function selection menu unless data transfer has commenced. Note: Data will only show on the PC once it has been copied from the M2000PE module. Data entered into the PC will only show on the M2000PE module once it has been copied to the module.
- Page 12 This mode is to allow some restriction on user access to some doors. Namely: Locations 0001 to 1000 activate relay 1 only; select which radio channel using Locations 1001 to 2000 activate relay 2 only; select which radio channel using If one wireless device is to operate two relays, then it must be assigned to two locations, for example: Location 0001, channel 1 (button 1), relay 1...
-
Page 13: Warranty
Merlin. Future Modifications Merlin may modify any existing or future model of the Unit without the obligation to incor- porate these modifications into Units already manufactured or into the Unit to which this warranty applies. -
Page 14: Specifications
In-warranty service During the warranty period, if the product appears as though it may be defective, call our toll free service before removal of the unit. A Merlin technician will diagnose the problem, or provide you with shipping instructions for a factory repair or replacement. -
Page 15: Input Devices
Accessories MW30 Converter for either mag stripe (ISO2) or 37- bit Wiegand readers to connect to the 26 or 30-bit Wiegand input on the M2000PE. GT/SYSTEM Handheld programmer for connection to M2000PE, or M200R or M1000R memory modules. WINGTSYSTEM Software for a PC to be connected to the M2000PE. - Page 16 Merlin service centres New Zealand Auckland phone 09 415 4393 Phone toll free 0800 653 667 or 0800 MERLIN Fax toll free 0800 653 663 Australia NSW, Vic, Qld, WA Phone toll free 1800 638 234 Fax toll free 1800 888 121...
