Merlin E148M Quick Start Manual

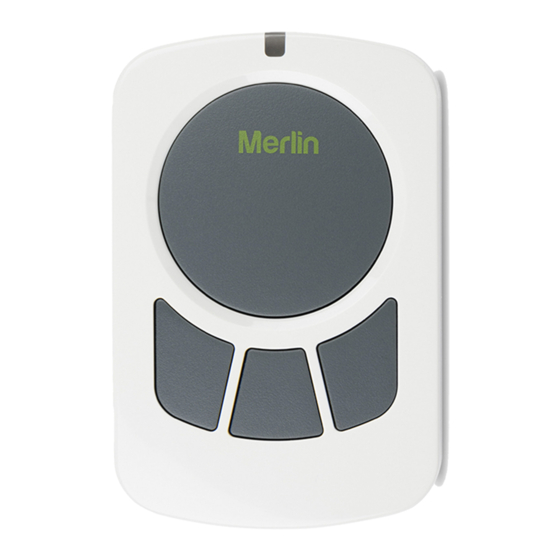

The Merlin Four Button Wireless Wall Mount Remote Control can be used with
both Merlin Security+ and Security+ 2.0 codes (dual function).
4 buttons are available and any button can be programmed with either code.
ROLLER DOOR OPENER
LEARN
BUTTON
OR
1 3 S
DN
2
UP P
LED
INDICATOR
Initially: Locate the LEARN button on your particular opener and identify the button on
the remote you wish to use. Do not select a button already in use.
1. Programming - Merlin Security+ 2.0 door opener systems
The remote is preset for use with Merlin Security+ 2.0 systems, so for EVO door opener
models with this code, simply program in the usual manner. Refer to the WIRELESS
PROGRAMMING section in your Opener Operating Manual.
NOTE: If you are unsure what code has been set previously,
use the Security+ programming sequence on page 2.
1. Press & hold the button on the remote you wish to use.
2. Press & release the LEARN button on the opener.
3. Release the remote button when the opener light flashes.
The code has been learnt and the next press of the remote button should activate the door.
1
Press and hold the
button on the remote
control you wish to use.
The LED indicator on
the transmitter flashes
continuously.
SECTIONAL DOOR
OPENER
LED
INDICATOR
LEARN
BUTTON
LEARN
LED
BUTTON
INDICATOR
2
Press and
immediately release
the Learn button.
E148M - Four Button Wireless
Wall Mount Remote Control
3 2 2 1
S P
1 2 3
LEARN
BUTTON
3
The opener light flashes
or 2 clicks are heard
when it has learnt the code
To prevent possible SERIOUS INJURY or DEATH:
•Do not ingest battery, Chemical Burn Hazard.
•This product contains a coin cell battery. If the coin cell battery
if swallowed, it can cause severe internal burns in just 2 hours
and lead to death.
•Dispose of used button batteries immediately and safely.
Flat batteries can still be dangerous
•Keep new and used batteries away from children.
•If the battery compartment does not close securely, stop
using the product and keep away from children.
•If you think batteries might have been swallowed or placed
inside any part of the body, seek immediate medical attention.
