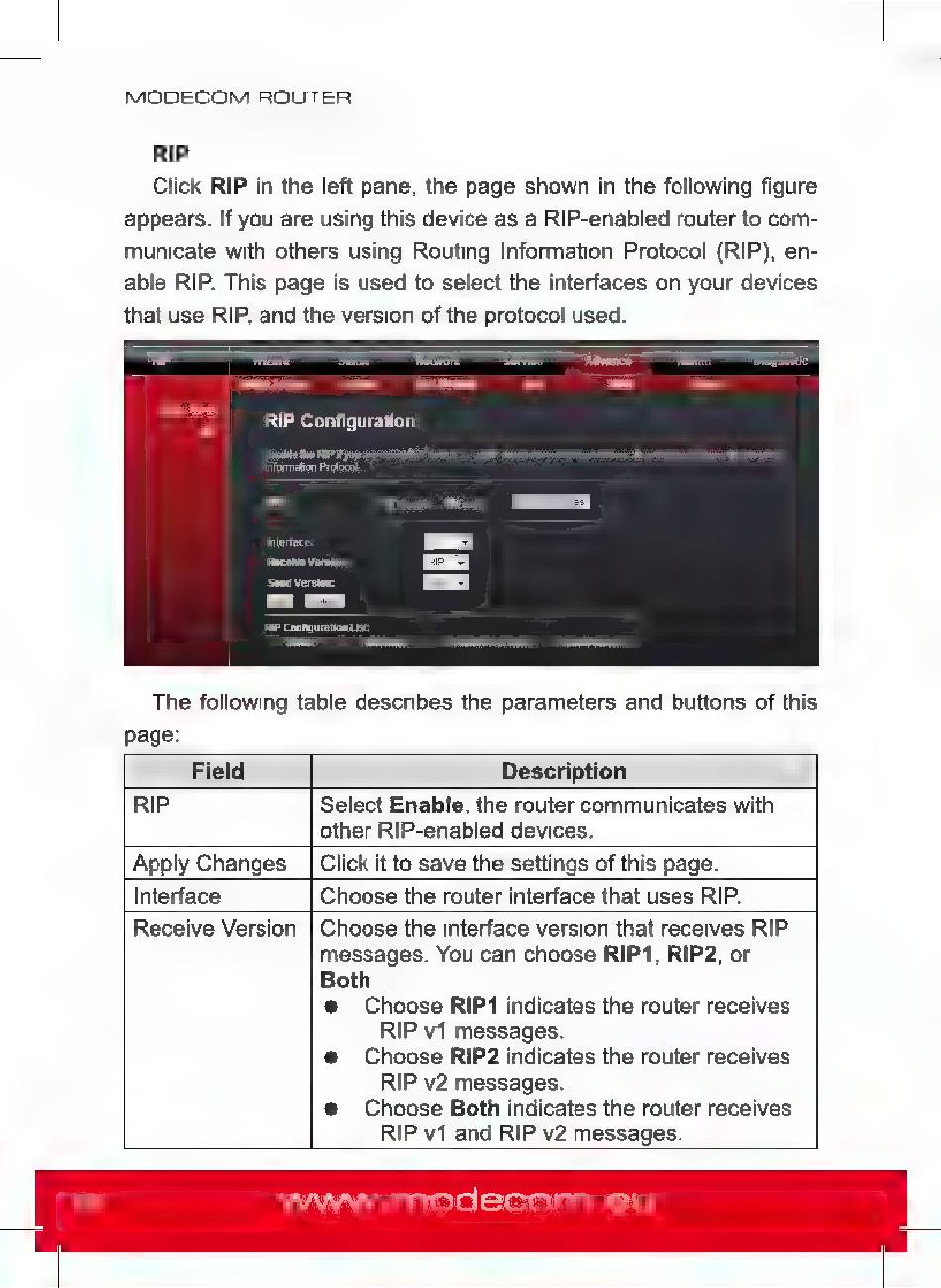

MODECOM ROUTER
RIP
Click RIP in the left pane, the page shown in the following figure
appears. If you are using this device as a RIP-enabled router to com-
municate with others using Routing Information Protocol (RIP), en-
able RIP. This page is used to select the interfaces on your devices
that use RIP, and the version of the protocol used.
RIP Configuration
Enable the RIP ifyou are using h i e dece as a RIPonabledrouterl communicate with others using the Rowing
Infomation Protocol
Re: Onisabie @cnanie
Interface
a Connguration
The following table describes the parameters and buttons of this
page:
Field Description
RIP Select Enable, the router communicates with
other RIP-enabled devices.
Apply Changes | Click it to save the settings of this page.
Interface Choose the router interface that uses RIP.
Receive Version | Choose the interface version that receives RIP
messages. You can choose RIP1, RIP2, or
Both.
@ Choose RIP1 indicates the router receives
RIP v1 messages.
@ Choose RIP2 indicates the router receives
RIP v2 messages.
@ Choose Both indicates the router receives
RIP v1 and RIP v2 messages.
