MODECOM ROUTER
i = Power
i UOS
TARE TANS LARA,
ADSL service
socket
a

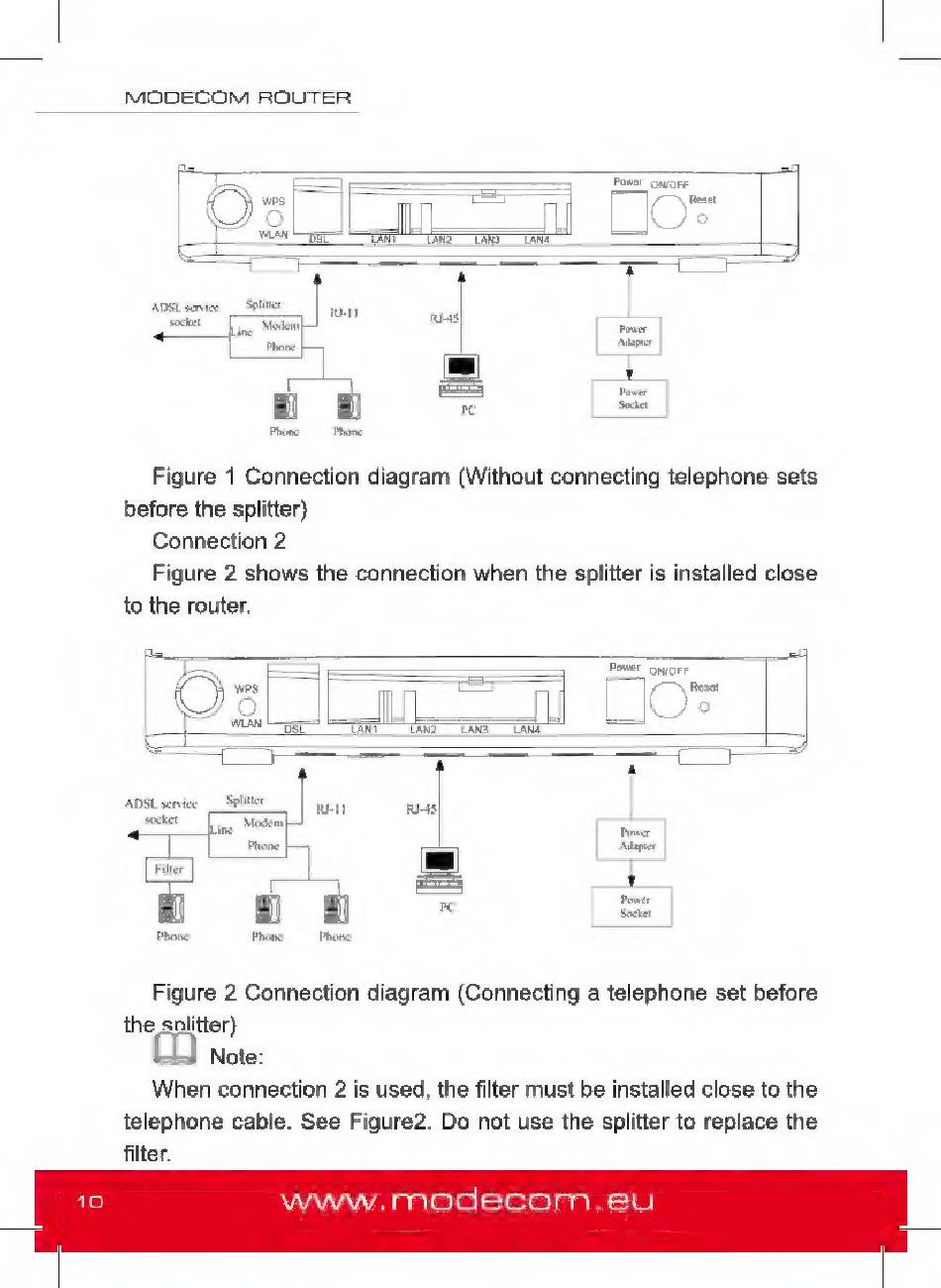

Figure 1 Connection diagram (Without connecting telephone sets
before the splitter)
Connection 2
Figure 2 shows the connection when the splitter is installed close
to the router.
Power OWOFr
(Reset
Figure 2 Connection diagram (Connecting a telephone set before
the snlitter)
==! Note:
When connection 2 is used, the filter must be installed close to the
telephone cable. See Figure2. Do not use the splitter to replace the
filter.
