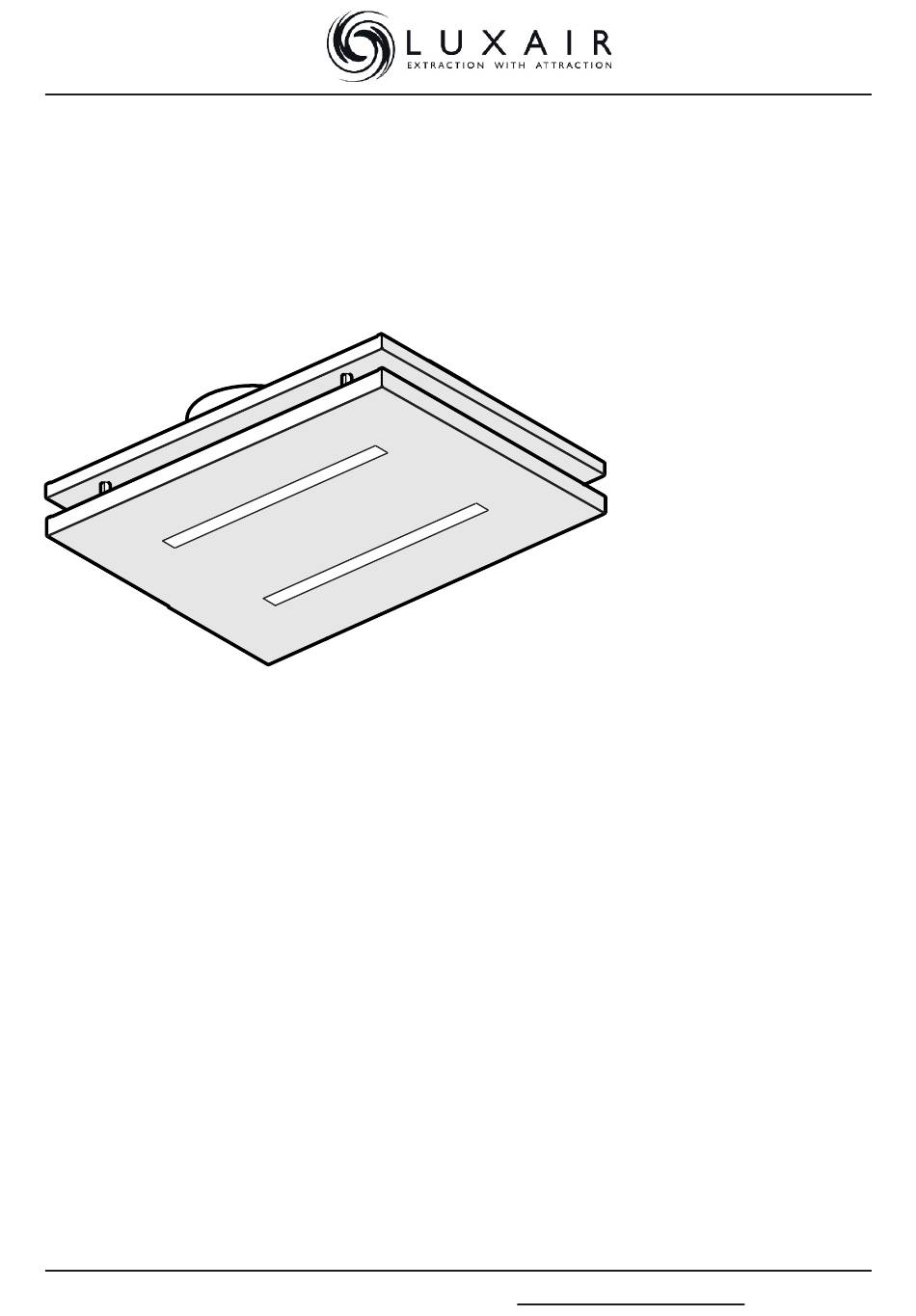

- Page 1 HOOD INSTALLATION, M AINTENENCE AND USAGE LA-400-CE-BLK-SS-WHT LA-600-CE-BLK-SS-WHT LA-800-CE-BLK-SS-WHT Please register your warranty at www.luxairhoods.com...
- Page 3 LA-400 LA-600 LA-800...
- Page 5 4,5W LA-400 6,5W LA-600 LA-800...
- Page 6 TRAFO TRAFO...
- Page 7 Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, declined. The extractor hood has been designed exclusively domestic use. The hood can look different to that illustrated in the drawings this booklet.
- Page 8 This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance. This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.
- Page 9 This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the envi- ronment and human health, which could otherwise be caused by inappropriate waste handling of this product.
-
Page 10: Ducting Version
Ducting version In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood. Attention! The exhausting pipe is not supplied and must be purchased apart. Diameter of the exhausting pipe must be equal to that of the connection ring. -
Page 11: Installation
Installation The minimum distance between sanitary appliances (bathtub, shower), and the mounted bathroom hood must not be less than 60 cm. For your safety, this bathroom hood is powered by 12V. It is equipped with a transformer and a Electrical connection The mains power supply must correspond to the rating indicated on the plate situated inside extractor. -
Page 12: Operation
Operation Use the high suction speed in cases of concentrated bathroom vapours. It is absolutely forbidden for the user to connect the air discharge of the appliance, when used a suction use, to boiler chimneys, gas, fume or vapour scavenging chimneys or any other duct, even only ventilation ducts, which have been used or will be used for other devices. -
Page 13: Remote Control Key Functions
Pairing the radio remote control Pairing mode is activated automatically after a power reset for 60 seconds, but this is not signaled in any way. It is necessary to press any key on the remote control during this time. Pressing a key, in addition to pairing, will also perform the function prescribed to it. Remote control key functions 1. -
Page 14: Maintenance
Maintenance ATTENTION! Before performing any maintenance operation, isolate the hood from the elec trical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. - Page 15 Wiring diagramm: 220-240 V 220V - 240V...
