NAUSICAA BLUE WAYUP 3 Manual

Stand up lift with fixed or with mechanical or electrical opening legs - 2 parts
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.nausicaa-medical.com
NAUSICAA Medical is ISO 13485 certified

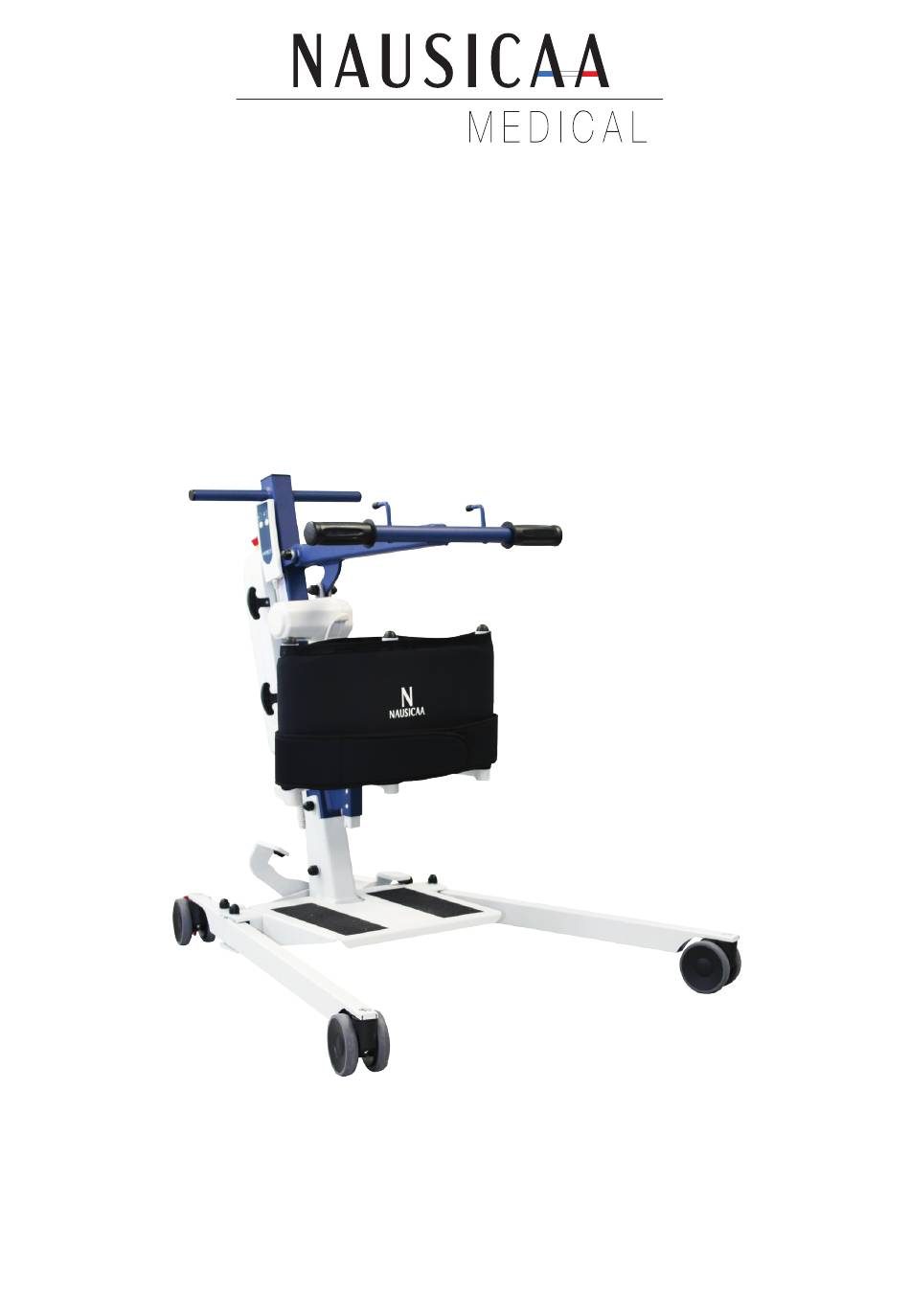

STAND UP LIFT: BLUE WAYUP 3 FIXED OR WITH
MECHANICAL OR ELECTRICAL
OPENING LEGS - 2 PARTS
STEEL MANUFACTURE MAXIMUM
CAPACITY: 150 kg
CLASS 1 MEDICAL DEVICE
ALL OUR APPLIANCES COMPLY WITH THE NF EN ISO 10535 : 2021 STANDARD.
User manual / Stand up lift : BLUE WAYUP 3
Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)
v01.09/22

Advertisement

Table of Contents
loading

Related Manuals for NAUSICAA BLUE WAYUP 3

Summary of Contents for NAUSICAA BLUE WAYUP 3

  • Page 1 CLASS 1 MEDICAL DEVICE ALL OUR APPLIANCES COMPLY WITH THE NF EN ISO 10535 : 2021 STANDARD. User manual / Stand up lift : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer) v01.09/22...

  • Page 2: Table Of Contents

    • Cleaning and maintenance • Technical data of the motorisation • Troubleshooting guide • Guarantee BLUE WAYUP 3 User manual / Stand up lift : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)

  • Page 3: User Manual / Stand Up Lift : Blue Wayup 3

    This device has been designed for patients weighing up to 150 kg. The climatic conditions for the use of the BLUE WAYUP 3 are as follows: ambient temperature from 0°C to 40°C, humidity from 20% to 80% and air pressure from 700 to 1060 hPa.

  • Page 4: Installation Instructions

    Step 2: Position the clamping wheels, washers and threaded pin as shown in the figure and place them in the 2 screw holes provided: User manual / Stand up lift : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)
  • Page 5 • Never charge the batteries of a sit-to-stand lift near a bath or shower. User manual / Stand up lift : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)

  • Page 6: Use Of The Device

    • How to use a sit-to-stand lift : - Patients with low muscle tone should be transferred to a semi-seated position. User manual / Stand up lift : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)
  • Page 7 • In addition, the patient’s shins must be in contact with the knee support at all times. • The positioning of the knee support must be done by a caregiver. User manual / Stand up lift : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)
  • Page 8 FIXED MODEL MECHANICAL AND ELECTRICAL ECP MODEL Small front Large rear Unbraked front Braked rear wheel wheel wheel wheel User manual / Stand up lift : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)
  • Page 9 Check that the cylinder is properly secured. Check that the battery is charged by the green light when the battery is charged. User manual / Stand up lift : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)

  • Page 10: Using The Motorisation

    ECP electric ECP version Lowering the lifting Climbing lifting arm Opening of Closing the feet the feet User manual / Stand up lift : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)

  • Page 11: Using The Strap

    • Before transferring a patient with the lift, make sure that the vest is securely attached to both hooks on the lift. User manual / Stand up lift : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)
  • Page 12 • information about the condition of the support element; • the next scheduled check date; • the name, contact details and signature of the controller. User manual / Stand up lift : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)

  • Page 13: Storage

    Storage In order to optimize the space in your warehouse or room, we suggest to make your device more compact when storing it. To do this, please follow the steps below: - Raise the arm of the lift by about 5 cm using the remote control. - Loosen the retaining screw and lower the mast of your lift to the floor.
  • Page 14 LxWxH = 640x600x960 mm Version «ECP» Dimensions (on wheels) : LxlxH = 1080x740x580 mm Overall Dimensions : LxlxH = 740x580x1080 mm User manual / Stand up lift : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)

  • Page 15: Re-Use Of The Stand-Up Lift / Labelling

    • Preventive Maintenance & Safety Checks • Cleaning & Maintenance Labelling Labelling on the carton BLUE WAYUP 3 User manual / Stand up lift : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)

  • Page 16: Labelling

    (pins, clips and bolts) as well as the tightness of the screws (see user manuals). DO NOT USE THE DEVICE IN CASE OF ANY LACK OR BAD OVERALL STATE NAUSICAA Médical - 12 Allée du Piot - ZA Pôle Actif - Gallargues-Le-Montueux - FRANCE BLUE WAYUP 3...
  • Page 17 Labelling Mounting Guide / Verticalizer : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)

  • Page 18: Preventive Maintenance And Safety Checks

    Battery condition (charge retention) Remote control status Checks carried out on: Checks carried out by: Expected date of next inspection: Mounting Guide / Verticalizer : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)
  • Page 19 Preventive Maintenance & Safety Checks Upper part common to all 3 models (Behind the knee rest) 9 and 10 Mounting Guide / Verticalizer : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)

  • Page 20: Spare Parts

    Preventive Maintenance & Safety Checks Base 9 and 10 Electrical opening legs 9 and 10 Mounting Guide / Verticalizer : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)
  • Page 21 Periodic greasing: use a «3 in 1» product or similar Upper part common to all 3 models Fixed foot ECP mechanical or electrical Mounting Guide / Verticalizer : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)

  • Page 22: General Safety Instructions

    Inform the dealer and instruct him to remedy the defect or fault. 20. Any serious incident occurring in connection with the device should be reported to NAUSICAA MEDICAL and to the competent authority of the Member State in which the user and/or patient is established.

  • Page 23: Technical And Dimensional Specifications

    H. Turning diameter: 89 cm • mechanical spacing: 81 cm • electrical spacing: 80 cm H. Turning diameter: 112 cm Mounting Guide / Verticalizer : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)

  • Page 24: Spare Parts

    Service Department: Stand-up lift & Lifts Téléphone: 04 66 71 71 80 Fax: 04 66 71 71 81 Mail: sav@nausicaa-medical.com Mounting Guide / Verticalizer : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)

  • Page 25: Cleaning And Maintenance

    If you notice a malfunction, contact the Service Department: Verticalizers & Lifts Telephone: 04 66 71 71 80 Fax: 04 66 71 71 81 Mail: sav@nausicaa-medical.com Mounting Guide / Verticalizer : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)
  • Page 26 • Noise level of the cylinder: 60 dB at 1 metre Class II equipment • Electromagnetic compatibility: complies with EN 60601-1-2 Connection diagram Mounting Guide / Verticalizer : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)

  • Page 27: Technical Data Of The Motorisation

    / beeps once deactivate L’indicateur lumi- neux clignote vert 2 fois et le boîtier vert 2 fois Mounting Guide / Verticalizer : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)

  • Page 28: Troubleshooting Guide

    The cylinder no longer moves up or 2. Change the remote control. 2. The remote control is out of order. down. Mounting Guide / Verticalizer : BLUE WAYUP 3 Manufactured by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)

  • Page 29: Guarantee

    • Article 3: The outward carriage of the equipment, as well as all related costs, shall be borne by the dealer. The goods always travel at the risk and under the responsibility of the dealer. Under guarantee: the cost of returning the goods after intervention will be borne by NAUSICAA Médical S.A.S.
  • Page 32 Head Office Sales Department Téléphone : 04 66 51 50 80 Fax : 04 66 51 50 47 Mail : contact@nausicaa-medical.com www.nausicaa-medical.com Your contact: Manufactured by NAUSICAA Médical S.A.S. 12 Allée du Piot - ZA Pôle Actif 30660 Gallargues le Montueux FRANCE...

This manual is also suitable for:

Blue wayup 3 fixedBlue wayup 3 secable compactBlue wayup 3 ecp secable mechanical spacingBlue wayup 3 ecp secable electric spacing
