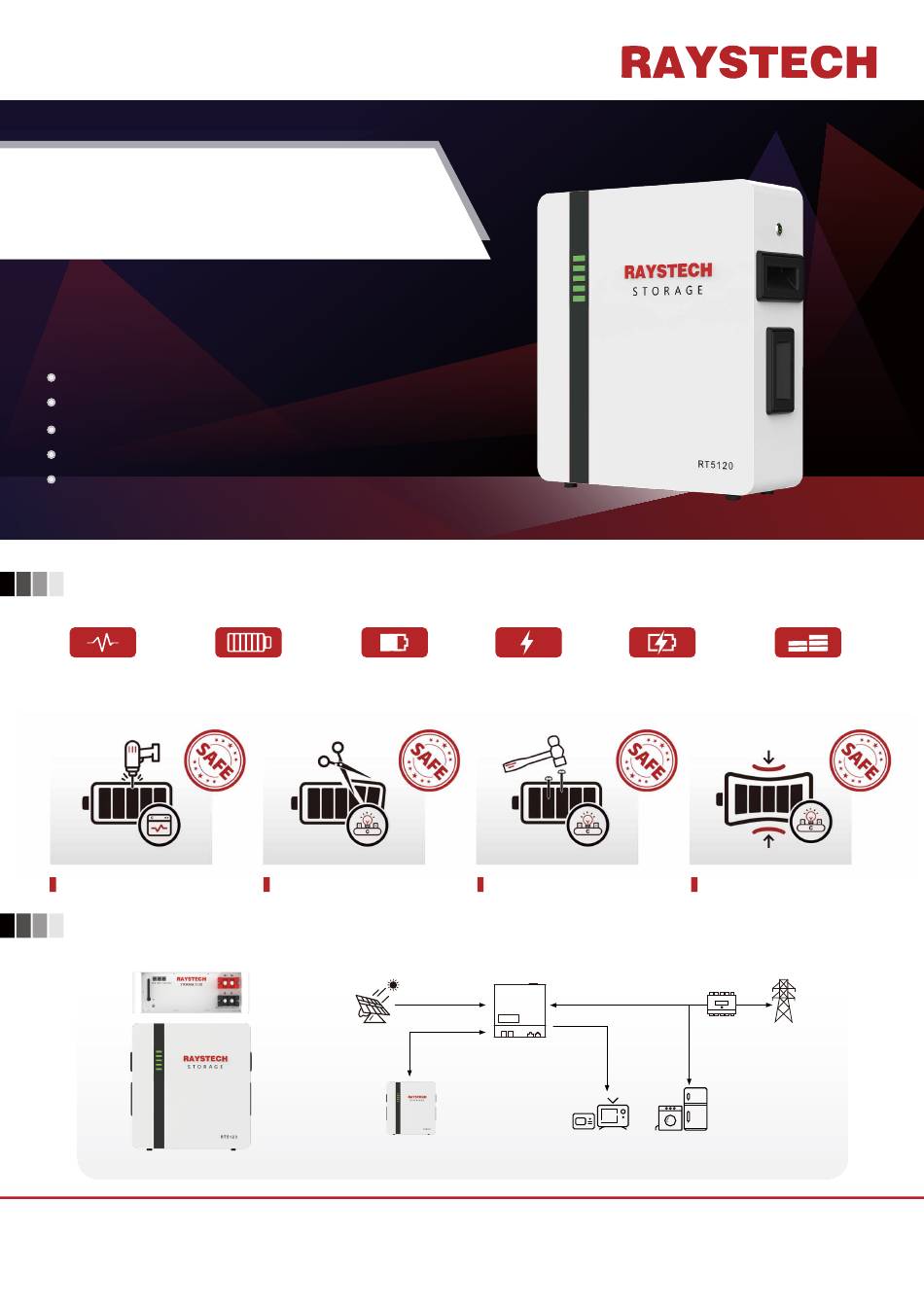

First Solid-State
S T O R A G E
Lithium-ion Battery ESS
RT5120
Higher Safety Protection
Faster Dis/Charging Speed
High Inverter Compatibility
Intelligent Built-in BMS
16pcs Connections in Parallel
FEATURES
6000
Solid-State
Cycle Life@25°C
LFP Battery Cells
The test of drill
APPLICATION
www.raystechglobal.com
Tel : 010 1107 188
Email : info@raystechglobal.com
5.12kWh
Capacity
The test of shear
PV Array
Battery
Unit 12, ABC BUSINESS PARK, 17 MASTIFF ROAD
LINBRO BUSINESS PARK, SANDTON, JOHANNESBSURG
2065 SOUTH AFRICA
1.5C
7680W
Discharging Rate
Peak Power
The test of acupuncture
UPS CAN
Inverter
Back-up Loads
Increase 8%
Energy Density
The test of squeeze
Meter
Grid
On-grid Loads
Advertisement
Related Manuals for RAYSTECH RT5120
Summary of Contents for RAYSTECH RT5120
- Page 1 First Solid-State S T O R A G E Lithium-ion Battery ESS RT5120 Higher Safety Protection Faster Dis/Charging Speed High Inverter Compatibility Intelligent Built-in BMS 16pcs Connections in Parallel FEATURES 6000 Solid-State 5.12kWh 1.5C 7680W Increase 8% Cycle Life@25°C LFP Battery Cells...
-
Page 2: Technical Specifications
CE/TUV Hazardous Material Classification Transportation UN 38.3 10 years warranty, 6000 cycles life Product Warranty Testing conditions based on temperature 25 ℃ at the beginning of life. *Total Energy/Usable Energy measured under specific conditions from RAYSTECH 0.5C CC-CV. Compatibility DEYE/MAGAREVO/GROWATT/LUXPOWER/Voltronic/Victron/Sofar/Solis/Goodwe/INVT/Thinkpower/TBB/Sermatec/Growatt/Afore/SMA/Solinteg/Sol-ark/AISWEI/EPEVER... - Page 3 RT-5100S...
- Page 4 Safety Up to 8 Parallel Cycle Life LFP(Lithium ion Flexible to increase 80% of initial capacity Phosphate) the capacity without any other after 6000 highest safety equipments or settings WiFi & APP Installation High-precision SOC Integrated WiFi Modem Simple buckle fixing Accurate sampling of voltage OTA online upgrade convenient minimize the installation...
- Page 5 Thank you for purchasing our product. Please read this manual carefully before using it, and operate it strictly in accordance with the product manual. After reading it, please keep it in a safe place for future reference.
-
Page 6: About Operation
Warning About operation Before using the product, please read the product specification, instruction manual and precautions carefully to understand the use method and application scope of the product. If the product is used incorrectly, the circuit is connected incorrectly, the input power or the load function parameters do not match the performance parameters marked in the product specification, etc., these phenomena are improper use. - Page 7 RT S, S Pro series Battery Series & Parallel Guidance 1. Batteries cannot be used in mixed batches, only the same batch can be used in series or parallel 2. Each battery must be fully charged before the batteries are connected in series or in parallel, and the voltage difference of the battery pack should be within 100mV 3.
- Page 8 S, S Pro product Series parameter table Single battery rated voltage/V 12.8V 12.8V 12.8V 25.6V 25.6V 51.2V Rated capacity of a single 50Ah 100Ah 200Ah 100Ah 200Ah 200Ah battery/Ah Single battery standard charging current/A Maximum discharge current of a 100A 100A 100A 100A...
- Page 9 Parallel dialing BatteryQty 2pcs 3pcs 4pcs Master Series dialing BatteryQty 2pcs 3pcs 4pcs Master...
- Page 10 S Pro battery indicator operating status description The green indicator light flashes The battery is working normally every 1S The green indicator light flashes The battery is faulty and the corresponding fault code is rapidly at high frequency displayed on the screen The indicator light off The battery is off and not working S Series Common Fault Codes and Solutions...
- Page 11 Disconnect the load, move the battery away from Battery over temperature the heat source, and restart the battery after the temperature drops to the ambient temperature. Disconnect load, wait battery Battery under temperature temperature rise to the ambient temperature, then restart the battery.
- Page 12 Warranty of RT LFP Battery This warranty specified below applies to RT LFP battery to consumer through authorized reseller or RT. The accessories and tool kits provided are not included. If the unit suffers major failure you will be provided with a replacement unit and your warranty will be transferred to the new unit.
- Page 13 Warranty may be claimed. Documentary evidence in support of such claim will be required. Exclusions of Warranty Damage or impairment to the Products resulting from any of following activities are NOT covered by this Warranty: Installation or use with any devices not approved as compatible by RT. ...
- Page 14 RT guarantees that RT LFP battery will retain more than or equal to 70% of usable capacity(80%of Nominal capacity） for 2 years or 1500 cycles @80% DOD whichever comes first.The Warranty commences from:- the date of installation or the 180th day after date the Product was manufactured, whichever is earlier. Capacity measurement condition (referenced IEC: 62619) Ambient temperature: 25 ±...
- Page 15 In the event the Product is out of warranty, RT may (in its discretion) provide certain after-sales service to Original Buyer, but all the costs and expenses, such as parts, labour costs and travel expenses, shall be borne by Original Buyer. To request such after-sales service Original Buyer must provide sufficient information about any defects, to enable RT Partner to determine whether such defects are capable of repair.
-
Page 16: Certificate Of Conformity
Certificate of conformity Inspectors:_________________________ Inspection date:_____________________ RAYSTECH (PTY) LTD. RAYSTECH (PTY) LTD. This user manual is applicable to RAYSTECH LFP Battery S, S Pro series battery which produced after May 2022... - Page 17 Confidential Compatible Inverter List Low voltage storage system Type PCS Display Brand of Inverter Communication CFE software version LXP - (3-5) K hybrid Lux Power GENERA L S5-EH1P(3-6)K-L,RAI-3K-48ES-5G Solis General GENERA L Kehua General SPH3 600- 5000 GENERA L Sofar All series General GENERA L...
