armen LIVING CARNABY Product Assembly Instructions

•

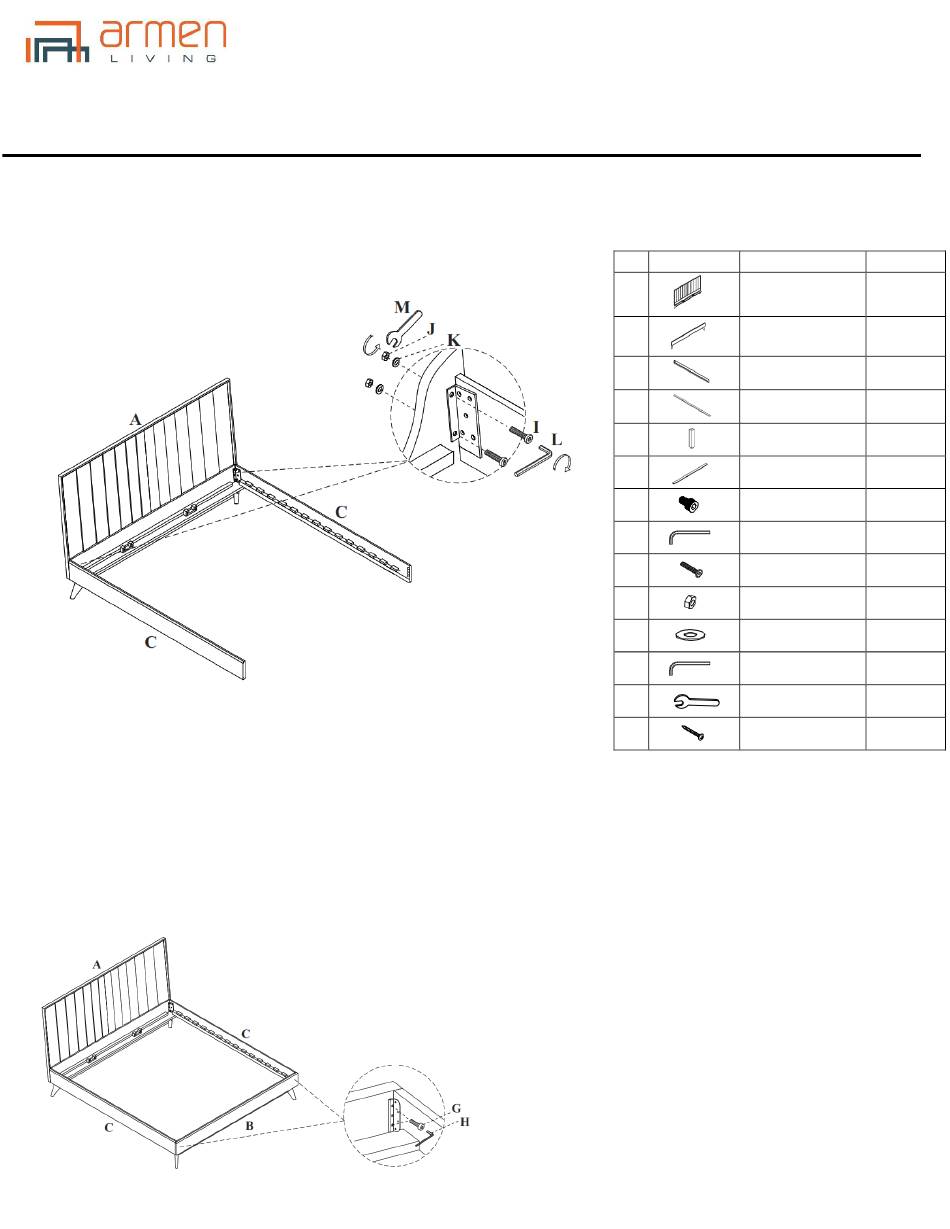

Step 1: Make sure it's on a safe surface where the bedframe cannot be scratched and or damaged and close
enough to the location
•
Step 2: Locate the headboard and the two side rails, as these will be the first to be attached.
•
Step 3: Using the Spanner and Allen Key you will screw in the headboard and the side rails using (2 Hex Nuts; 2 Flat
Washers; 2 Bolt – M8 x 40mm) for each side rail. First place the bolt on the interior of the frame using the Allen Key
following by screwing in the nut and washer on the exterior to tighten the bolts with the spanner.
i. Repeat for each sideboard and make sure it's firmly attached to the headboard.
PRODUCT ASSEMBLY INSTRUCTIONS
Instructions

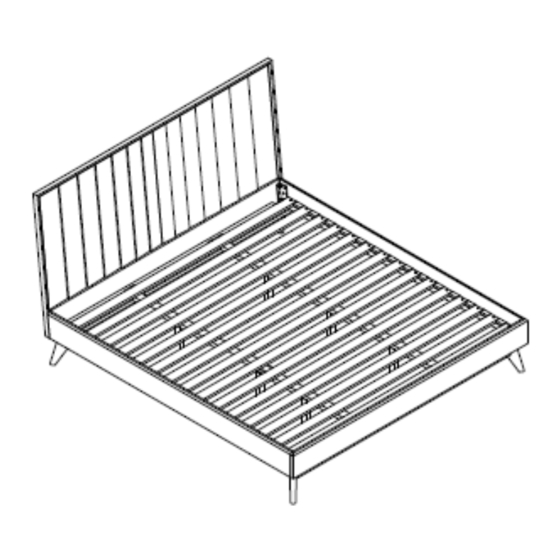

Item#: CARNABY KING BEDFRAME
Helpers needed to assemble: 2
Estimate time frame to assemble: 1 Hour
Tools Needed not Included: Phillips Screwdriver
# Picture
A
B
C
D
E
F
G
H
I
J
K
L
M
N
•
Step 4: Locate the footboard as this will be assembled
onto the preassembled heard board and rails.
•
Step 5: Using the Allen Key you will screw in the
footboard and the side rails using (2 Bolt – M6 x
10mm). First place the bolt on the interior of the frame
using the Allen Key screw in the bolts until firmly
attached.
i. Repeat for each sideboard and make sure it's
firmly attached to the footboard.
Description Quantity
Headboard
Footboard
Siderail
Middle rail
Leg
Slat Frame 15
Bolt – M6 x 10mm
Allen Key – M5
Bolt – M8 x 40mm 10
Hex Nut
Flat Washer 10
Allen Key – M4
Spanner – M13
Screw – M4 x 30mm 34
1
1
2
1
4
4
1
4
1
1
