INSTALLING THE MOUNTING BAR

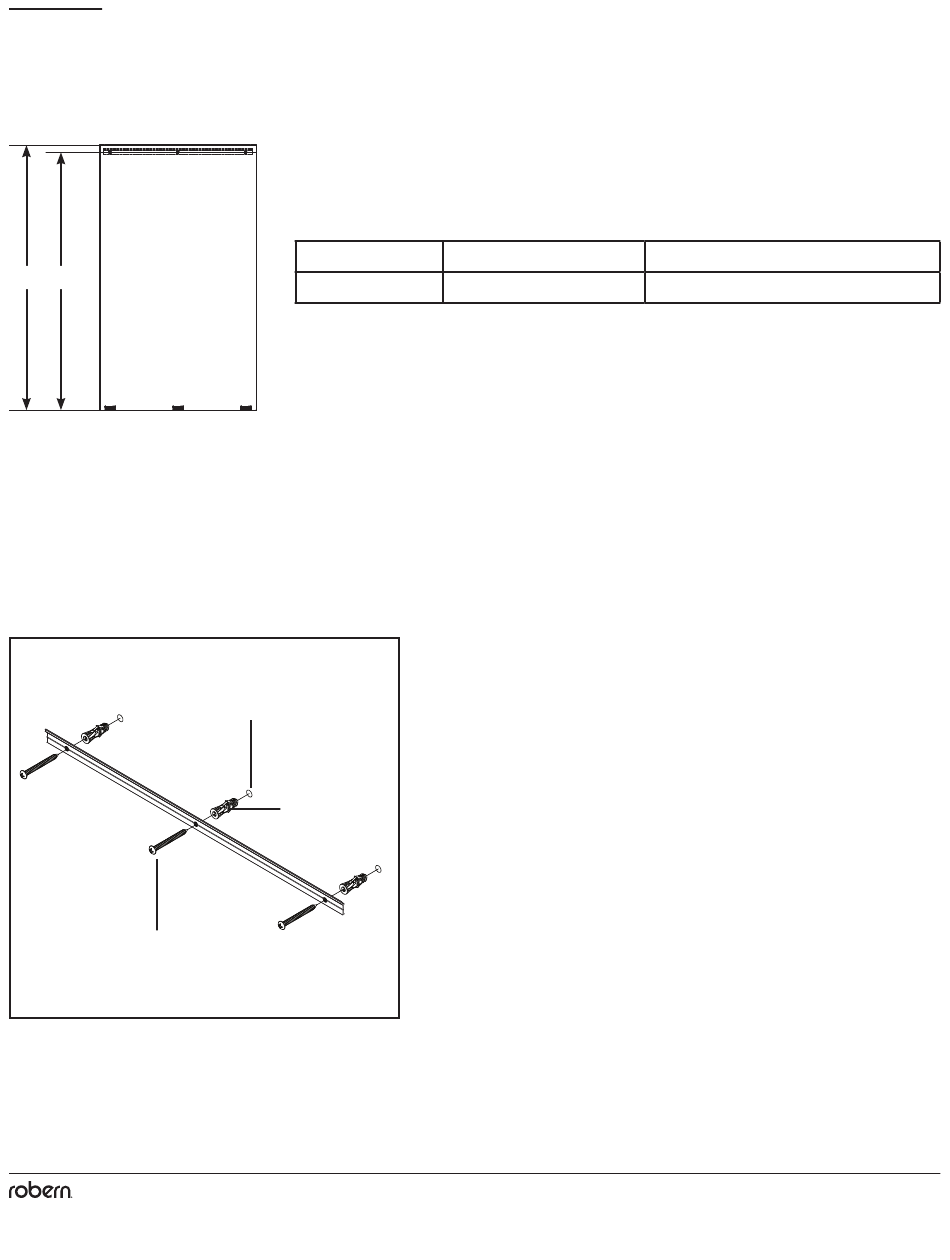

3. Center Z Mounting Bar at cabinet location. Make sure cabinet will be mounted at least 1" (25mm) above fixtures. See the table below
for mounting bar height based on your specific cabinet model.
Cabinet Height (A) Overall Cabinet Height (B) Height of mounting bar hole locations
A B
72 72" (1829 mm) 70-7/8" (1800 mm)
4. Make sure that the mounting bars are level when securing it to the wall. Use #10 X 2" screws [SS674] provided to attach the
mounting bar to the wall. Pre-drill a 3/32" (2 mm) pilot hole if going into a stud.
5. If no stud or structural member is available, use the provided wall anchors [203-1349], making sure that each cabinet is supported by at
least 2 anchors. Drill a 5/16" (8 mm) hole for wall anchors and insert the wall anchor into hole until the anchor flange is flush with the wall.
6. Use #10 X 2" screws [SS674] and tighten until there is a strong resistance. DO NOT OVER TIGHTEN.
6
5/16"
(8 mm)
203-1349
SS674
