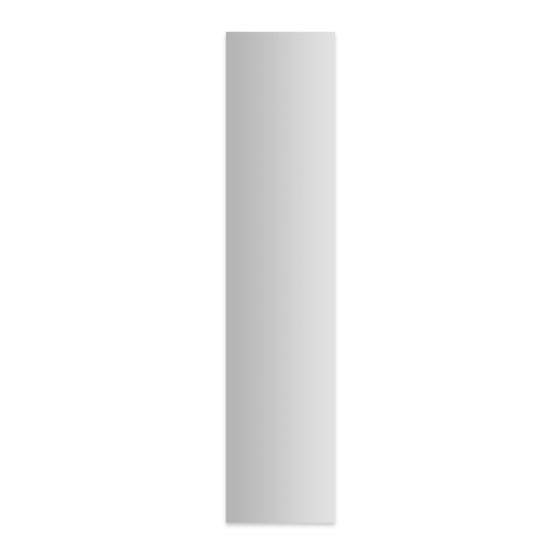

Robern P2C1672D4FPSC Mounting Instructions

CONTENTS
Safety - 2
Tools needed - 3
Parts - 3
Accessories - 4
Dimensions - 5
Recess Mounting - 6
Final Assembly - 9
Use and Maintenance - 10
Warranty - 10
GENERAL INFORMATION
This instruction manual contains information on how to recess mount the PL Portray Full Length Cabinet. This series comes in many
sizes. Refer to the specific model numbers for dimensions. These cabinets are modular and can be mounted with lighting.
Read the specific instruction for how your cabinet(s) will be mounted. The cabinets can be surface mounted or recess mounted.
Save these instructions for future use and reference. An improper installation voids the warranty. Installed cabinets cannot be returned.
If you experience any problems with your cabinet, contact your dealer or Robern directly.
Limited Warranty - One Year Term
* For surface mounting and other installation instructions, see page 4.
© 2021 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
PL PORTRAY FULL LENGTH CABINET
RECESS MOUNTING INSTRUCTIONS*
Important safety instructions - Save these instructions
1
Scan the
QR code to
see the entire
PL Portray
Cabinet series.
Use the camera app on your
mobile device to look at this and
other QR codes. This will allow
you to quickly access web pages
and other relevant documents.
Part no. CB-209-1369 3/29/21
PL Portray Full Length Cabinet
