aspenhome
ah

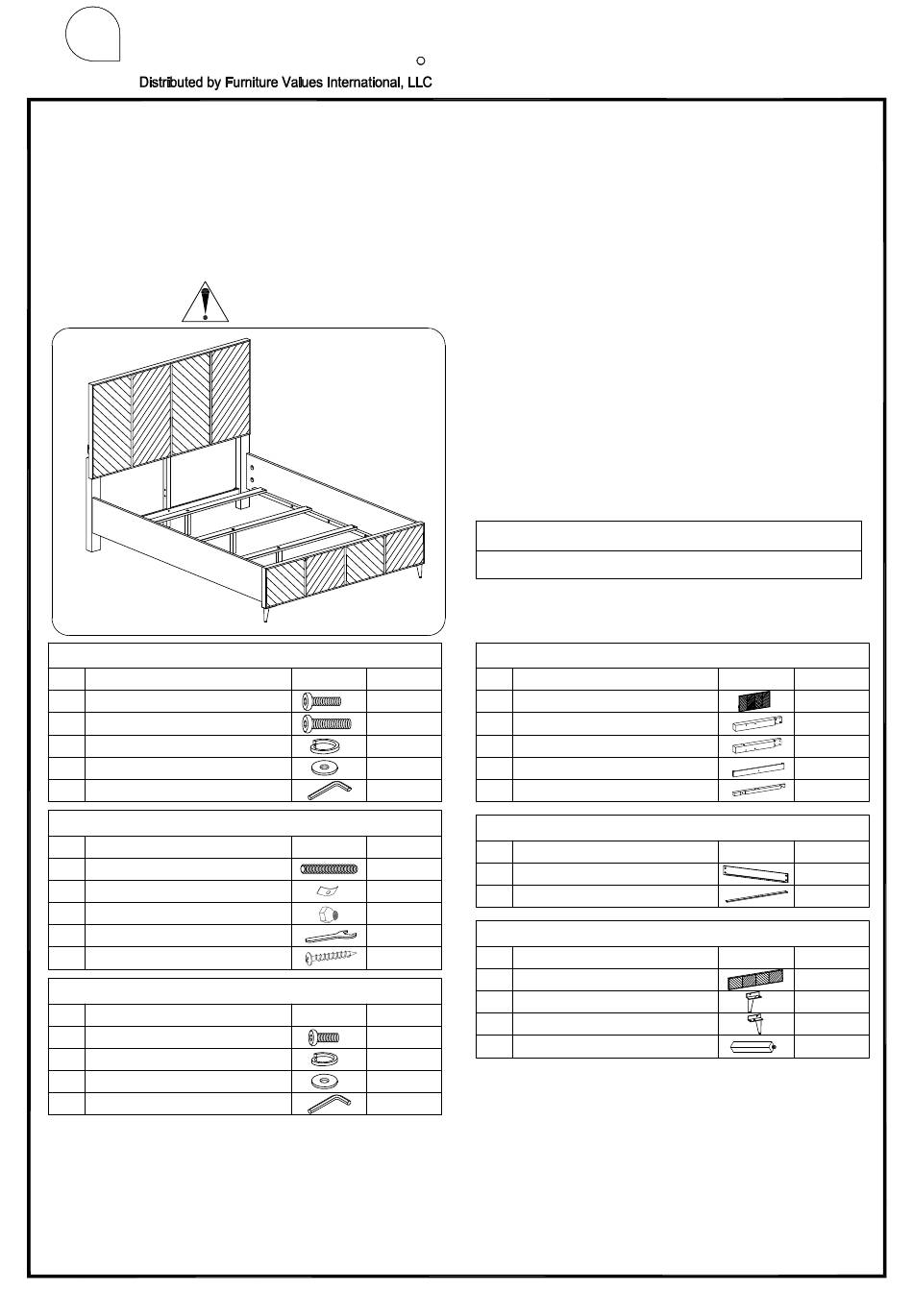

ITEM NO: I644-412
I644-402
I644-403
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
I644-412
I644-402
HARDWARE LIST: I644-412
Description
No.
Bolt Ø5/16" x 1-1/2"
A
Bolt Ø5/16" x 2"
B
Lock Washer Ø5/16"
C
Flat Washer Ø5/16" x 3/4"
D
E
Allen Wrench 4mm
HARDWARE LIST: I644-402
Description
No.
Hanger Bolt Ø5/16" x 3"
F
Half Moon Washer Ø5/16"
G
Hex Nut Ø5/16"
H
I
Hex Wrench 12mm
J
Wood Screw #8 x 1-1/4"
HARDWARE LIST: I644-403
Description
No.
Bolt Ø5/16" x 1"
K
Lock Washer Ø5/16"
L
Flat Washer Ø5/16" x 3/4"
M
N
Allen Wrench 4mm
BEFORE USING THIS PRODUCT PLEASE READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
Save these instructions for future reference.
Page 1/4
Queen Panel HB
Queen Rails
Queen Low Profile FB
UNIT SHOULD BE INSTALLED BY 2 OR MORE PERSONS.
I644-403
Quantity
Sketch
2 PCS
10 PCS
12 PCS
12 PCS
1 PC
Quantity
Sketch
8 PCS
8 PCS
8 PCS
1 PC
8 PCS
Quantity
Sketch
6 PCS
6 PCS
6 PCS
1 PC
FOR INDOOR USE ONLY
MADE IN VIETNAM
ASSEMBLY INSTRUCTIONS
R
All Beds need to be set up in the exact final
location so that after full assembly it will not
need to be moved. Moving the bed will cause
the support legs to move out of perpendicular
(90 degree), weaken the support system, and
may allow the bed to collapse.
TOOLS REQUIRED (NOT PROVIDED)
PHILLIPS SCREWDRIVER
COMPONENTS LIST: I644-412
Description
No.
1
Headboard (HB)
2
Left Leg
3
Right Leg
4
Wood Stretcher
Center Support Leg
5
COMPONENTS LIST: I644-402
Description
No.
1
Bed rails
Slats
2
COMPONENTS LIST: I644-403
Description
No.
Footboard (FB)
1
Metal Leg Left
2
Metal Leg Right
3
Support Leg (for slat)
4
Quantity
Sketch
1 PC
1 PC
1 PC
1 PC
1 PC
Quantity
Sketch
2 PCS
4 PCS
Quantity
Sketch
1 PC
1 PC
1 PC
4 PCS
08-04-2023
