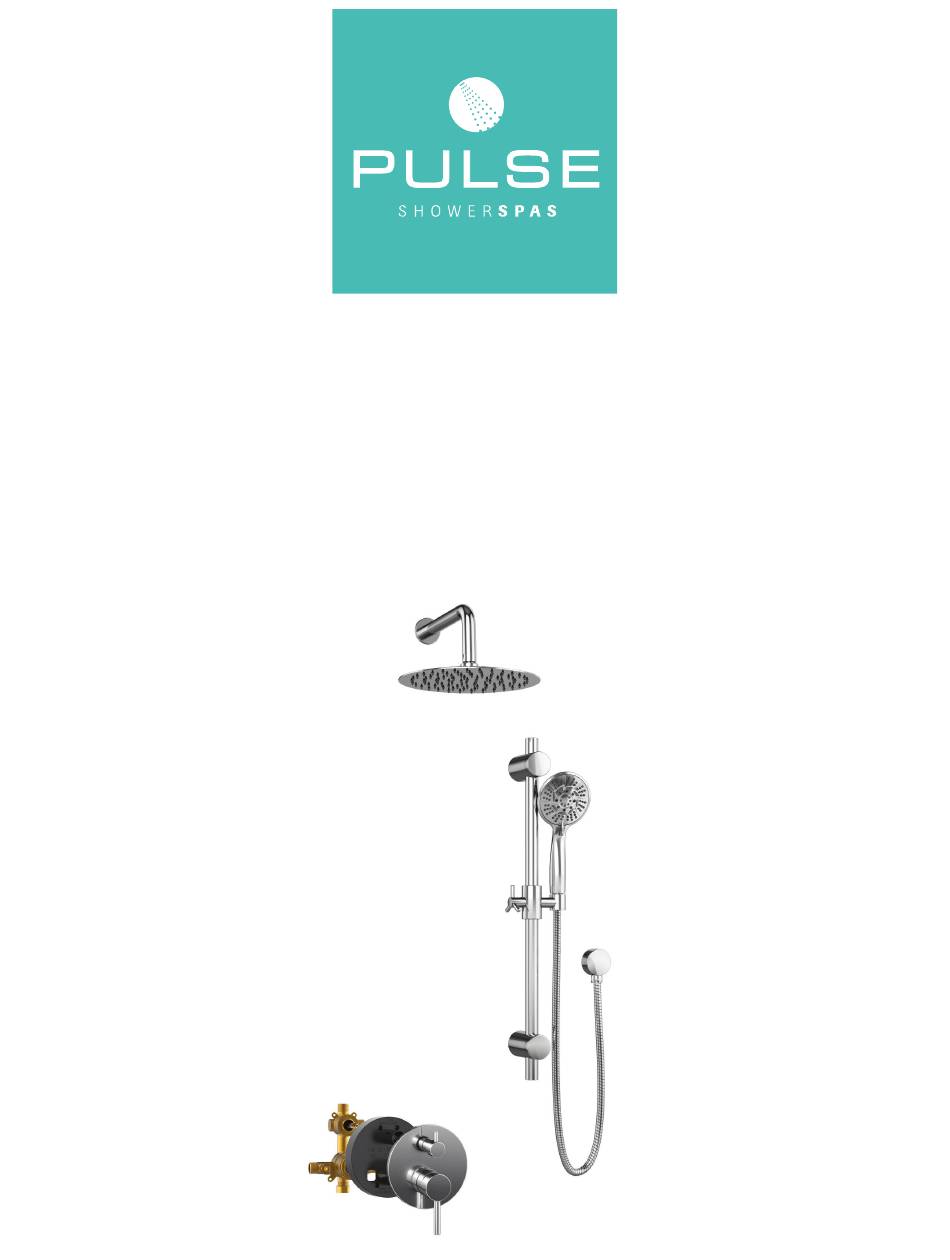

- Page 1 Refuge Combo Shower System Model #3006-BN, 3006-CH, 3006-MB, 3006-ORB Model #3006-BN-1.8GPM, 3006-CH-1.8GPM, 3006-MB-1.8GPM, 3006-ORB-1.8GPM PW-93006-8125BRN, PW-93006-8125CP, PW-93006-8125BM, PW-93006-8125BRZ PW-93006-8118BRN, PW-93006-8118CP, PW-93006-8118BM, PW-93006-8118BRZ Owner's Manual...
- Page 2 Refuge Combo Shower System Please Read The Following Instructions COMPLETELY Before Beginning! Our goal is to ensure your installation goes smoothly and safely. Please read these instructions carefully and follow recommendations for plumbing and mounting. After reading instructions, if you determine you do not have the necessary skills and/or tools, we recommend that a licensed plumbing contractor complete the installation.
- Page 3 Parts Legend 1. Showerhead 9. Handshower 17. Valve Cartridge Sleeve 2. Washer.......(3) 10. Slide Bar 18. Valve Cartridge Nut 3. Shower Arm 11. Wall Connector 19. Valve Trim 4. Escutcheon 12. Nipple 20. Diverter Handle 5. Cap 13. Handshower Holder 21.
- Page 4 Installation Instructions removable without tub installation Confirm the installation position and remove the Drill screws to stud to fix main valve body. plaster guard. without tub installation with tub installation If there is a bath tub, remove the tub spout cap. Connect the supply line to the valve, turn main water valve on and confirm there is no water leakage.
- Page 5 Installation Instructions finished wall Step 2 finished wall Step 1 Step 1 Step 2 Step 1 Step 3 Step 2 trim plate [Step 1] Choose desired position and drill wall anchors After finished wall, install valve trim plate. into finished wall. Drill in gasket, and mounting screws We recommend caulking around the trim.
- Page 6 Installation Instructions Cold Showerhead While ON, turn valve handle to the left for HOT and right for COLD. DIVERTER FUNCTIONS: Showerhead Showerhead water ON water ON water ON Diverter handle facing up for showerhead. Hand Shower Hand Shower Product fully assembled Hand Shower OPERATION: VALVE FUNCTIONS:...
- Page 7 C h e m i c a l s O r Ab r a s i ve s ! MANUFACTURER'S LIFETIME LIMITED WARRANTY 1. Defects Covered; Warranty Period: Pulse Shower Spas, 5. No Other Warranties; Limitation of Liability: OTHER Inc. (“Pulse”) warrants to the original consumer purchaser THAN THE LIFETIME LIMITED WARRANTY STATED who purchases this shower spa (the “Product”) for use in...
- Page 8 NOTES PULSE ShowerSpas, Inc. | 297 Anna Street | Watsonville, CA 95076 | 831.724.7300 www.PulseShowerSpas.com PM-AA-05...
