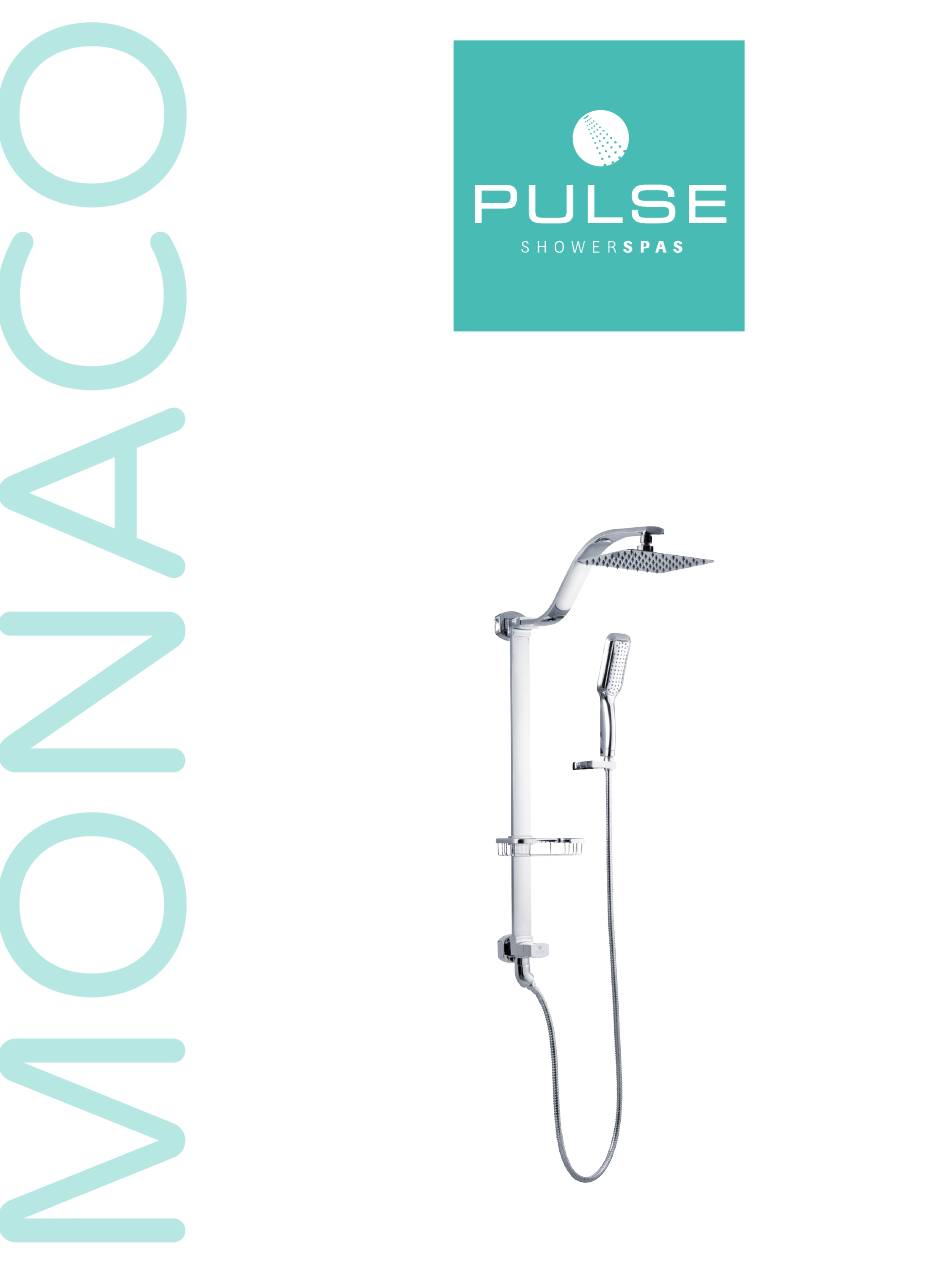

- Page 1 Monaco Rain Shower System Model #7005 - CH, 7005 - BN & 7005 - ORB Owner's Manual...
- Page 2 Monaco Shower System Model #7003 Please Read The Following Instructions COMPLETELY Before Beginning! Our goal is to ensure your installation goes smoothly and safely. Please read these instructions carefully and follow recommendations for plumbing and mounting. After reading instructions, if you determine you do not have the necessary skills and/or tools, we recommend that a licensed plumbing contractor complete the installation.
- Page 3 Monaco Shower System Parts Legend 1. Nipple 9. Shower Head 17. Diverter Cartridge 2. Inlet Fitting 10. Hand Held Holder 18. Diverter Handle 3. Escutcheon 11. Soap Dish 19. Hose 4. Set Screws 12. Swivel Joint 20. Hand Shower 5. Top T 13.
-
Page 4: Before You Begin
Installation Instructions BEFORE YOU BEGIN Measure the following to ensure your Monaco Shower System will fit properly. New Construction Retrofit 30” minimum 30” minimum Make sure distance from water outlet and Remove existing shower arm and shower head. mixing valve trim (NOT INCLUDED) is a minimum 30"... - Page 5 Installation Instructions Step 1 Step 2 Step 1: Apply plumber's tape to the nipple (1). Step 2: Screw Slide soap dish (11) onto shower bar (7) from top. nipple (1) into pipe making sure you have 1/2" extending beyond finished wall surface. NOTE: If supplied 2" nipple (1) is not correct length you must obtain correct size NPT brass nipple (sold separately), available at most hardware stores.
- Page 6 Installation Instructions Drill-less option Step 2 Step 1 CAUTION: Live Plumbing Step 1: Slide escutcheon (3) onto Top T (5). Drill-less option: Remove covering adhesive tape (14) and Step 2: Connect Top T (5) with inlet fitting (2). stick to wall. Hold for 30 seconds and let sit for 24 hours before use, to properly secure.
- Page 7 Installation Instructions Unscrew set screw (4) and remove handheld holder mount (23). CAUTION: Live Plumbing Step 1 Step 2 Step 1: Position handheld holder mount (23) on desired location and secure with screw (15). Position the second Product Fully Assembled handheld holder wall mount (23) next to the first one and secure with screw (15).
- Page 8 MANUFACTURER'S LIFETIME LIMITED WARRANTY 1. Defects Covered; Warranty Period: Pulse Shower Spas, 5. No Other Warranties; Limitation of Liability: OTHER Inc. (“Pulse”) warrants to the original consumer purchaser THAN THE LIFETIME LIMITED WARRANTY STATED who purchases this shower spa (the “Product”) for use in...
