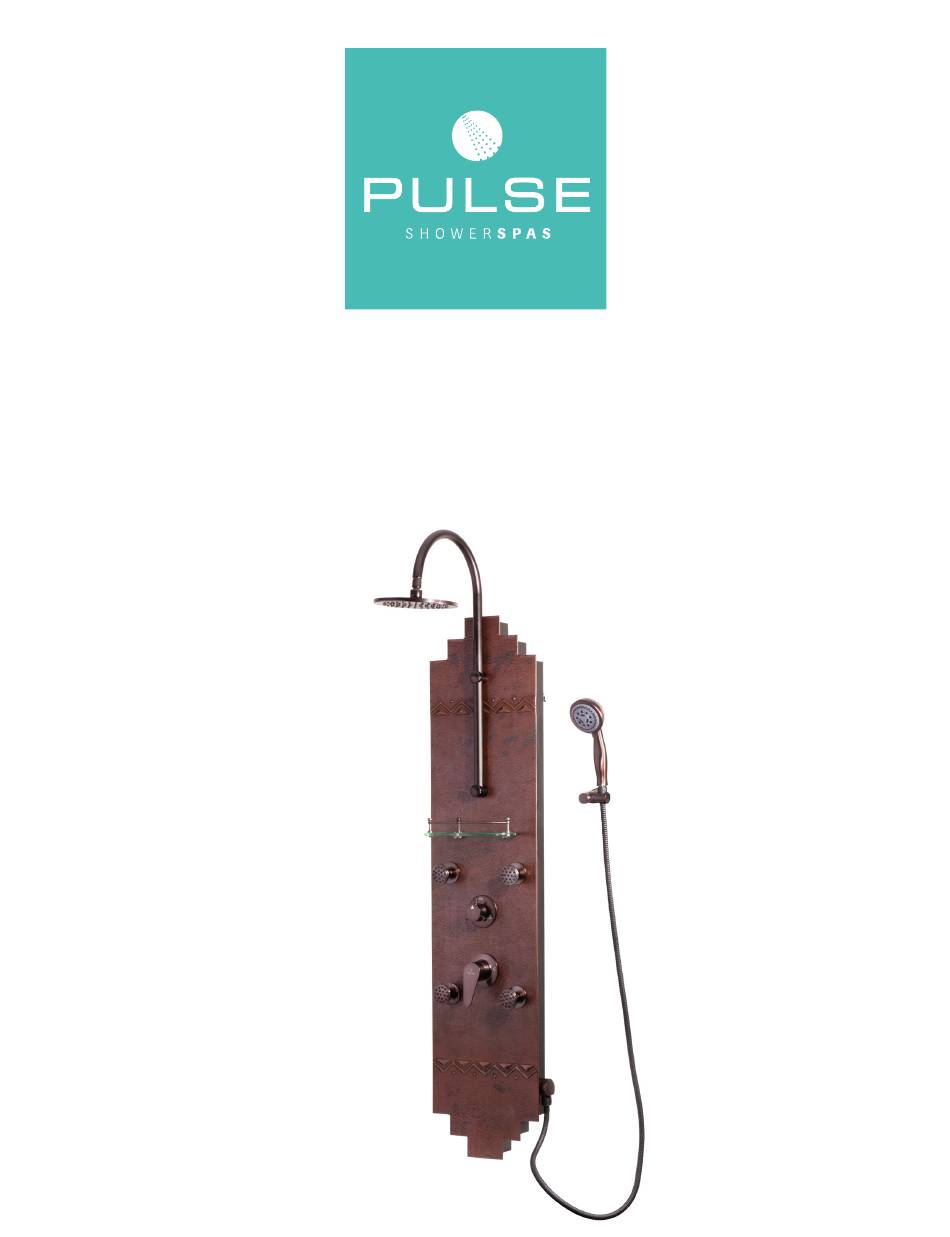

- Page 1 Navajo ShowerSpa Model #1018 PW-91018-5125HCO Owner's Manual...
- Page 2 Navajo ShowerSpa Model #1018/PW-91018-5125HCO Please Read The Following Instructions COMPLETELY Before Beginning! Our goal is to ensure your installation goes smoothly and safely. Please read these instructions carefully and follow recommendations for plumbing and mounting. After reading instructions, if you determine you do not have the necessary skills and/or tools, we recommend that a licensed plumbing contractor complete the installation.
- Page 3 Mounting Bracket & Stub-out Location 8" 25" Estimated Mounting Height And Stub-out Location For Individuals 5'8"– 6'2" 90˚ Fittings Not Included 56" 4" Mark Bottom Of ShowerSpa Where It Contacts The Wall 31" 24" Floor...
- Page 4 Parts Legend 1. ShowerSpa 9. Handshower Hose 17. Rubber Washer ....(4) 2. Shower Arm 10. Handshower Holder 18. Glass Shelf 3. Showerhead 11. Mounting Screw A 19. Shelf Mount ....(2) 4. Large Rubber Washer... (2) 12. Nylon Anchor A 20.
- Page 5 Assembly After Unpacking Your ShowerSpa, Some Assembly Is Required Prior To Installation Shower Arm Assembly Figure A 1. Before installing the shower arm (2) you need to align the mounts to the shower arm outlets (6). Loosen set screw (21) inside the top mount of the shower arm (2) with a 4mm allen wrench.
-
Page 6: Installation
Installation New Construction or Extensive Remodel – New Finished Wall Surface 1. Prior to sheetrock, stub-out ½" hot and cold supply lines NOTE—Before drilling holes for the bracket, make certain beyond finished wall surface, 4" on center. For best results, Showerspa will rest flat against finished wall surface at the attach 90°... -
Page 7: Care And Maintenance
Usage Pressure Balance Mixing Valve This ShowerSpa is eqiuipped with a cUPC® pressure balance mixing valve to adjust water flow and temperature. The valve automatically adjusts to changes in water pressure (i.e. someone flushes a toilet), keeping your temerature constant and preventing accidental scalding. To turn on the ShowerSpa simply raise the handle until the desired flow rate is achieved. - Page 8 MANUFACTURER'S LIFETIME LIMITED WARRANTY 1. Defects Covered; Warranty Period: Pulse Shower Spas, 5. No Other Warranties; Limitation of Liability: OTHER Inc. (“Pulse”) warrants to the original consumer purchaser THAN THE LIFETIME LIMITED WARRANTY STATED who purchases this shower spa (the “Product”) for use in...
