- Page 1 MODEL # CM3244-T Questions? GIVE US A CALL: 1-888-980-5122 MON – FRI 8:30AM – 5:30PM (PT) TOOLS REQUIRED 2 - People Recommended ASSEMBLY RATING EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 7...

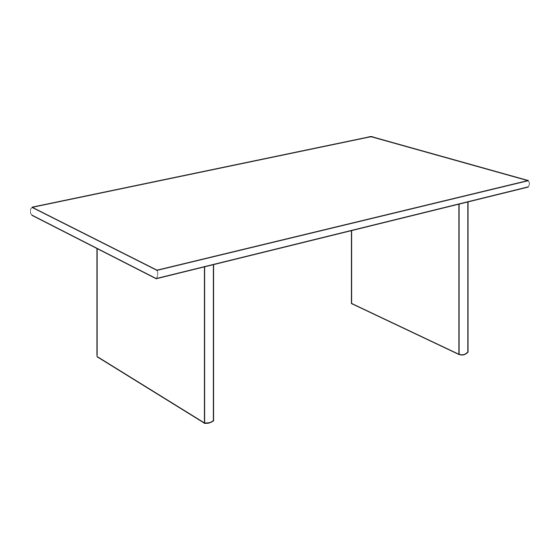

- Page 5 DINING TABLE CM3244-T PARTS 2pcs 2pcs Table Top Table Base Cross Bar HARDWARE 4pcs 12pcs 4pcs 12pcs JCBB Bolt Pan Head M8 Spring Metal Plate M5 Allen M4 x 45mm Wrench M8 x 20mm Washer 5 / 7...
- Page 6 ASSEMBLY INSTRUCTIONS Part #2 x 2pcs Part #3 x 2pcs Place Cross Bar (#3) unto Table Base (#2) Hardware #A x 4pcs Hardware #C x 4pcs Hardware #D x 4pcs Secure Metal Plate (#D) with JCBB Bolt (#A) and Washer (#C) 6 / 7...
- Page 7 Attach Table Top (#1) to Cross Bar (#3) using Pan Head Screw (#B). Attach Metal Plate (#D) using JCBB Bolt (#A) Part #1 x 1pc with Washer (#C) Hardware #A x 8pcs Hardware #B x 4pcs Hardware #C x 8pcs 7 / 7...
