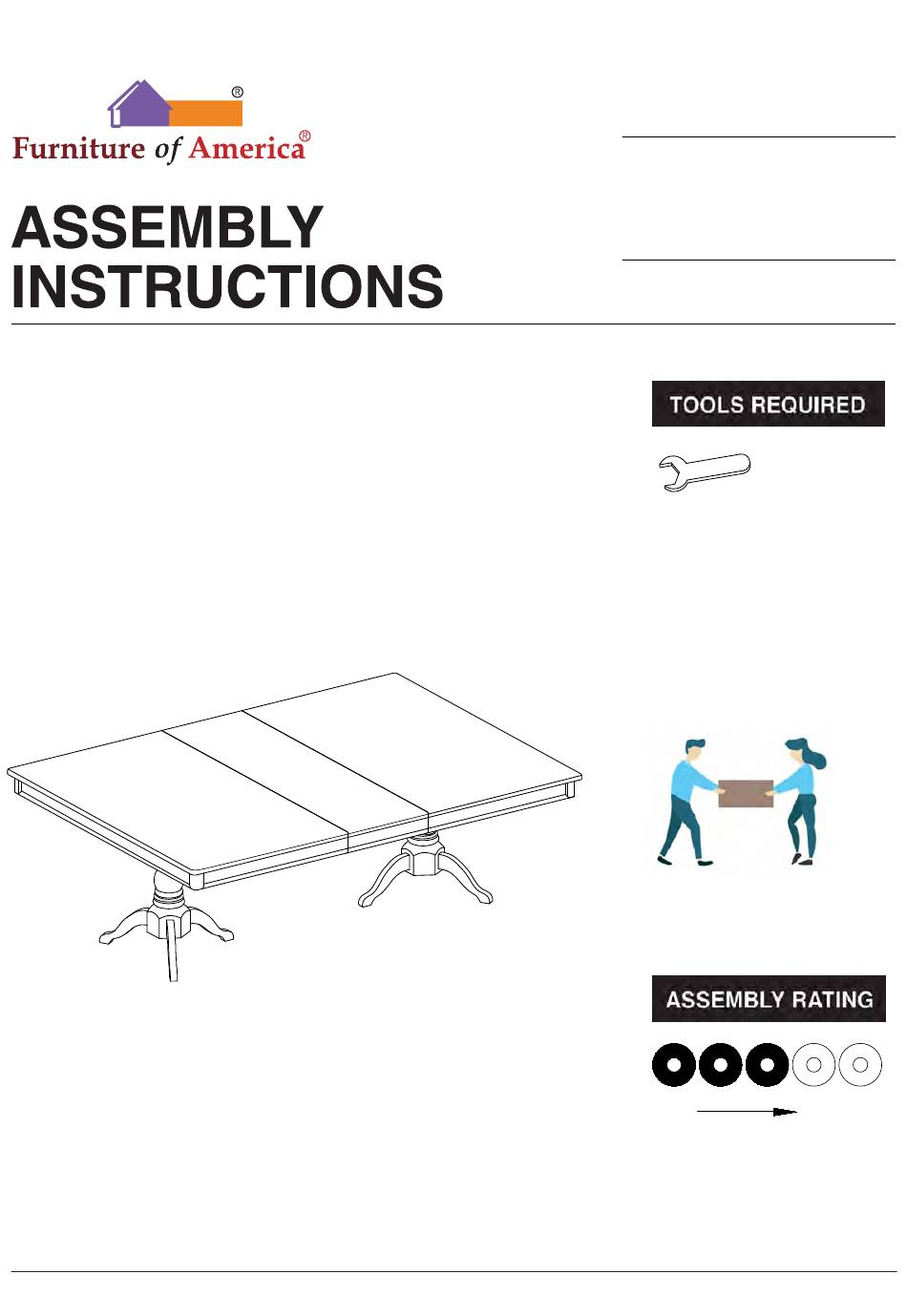

VERSION # 21-07-08
1 / 9
MODEL #
CM3224T-T/B
Questions?
GIVE US A CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PT)
Wrench
(Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America St. Nicholas CM3224T-T/B
Summary of Contents for Furniture of America St. Nicholas CM3224T-T/B
- Page 1 MODEL # CM3224T-T/B Questions? GIVE US A CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PT) Wrench (Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product. VERSION # 21-07-08 1 / 9...
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X 9...
- Page 5 DINING TABLE CM3224T-T/B #1 1pc #2 1pc #3 2pcs Leaf Table Top Plate #5 6pcs #4 2pcs Post #C 18pcs #B 18pcs #A 18pcs #D 1pc Flat Washer Lock Washer Hex Nut Wrench Ø5/16" Ø5/16" Ø5/16" x 1/2" 5 / 9...
-
Page 6: Exploded View
Exploded View 6 / 9... - Page 7 CM3224T-T/B is packed in 2 cases Carton Disignation Part Hardware Table Top Leaf #A x18pcs #B x18pcs CM3324T-T #C x18pcs #D x1pc Plate CM3324T-B Post 7 / 9...
- Page 8 ASSEMBLY INSTRUCTIONS I. Insert the threaded ends of the legs (#5) into the pre-drilled holes along the sides of the post (#4). II. From within the post (#4), insert a flat washer (#C) then lock washer (#B) Part #4 x1pc and a nut (#A), in that order onto the threaded ends.
- Page 9 ASSEMBLY INSTRUCTIONS To insert or remove the leaf (#2), unlock/lock the latches from under the table top. Part #2 x1pc Carefully turn the completed table upright. Make sure the table is rested on a flat surface and does not feel loose or wobbly. If it does, double check that the bolts are secured and properly tightened. Adjusting table leg 9 / 9...
