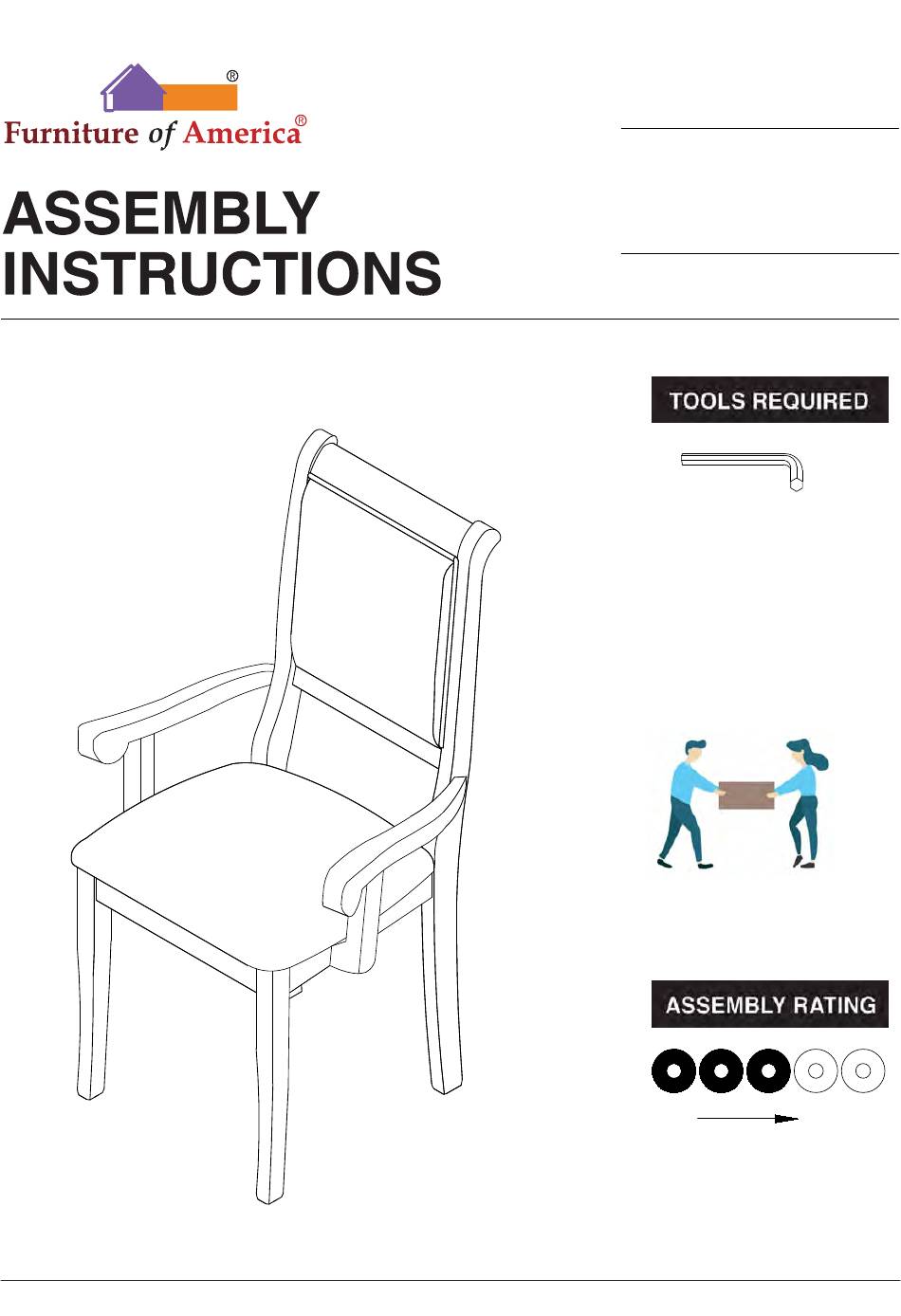

VERSION # 21-07-08
1 / 9
MODEL #
CM3224AC-2PK
Questions?
GIVE US A CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PT)
Allen Wrench
(Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM3224AC-2PK
Summary of Contents for Furniture of America CM3224AC-2PK
- Page 1 MODEL # CM3224AC-2PK Questions? GIVE US A CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PT) Allen Wrench (Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 9...
- Page 5 ARM CHAIR CM3224AC-2PK #1 1pc x 2 #3 2pcs x 2 #4 2pcs x 2 #2 1pc x 2 Front Leg Arm Chair(L/R) Backrest W/Legs Seat #C 2pcs x 2 #D 4pcs x 2 #A 4pcs x 2 #B 4pcs x 2...
- Page 6 Exploded View 6 / 9...
- Page 7 ASSEMBLY INSTRUCTIONS I. Carefully place the backrest with legs (#1) onto a protected surface. II. Align the seat (#2) to the pre-drilled holes on the backrest with legs (#1). III. Prepare 2 bolt assemblies by FIRST inserting the lock washer (#E) onto the bolt (#C) then the flat washer (#F) onto that SAME bolt (#C), in that order.
- Page 8 ASSEMBLY INSTRUCTIONS I. Align the front legs (#3) to the two front corners of the seat (#1). II. Prepare 4 bolt assemblies by FIRST inserting the lock washer (#D) onto the bolt (#B) then the flat washer (#E) onto that SAME bolt (#B), in that order. Insert bolt assemblies into the pre-drilled holes on the inner part of the seat and secure using the Allen wrench (#F).
- Page 9 ASSEMBLY INSTRUCTIONS 9 / 9...
