VERSION
# 20-05-2 9
1 / 7

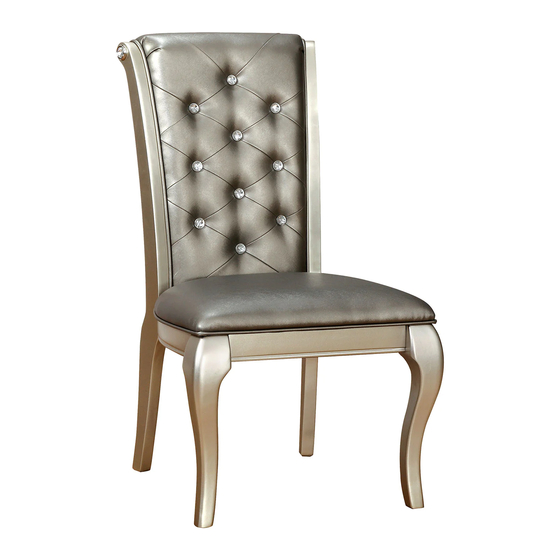

MODEL #
CM3219SC-2PK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM3219SC-2PK
Summary of Contents for Furniture of America CM3219SC-2PK
- Page 1 MODEL # CM3219SC-2PK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 7...
- Page 5 CHAIR CM3219SC-2PK 1pcx2 1pcx2 2pcsx2 Chair Back Cushion Seat Front Leg 2pcsx2 4pcsx2 4pcsx2 10pcsx2 Bolt Ø1/4" x 1-1/2" Bolt Ø1/4" x 2-3/8" Bolt Ø1/4" x 3" Lock Washer Ø1/4" 10pcsx2 1pcx2 Flat Washer Allen Wrench 5 / 7...
- Page 6 ASSEMBLY INSTRUCTIONS 1.place the backrest w/legs (#1) onto a protected surface. Parts #1 x 1pc Parts #2 x 1pc Hardware #A x 2pcs Hardware #D x 2pcs Hardware #E x 2pcs 2.Prepare a bolt assembly 3.Align the seat (#2) to the hole by first inserting a lock along the backrest w/legs(#1), washer (#D) onto the...
- Page 7 ASSEMBLY INSTRUCTIONS 1.prepare 4 bolt assemblies by first inserting a lock washer (#D)onto the bolt (#B) then a flat washer (#E) onto that same bolt (#B). Hardware #B x4pcs Hardware #D x4pcs Hardware #E x4pcs 2.Align the front legs (#3) to the front corners of the seat (#2), then insert 2 bolt assemblies into each front corner.
