µEZ® GUI User's Manual
Covers the following products:
UEZGUI-1788-70WVM (Dev Kit)
UEZGUI-1788-70WVM-BA (Board Assembly)

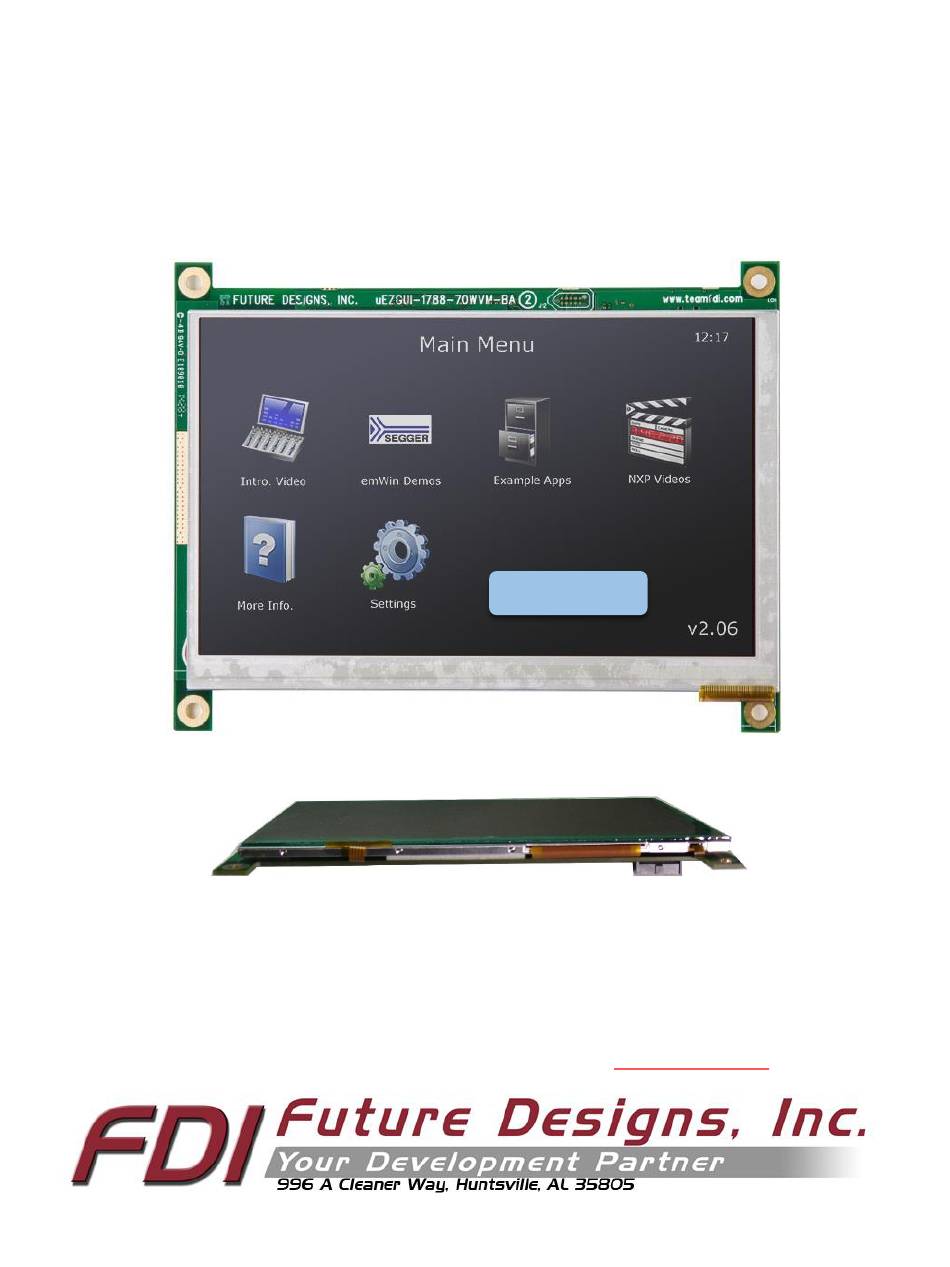

Example Display Images
shown for Reference Only
NOTICE: At FDI we are constantly improving our documentation. Please get the latest version of this
document in the documentation tab of the product page at www.TeamFDI.com
Copyright ©2016, Future Designs, Inc., All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the uEZ GUI and is the answer not in the manual?

Questions and answers

Related Manuals for FDI uEZ GUI

Summary of Contents for FDI uEZ GUI

  • Page 1 Example Display Images shown for Reference Only NOTICE: At FDI we are constantly improving our documentation. Please get the latest version of this document in the documentation tab of the product page at www.TeamFDI.com Copyright ©2016, Future Designs, Inc., All Rights Reserved...

  • Page 2: Table Of Contents

    U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e Table of Contents Introduction ___________________________________________________________ 5 Block Diagram __________________________________________________________ 5 Kit Contents (FDI PN: UEZGUI-1788-70WVM) _________________________________ 5 Useful links ____________________________________________________________ 6 Functional Description ___________________________________________________ 6 Startup procedure ______________________________________________________ 7 Demonstration Software Main Menu _______________________________________ 8...
  • Page 3 U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e J4 & J5 - Expansion Connector Cable Details ___________________________________________ 25 19.
  • Page 4 Information in this document is provided solely to enable the use of Future Designs products. FDI assumes no liability whatsoever, including infringement of any patent or copyright. FDI reserves the right to make changes to these specifications at any time, without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Future Designs, Inc.

  • Page 5: Introduction

    Human Machine Interface (HMI) in a variety of end customer applications. The miniature, self-contained design is well suited to embed directly into your product or FDI offers prepackaged versions. FDI also offers low cost customization services for customer specific hardware, software or packaging applications at volumes of 500 units or more.

  • Page 6: Useful Links

    U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e • 4 GB Micro SD card • USB Type A to USB Type Mini B Cable (2x) •...

  • Page 7: Startup Procedure

    U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e 6. Startup procedure The µEZ GUI kit comes with a pre-installed Micro SD card that contains files required for the slide show and videos to run.

  • Page 8: Demonstration Software Main Menu

    U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e 7. Demonstration Software Main Menu Note: The Demonstration Software is subject to change at any time. The following software demonstrations are available from the Main Menu: a) Example Apps Selecting the Example Apps icon will load the Example Applications Screen with the following options:...
  • Page 9 U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e Slideshow Selecting the slideshow icon will use the microSD card to read slideshow configuration. This allows the user to select between several slideshow options such as “EZ GUI Family Overview”, “Demonstration Pictures”, “uEZ Software Overview”, “Modular Development Kit”, etc.

  • Page 10: Setting Up A Slideshow

    μEZ® release or drivers are added to the system. For more information, see the Doxygen website: https://www.stack.nl/~dimitri/doxygen/. 11. µEZ Project Maker FDI has provided a project maker to help create new projects for EZ GUI hardware. It is available for download at https://sourceforge.net/projects/uez/. 3/20/2024 Revision 5...

  • Page 11: Software

    U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e | 11 To create a new project, download the application, run the executable file, and follow the onscreen instructions. It will create a demo project using an emWin example GUI that will provide basic peripheral functionality.

  • Page 12: Configuring Rowley Crossworks Crossstudio For Arm® For J-Link Flashing

    U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e | 12 13. Configuring Rowley CrossWorks CrossStudio for ARM® for J-Link Flashing ®...

  • Page 13: Configuring Iar Ewarm V6.30 For J-Link Flashing

    U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e | 13 7) Go back to menu Target and select “Connect Segger J-Link” 8) Compile the application and press F5 to download and start debugging.

  • Page 14: Functional Test Software

    U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e | 14 16. Functional Test Software The Functional Test Software tests all the basic features of the UEZGUI-1788-70WVM-BA Kit as follows. Functional Test is a step by step test of the following parameters: •...

  • Page 15: I/O Connector Descriptions

    U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e | 15 Figure 2 – UEZGUI-1788-70WVM-BA Component View 18.

  • Page 16: J12 - Tag Connect

    U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e | 16 Figure 3 – SEGGER J-Link Lite Cortex-M 9-Pin JTAG with pinout (Rev 2.X+) SEGGER and OLIMEX both provide adapters to convert the standard 20-pin JTAG to the new ARM 9-pin JTAG.

  • Page 17: J2 - Microsd Socket

    U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e | 17 J2 - MicroSD Socket When connected to the USB Host port on a PC, the UEZGUI-1788-70WVM-BA will appear as a USB Flash Drive to the PC, allowing the user to read and write files directly to the MicroSD card.
  • Page 18 U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e | 18 WARNING: The microSD card must only be removed using the spring loaded “push-pull” mechanism on the microSD socket.
  • Page 19 U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e | 19 To remove the microSD card, press the card back into the socket until another “click” sound is heard, then release pressure on the card.

  • Page 20: J1 - Isp Connector

    The UEZGUI-1788-70WVM-BA provides an ISP programming header. This header is designed to be utilized with the USB-ICP-LPC2K programmer from FDI. However the connector on the UEZGUI-1788-70WVM-BA is not directly compatible with the one used on the USB-ICP. This connector is a 1.25mm Hirose male, shrouded connector.

  • Page 21: J15 Pmod Type 2A Connector (Revision 2.0+ Only)

    U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e | 21 J15 PMOD Type 2A Connector (Revision 2.0+ only) The UEZGUI-1788-70WVM-BA includes a PMOD Type 2A (SPI) connection to an expansion board.
  • Page 22 U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e | 22 J4 Signal Details Pin Name Pin Description Ground (GND) Power...
  • Page 23 U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e | 23 Pin Name Pin Description I2STX_CLK - I2S transmit clock. It is driven by the master and received by the slave. P0.7_I2STX_CLK_SCK1_MAT 2.1 Corresponds to the signal SCK in the I2S-bus specification.
  • Page 24 U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e | 24 Pin Name Pin Description Ground (GND) Power P2.10_EINT0_NMI I/O - P2[10] - General purpose digital Input/Output pin.

  • Page 25: J4 & J5 - Expansion Connector Cable Details

    U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e | 25 Pin Name Pin Description P1.3_MCICMD-PWM0.2 P1[3] –...

  • Page 26: Schematics

    U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e | 26 19. Schematics Please see the FDI website at https://www.teamfdi.com/products/uEZGUI-1788-70WVM/sch/UEZGUI-1788-70WVM- BA_SCH_2.pdf for support documentation.
  • Page 27 U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e | 27 level retains the specified tolerance. If the µEZ GUI input level drops to 4.75VDC, then the µEZ GUI +5VDC output level to either the Expansion Board or the USB Host connector may be lower than 4.75VDC since the worst case drop from input to output is typically 0.25V.

  • Page 28: Mechanical Details

    U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e | 28 Mechanical Details The following illustrations show the mechanical details of the UEZGUI-1788-70WVM-BA PCB Figure 6 –Mechanical Layout Dimensions (Component View) 3/20/2024 Revision 5...

  • Page 29: Dimension Comparison Between 70Wvt And 70Wvm Models

    U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e | 29 Dimension comparison between 70WVT and 70WVM models 3/20/2024 Revision 5 Copyright ©2024, Future Designs, Inc...
  • Page 30 U E Z G U I - 1 7 8 8 - 7 0 W V M U s e r ’ s M a n u a l P a g e | 30 3/20/2024 Revision 5 Copyright ©2024, Future Designs, Inc...

This manual is also suitable for:

Uezgui-1788-70wvmUezgui-1788-70wvm-ba
