uEZ GUI Quick Start Guide
Use uEZGUI-1788-70WVT as a replacement

Covers the following products:
uEZGUI-2478-70WVE
uEZGUI-1788-70WVE
Not Recommended for New Designs

Copyright ©2011, Future Designs, Inc., All Rights Reserved, Rev 1.0












Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the uEZ GUI Series and is the answer not in the manual?

Questions and answers

Summary of Contents for FDI uEZ GUI Series

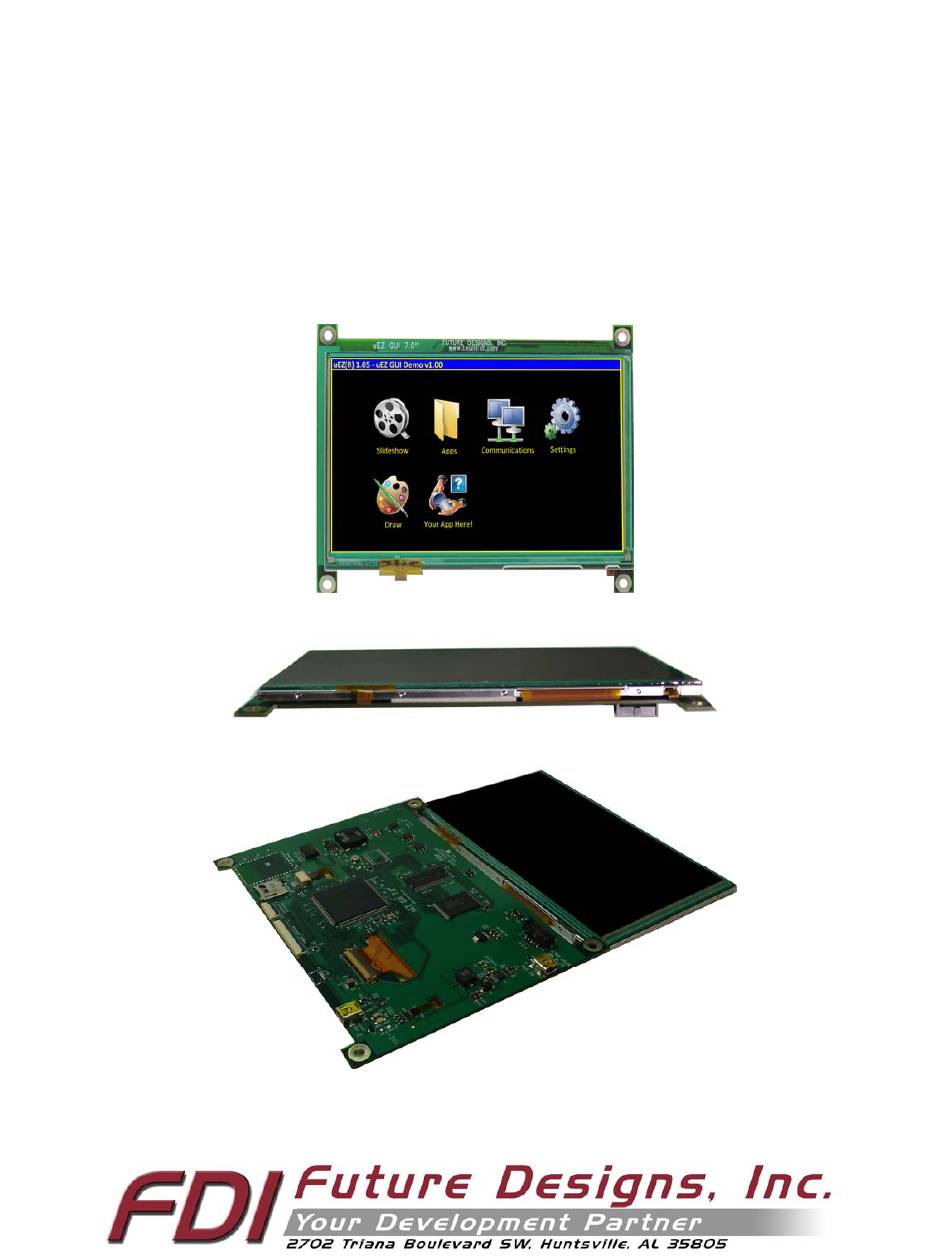

  • Page 1 uEZ GUI Quick Start Guide  Covers the following products: uEZGUI-2478-70WVE uEZGUI-1788-70WVE Not Recommended for New Designs Use uEZGUI-1788-70WVT as a replacement                                                                                                 Copyright ©2011, Future Designs, Inc., All Rights Reserved, Rev 1.0   ...
  • Page 2   The uEZGUI is optimized to save development time in typical embedded control applications. The uEZGUI is packaged  several different ways. Regardless of the hardware configuration, the software all works the same.  An optional board,  uEZGUI7‐EXP, is available separately and includes expansion connectors for added flexibility and a range of hardware  options.    This product is not recommended for new designs; the replacement for both the 2478 and 1788 7.0” – WVE versions is  the new uEZGUI‐1788‐70WVT. See links below for more information.    http://www.teamfdi.com/products/uEZGUI‐2478‐70WVE/PCN/uEZGUI‐70_PCN.zip  http://www.teamfdi.com/development‐tools‐kits/products/1/uEZGUI‐1788‐70WVT    2. Kit Contents     uEZGUI‐2478‐70WVE or uEZGUI‐1788‐70WVE Touch Screen Kit with LCD   Segger Mini‐JTAG Debugger and USB Cable   FDI JTAG Adapter Board   2GB Micro SD card   Stylus for Touch Screen   Quick Start Guide   Download Link for Rowley Crossworks IDE    3. Startup Procedure    The uEZGUI kit comes with a pre‐installed 2 GB micro SD card that contains files required for the slide show to run.   It also contains users’ manuals, schematics, and documentation for the product.          Power is supplied via a USB cable and power supply provided in the kit. Connect the USB cable to the mini B USB ...
  • Page 3             The following screens should appear once power has been applied to the kit:                           At this point the unit is ready for software demonstrations and user operation.     The uEZGUI will appear as a USB Flash Drive to the PC, thus allowing the user to read and write files directly  to the  Micro SD card.      4. Demonstration Software Main Menu    The Demonstration Software has the following options:  Slideshow  Selecting the slideshow icon will cause the Micro SD card to be read. This demonstration allows the user to select  between several example slideshow options such as “Introduction to uEZ GUI”, “Demonstration Pictures”, “FDI  Overview”, “Strategic Partners”, etc. Select the play button to begin the automated slide show or manually “drag” a  stylus or finger at least half way across the screen.  After approximately 30 seconds of inactivity the slideshow will  begin to auto scroll. The user can regain manual control at any time by “dragging” forward or backwards to the next  slide. Click on the “X “to return to the main menu.         Setting up a slideshow:  The Slideshow demonstration loads and scrolls between images provided on a micro SD card. Images must be in 24  bit uncompressed Targa (.TGA) format.  Adobe Photoshop and many other graphics programs can save images in this  format.  The images must be 800x480 and 11.11”x6.67” in size and use the file names WVSLIDExx.TGA where xx is 00  thru 99. (i.e. WVSLID01.tga, WVSLID02.tga, etc)    Under the “Apps” Icon are the following programs:    2   ...
  • Page 4 Accelerometer  Selecting this icon demonstrates the accelerometer feature by moving a simulated ball across the screen as the  CARRIER board is tilted along the X and Y axis. To return to the main menu touch the exit icon.            Time and Date  This feature displays the current time and date from the external Real Time Clock (RTC). Touch “Time” to advance to  the “Set Time” screen or touch “Date” to advance to the “Set Date” screen and set or update the date as necessary.  To change the time or date simply click on the section you want to change and increase or decrease using the up and  down indicators. Once time/date are set an on‐board super cap will back‐up the data for several days (typically) if the  unit is powered off. To return to the main menu touch the exit icon.    Temperature  Selecting this icon displays the temperature from an LM75 temperature sensor.  To select between Celsius and  Fahrenheit click the “C’ or “F” to change. Verify that a valid temperature is displayed. To return to the main menu  touch the exit icon.           Exit the “Apps” Icon to the main screen are the following programs     Communications   This option is inactive in the basic kit and is only valid on uEZGUI‐2478‐70WVE with the optional Expansion Board  added for Ethernet communications.           Settings ICON  Calibrate use this feature to calibrate the LCD for the first time or if the calibration settings need to be updated.  Functional Test a step by step test of the following parameters:   Real Time Clock   Speaker test   LCD color test   SDRAM size test   Temperature  ...
  • Page 5 Complete Users Manuals, Schematics, and documentation are available on the Micro SD card provided with the uEZGUI  Kit and are also available from the following websites (please refer to the websites for the latest updates):     Future Designs Support Page ‐ www.teamfdi.com/uEZGUI   uEZ Source Code ‐ https://sourceforge.net/projects/uez/   Segger Mini‐JTAG Debugger ‐    http://www.segger.com/cms/jlink-software.html  Rowley Crossworks IDE download for 30‐day evaluation ‐    http://www.rowley.co.uk 4   ...
