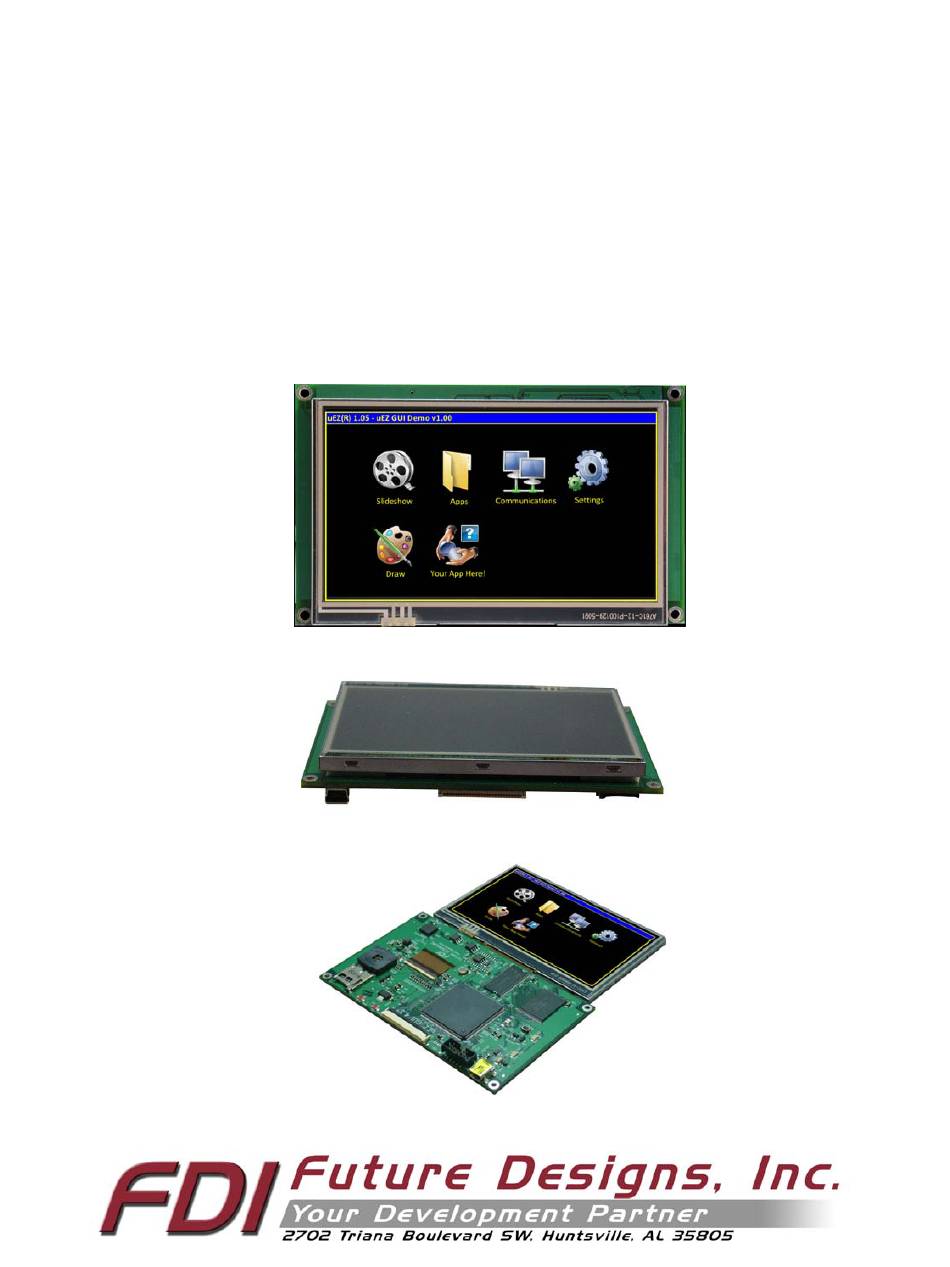

- Page 1 Quick Start Guide Covers the following products: uEZGUI-1788-43WQS uEZGUI-2478-43WQS Not recommended for new designs Use uEZGUI-1788-43WQS as alternative ...
- Page 2 1. Introduction The uEZGUI is optimized to save development time in typical embedded control applications. The uEZGUI is packaged several different ways. Regardless of the hardware configuration, the software all works the same. An optional board, uEZGUI‐EXP1, is available separately and includes expansion connectors for added flexibility and a range of hardware options. The uEZGUI‐2478‐43WQS is not recommended for new designs; use the newer uEZGUI‐1788‐43WQS as an alternative. 2. Kit Contents uEZGUI‐1788‐43WQS or uEZGUI‐2478‐43WQS Touch Screen Kit with LCD Segger Mini‐JTAG Debugger and JTAG cable 2GB Micro SD card USB Cable Stylus for Touch Screen Quick Start Guide FreeRTOS documentation on eBook Download Link for Rowley Crossworks IDE 3. Startup Procedure The uEZGUI kit comes with a pre‐installed 2 GB micro SD card that contains files required for the slide show to run. It also contains users’ manuals, schematics, and documentation for the product. ...
- Page 3 The following screens should appear once power has been applied to the kit: At this point the unit is ready for software demonstrations and user operation. The uEZGUI will appear as a USB Flash Drive to the PC, thus allowing the user to read and write files directly to the Micro SD card. 4. Demonstration Software Main Menu The Demonstration Software has the following options: Slideshow Selecting the slideshow icon will cause the Micro SD card to be read. This demonstration allows the user to select between several example slideshow options such as “Introduction to uEZ GUI”, “Demonstration Pictures”, “FDI Overview”, “Strategic Partners”, etc. Select the play button to begin the automated slide show or manually “drag” a stylus or finger at least half way across the screen. After approximately 30 seconds of inactivity the slideshow will begin to auto scroll. The user can regain manual control at any time by “dragging” forward or backwards to the next slide. Click on the “X “to return to the main menu. Setting up a slideshow: The Slideshow demonstration loads and scrolls between images provided on a micro SD card. Images must be in 24 bit uncompressed Targa (.TGA) format. Adobe Photoshop and many other graphics programs can save images in this format. The images must be 480x272 and 13.23”x7.5” in size and use the file names WQSLIDExx.TGA where xx is 00 thru 99. (i.e. WQSLID01.tga, WQSLID02.tga, etc) Under the “Apps” Icon are the following programs: Accelerometer Selecting this icon demonstrates the accelerometer feature by moving a simulated ball across the screen as the CARRIER board is tilted along the X and Y axis. To return to the main menu touch the exit icon. 2 ...
- Page 4 Time and Date This feature displays the current time and date from the external Real Time Clock (RTC). Touch “Time” to advance to the “Set Time” screen or touch “Date” to advance to the “Set Date” screen and set or update the date as necessary. To change the time or date simply click on the section you want to change and increase or decrease using the up and down indicators. Once time/date are set an on‐board super cap will back‐up the data for several days (typically) if the unit is powered off. To return to the main menu touch the exit icon. Temperature Selecting this icon displays the temperature from an LM75 temperature sensor. To select between Celsius and Fahrenheit click the “C’ or “F” to change. Verify that a valid temperature is displayed. To return to the main menu touch the exit icon. Exit the “Apps” Icon to the main screen are the following programs Communications This option is inactive in the basic kit and is only valid on uEZGUI‐1788‐43WQS with the optional Expansion Board added for Ethernet communications. Settings ICON Calibrate use this feature to calibrate the LCD for the first time or if the calibration settings need to be updated. Functional Test a step by step test of the following parameters: Speaker test LCD color test SDRAM size test Temperature EEPROM test NOR Flash Memory test Draw A very simple art program is provided. Use the touch screen to draw lines in the box to the right. Clicking on Color ...
- Page 5 Rowley Crossworks IDE download for 30‐day evaluation ‐ http://www.rowley.co.uk 4 ...
