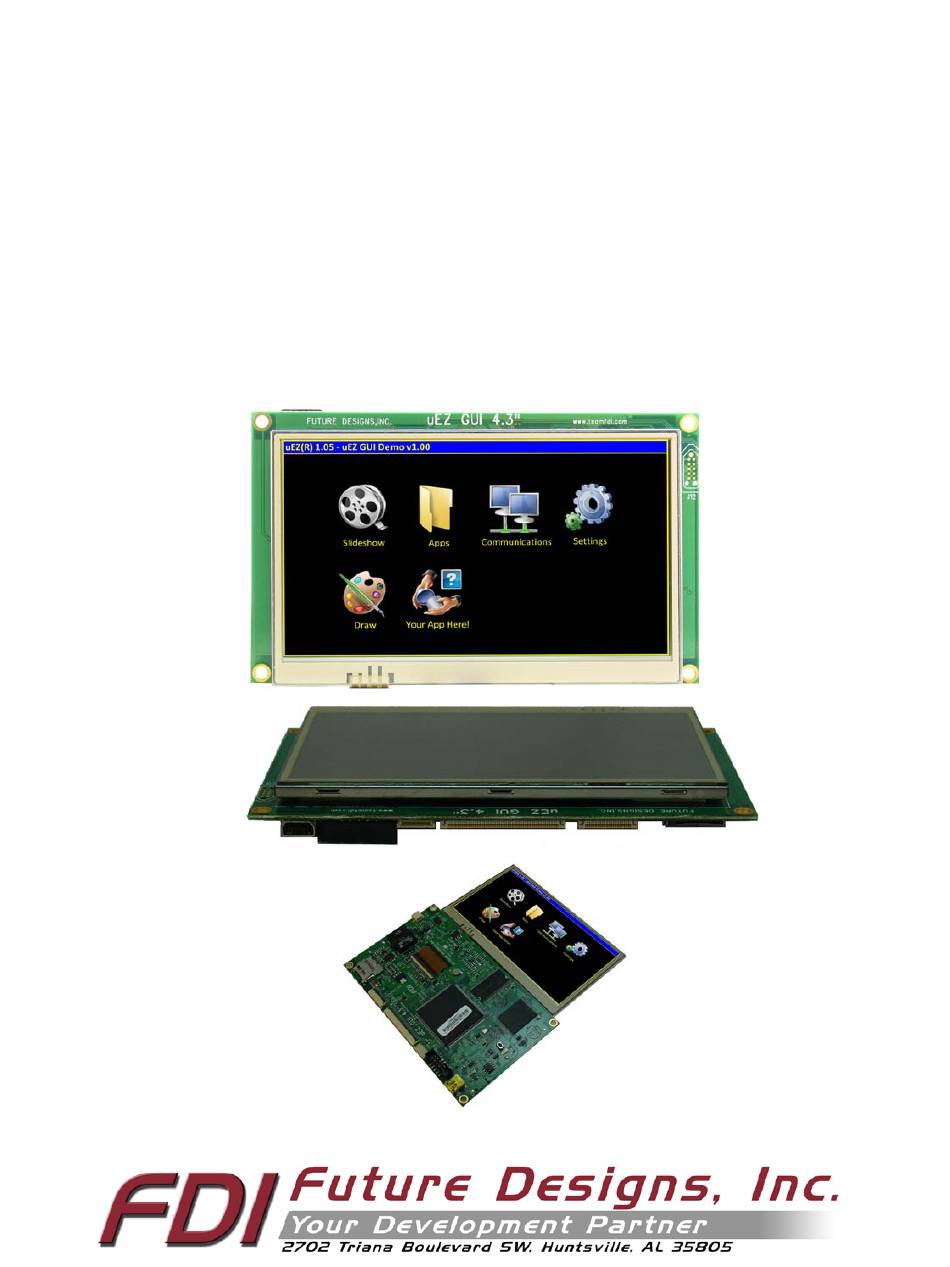

- Page 1 Quick Start Guide Covers the following products: uEZGUI-1788-43WQR uEZGUI-1788-43WQS uEZGUI-2478-43WQS Not recommended for new designs Use either uEZGUI-1788-43WQS or uEZGUI-1788-43WQR as alternative Copyright ©2012, Future Designs, Inc., All Rights Reserved, Rev 1.0...
- Page 2 The uEZGUI-2478-43WQS is not recommended for new designs. Please use either the uEZGUI-1788-43WQS or newer uEZGUI-1788-43WQR as an alternative. 2. Kit Contents • uEZGUI-1788-43WQR Touch Screen Kit with Sharp LCD • Segger Mini-JTAG Debugger and JTAG cable • 2GB Micro SD card •...
- Page 3 Selecting the slideshow icon will cause the Micro SD card to be read. This demonstration allows the user to select between several example slideshow options such as “Introduction to uEZ GUI”, “Demonstration Pictures”, “FDI Overview”, “Strategic Partners”, etc. Select the play button to begin the automated slide show or manually “drag” a stylus or finger at least half way across the screen.
- Page 4 Time and Date This feature displays the current time and date from the external Real Time Clock (RTC). Touch “Time” to advance to the “Set Time” screen or touch “Date” to advance to the “Set Date” screen and set or update the date as necessary. To change the time or date simply click on the section you want to change and increase or decrease using the up and down indicators.
