A note about our
online installation instructions:
Most Modern Fan Co. products have been in our assortment for several
years or longer. As we continually work to improve product performance
and user experience, we occasionally introduce subtle (and sometimes
dynamic) product changes. These can affect the steps associated with
assembly and installation of our products depending on when a fan
was produced.
The instructions posted here are intended to represent our most current
product versions and configurations and the associated installation
steps. If your fan or parts of your fan do not appear to match what is
included here, please contact customer service for guidance and support
in identifying which version of a fan you may have and provision of the
associated installation instructions which correspond to that version.
If in doubt, or if you have any questions at all related to assembly,
installation or operation of your fan, please contact us!
The Modern Fan Company, Inc.
709 Washington Street, Ashland, Oregon 97520
tel 541-482-8545, toll free 888-588-3267
info@modernfan.com
modernfan.com
Advertisement
Related Manuals for The Modern Fan Company Cirrus Flush DC
Summary of Contents for The Modern Fan Company Cirrus Flush DC
- Page 1 If in doubt, or if you have any questions at all related to assembly, installation or operation of your fan, please contact us! The Modern Fan Company, Inc. 709 Washington Street, Ashland, Oregon 97520 tel 541-482-8545, toll free 888-588-3267 info@modernfan.com...
-
Page 2: Table Of Contents

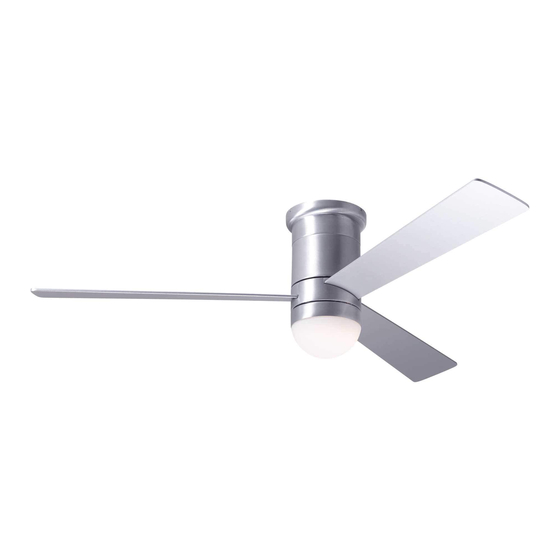

Cirrus Flush DC Installation Instructions and Owners Manual Models: CIR-FM–XX–XX–XX–XX(X)–XX Net Weight of Fan: 14.0 lbs (6.4 kgs) V2024/02 Please read and save these instructions. If you have any questions while installing your fan, call us first! Customer Service Monday–Friday, 8am–4pm... -
Page 3: Safety Instructions And Warnings
Safety Instructions and Warnings Please read all safety instructions prior to installing your ceiling fan and save this document for future reference. If you are in doubt with any of the information provided, we recommend that you consult or hire a qualified electrician to install your outlet box and ceiling fan. If you have any questions or difficulty installing your fan, call Modern Fan Co customer service at (888) 588-3267. - Page 4 Installation Preparation Fan Location WARNING Make sure the installation site you choose allows Minimum of the fan blades to rotate without any obstruction. 7 feet (2.1m) Allow a minimum clearance of 7 feet (2.1 meters) from the floor to the blades and 30 inches (76 cm) from the wall to the end of the blades.
-
Page 5: Fan Installation
Fan Installation Tools Needed A stepladder, Phillips head screwdriver and a wire stripper Instructions IMPORTANT: The included canopy receiver must be installed and paired with the wall or remote control components (see page 10). Third party fan controls may not be used with this product. Connecting this fan to line voltage without the canopy receiver will damage the motor and void your warranty. - Page 6 See Page 2 Circuit Breaker WARNING POWER OFF Place fan body on work area with bottom side facing up. Do not pinch or damage wires. Carefully insert one blade into a rotor slot. Using pan head screws from hardware package, secure blade to rotor. Screwdriver and screws pass through oval holes to access blade and rotor attachment points.
- Page 7 Fan Installation (continued) Position LED board flat on surface of trim ring so that small cut-outs in board are positioned over holes on trim ring. Place plastic isolation cover over LED board with holes properly aligned and secure to trim ring with three screws from light kit screw pack.
-
Page 8: Control Installation And Wiring
See Pages 2-3 Circuit Breaker WARNING POWER OFF Identify control components from control package(s). In addition to a receiving unit, your fan may have been ordered with a wall control (transmitter), a handheld remote control (transmitter) or both. wall clip handset receiving switch... - Page 9 See Pages 2-3 Circuit Breaker Fan Installation WARNING POWER OFF (continued) Insert receiving unit into the top of the fan body and make wire connections according to wire colors, labels and diagram in Step 6. All ground wires must be connected as shown in diagram. If ordered, install wall control into wall box.
- Page 10 Once wire connections are completed, lift fan body and carefully align collar with ceiling plate. Tabs on ceiling plate should seat into channel on inside of fan collar. Rotate fan so that set screw holes on fan body align with set screw holes on ceiling plate.
- Page 11 Fan Installation See Pages 2-3 Circuit Breaker (continued) WARNING POWER OFF Control Pairing Wall controls and remote handsets communicate with the canopy receiver using radio frequency transmission. Each device (wall control and remote handset) is factory set to a unique channel to avoid unwanted interference with other fans installed nearby. A receiver can be paired with up to two devices (wall control + remote handset or two remote handsets).
- Page 12 Fan and Light Operation This fan operates with a micro-controller (enclosed in the canopy receiver) which regulates fan speed, fan direction and light function. After sending any operational command to your fan, wait several seconds before re-sending the same command or sending a new command.
-
Page 13: Troubleshooting
Troubleshooting Please read all installation instructions carefully. After reviewing the following troubleshooting tips, if you are unable to solve a problem with the installation or operation of you fan, please contact customer service for additional assistance. I M P ORTAN T : Do not return a fan or fan parts without first contacting us for troubleshooting assistance. - Page 14 Fan wobbles... • Make sure hanging bracket and mounting hardware at ceiling is secure and firmly fastened. • Be sure ridge in hanging bracket is seated in the half-ball slot. • Check that stopper screw (or stopper pin) and set screws are firmly tightened where down rod is attached to the fan body.
-
Page 15: Maintenance
Maintenance See Pages 2-3 Circuit Breaker WARNING POWER OFF Before servicing or cleaning your fan, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such a tag, to the service panel. -
Page 16: Warranty
Lifetime Limited Warranty All products manufactured and sold by The Modern Fan Co. meet the highest industry standards. We use only the finest materials and production processes resulting in quality ceiling fans backed by the following warranty: Motors (dry locations): .......................Lifetime Motors (damp locations): .................... - Page 17 The Modern Fan Company, Inc. 709 Washington Street, Ashland, Oregon 97520 tel 541-482-8545, toll free 888-588-3267 info@modernfan.com modernfan.com V2024/02...
