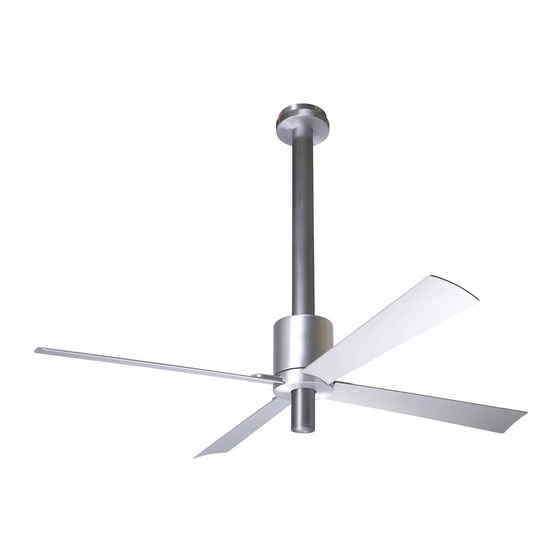

The Modern Fan Company PENSI Replacement /Installation Instructions

PENSI FAN - INTERNAL COUPLER/CONNECTOR
Replacement Installation Instructions
Step 1-
Turn off power to the junction box from the circuit breaker. Review the PENSI fan installation instructions (included
with your replacement kit) and follow steps in reverse to remove fan from ceiling.
Step 2-
Loosen set screw on side of
large nut inside canopy.
Step 4-
Remove canopy and outer
down rod assembly. Set aside
for reinstallation.
Step 6-
Loosen TWO set screws on
side of inner down rod
connector.
Step 8-
Insert screw driver through stopper pin
holes and loosen inner down rod
connector from fan body. It may be
necessary to use a wrench on the nut at
opposite end of the fan assembly (inside
center of rotor).
Step 3-
Loosen large nut inside
canopy. Brace fan by holding
the down rod, not the canopy.
Step 5-
Remove cotter pin, washer and
stopper pin from inner down
rod connector. Set aside for
reinstallation.
Step 7-
Remove inner down rod and
set aside for reinstallation.
THE MODERN FAN CO.
Customer Service
M-F 8am - 4pm (PST)
(ph) 888.588.3267
www.modernfan.com
Continued on next page....
