mr. steam AromaFlo Installation, Operation & Maintenance Manual

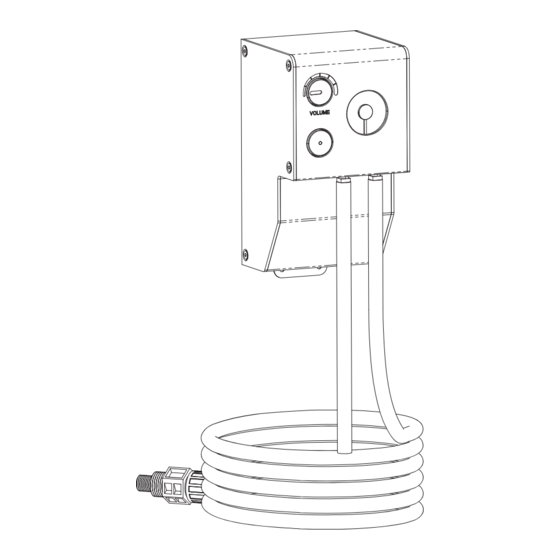

Fragrance metering pump system for commercial steam rooms
Hide thumbs Also See for AromaFlo:
Table of Contents

Advertisement

Quick Links

Download this manual
Installation, Operation & Maintenance Manual
Installation, Operation and Maintenance Manual
Linear Steam Head
Fragrance Metering Pump System for
Commercial Steam Rooms
