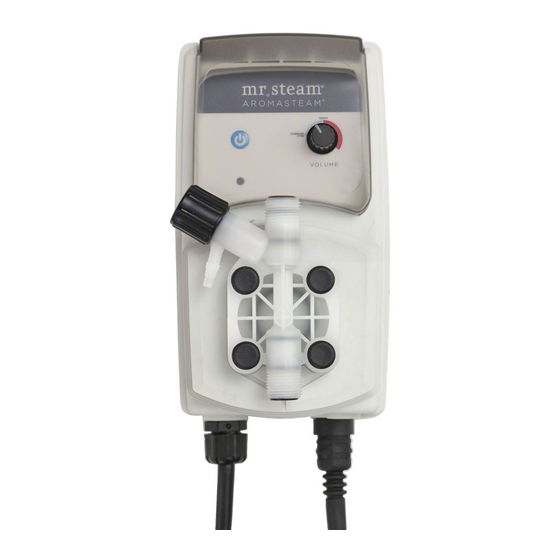

mr. steam AromaFlo Installation, Operation & Maintenance Manual
Fragrance metering pump system for commercial steam rooms
Hide thumbs
Also See for AromaFlo:
- Installation & operation manual (8 pages) ,
- Installation, operation & maintenance manual (20 pages) ,
- Installation, operation & maintenance manual (20 pages)
Table of Contents
Advertisement
Quick Links
Installation, Operation & Maintenance Manual
Fragrance Metering Pump System for
®
__________________________________
IMPORTANT: Leave this material with the operator.
__________________________________
.
mr
steam
!
WARNING
The installation, operation and maintenance manual supplied with the product must be used for
installation, operation and maintenance purposes. Failure to use the installation, operation and
maintenance manual supplied may result in a property damage or personal injury.
AromaFlo
Commercial Steam Rooms
Part Number CU-AROMAFLOA
®
This installation, operation and maintenance manual is for general reference.
l
Feel Good Inc.
®
Advertisement
Table of Contents
Related Manuals for mr. steam AromaFlo
Summary of Contents for mr. steam AromaFlo
- Page 1 Installation, Operation & Maintenance Manual AromaFlo Fragrance Metering Pump System for Commercial Steam Rooms Part Number CU-AROMAFLOA ® __________________________________ IMPORTANT: Leave this material with the operator. __________________________________ steam Feel Good Inc. ® ® WARNING This installation, operation and maintenance manual is for general reference.
-
Page 2: Table Of Contents
Read these instructions before installation or service. Although Important Safety Information ....4 the AromaFlo pump has been fully qualified for shipment by System Overview ........5 MrSteam, the following must be reviewed for proper, safe and General System Dimensions ....6... -
Page 3: Box Contents
AromaFlo ® Operation and Installation Instructions _____________________________________________________________________________________________ I N S T A L L E R S E C T I O N box Contents 8 ft. Pressure and suction Tube Installation & Operation Caddy Pump Manual WARNING! This room is equipped with an automatic aromatic dispensing system. -
Page 4: Important Safety Information
Never use MrSteam fragrances in any other pump, spray or dispensing device. The use of MrSteam fra- • Never use an AromaFlo pump in a Residential or grances in any other device may introduce excessive Day Spa installation. Doing so may result in exces- concentration of fragrances into the steam room and sive amounts of fragrance and personal injury. -
Page 5: System Overview
AromaFlo ® Operation and Installation Instructions _____________________________________________________________________________________________ I N S T A L L E R S E C T I O N Aromaflo system Overview Steamline Pump Line Cord Steam Solenoid Steam Head with Outlet Check Valve Pressure Tube... -
Page 6: General System Dimensions
AromaFlo ® Operation and Installation Instructions _____________________________________________________________________________________________ I N S T A L L E R S E C T I O N General system Dimensions 5 -10 ft. optimal Steam Pipe T Steam Generator Steam Solenoid Check Valve... -
Page 7: General Installation
5. Do not install the AromaFlo System outdoors. 6. Do not install the AromaFlo System in a location where water could freeze. 7. Do not install the AromaFlo System near corrosive materials and chemicals. - Page 8 Tube Holder fragrance from entering the steam line and steam room. Never Collar install the AromaFlo System without the Check Valve. Failure to install the Check Valve may result in excessive fragrance Check Valve delivery into the steam room and cause dizziness and/or per- Tightening Nut sonal injury.
- Page 9 AromaFlo ® Operation and Installation Instructions _____________________________________________________________________________________________ I N S T A L L E R S E C T I O N Installation of suction Tube to the Pump 1. Insert the suction tube through the pump tightening nut and collar and firmly push the tube onto the tube holder.
- Page 10 AromaFlo ® Operation and Installation Instructions _____________________________________________________________________________________________ I N S T A L L E R S E C T I O N Priming the Pump 1. Insure MrSteam fragrance container is full. 2. Insert a short piece of soft injector tube onto the tip of the injector (see Fig.
- Page 11 CU AROMAFLO CAUTION This AromaFlo system is factory wired. If the power cord of the AromaFlo pump is damaged it must be replaced by the MrSteam service depart- ment or similarly qualified personnel in order to avoid an electric shock hazard.
-
Page 12: Operation
The LED will turn off each time the pump injects fragrance into the steam line. No Light Pump is OFF The AromaFlo pump will inject a metered amount of fragrance into the steam line only when the steam solenoid valve is open. Adjusting the Amount of fragrance Delivery... -
Page 13: Troubleshooting
Rinse foot valve under clean water. ELECtRiCAL ShOCK hAZARD. MrSteam WARNING AromaFlo pumps are connected to 120V line voltage and contain live electrical components. All installation Pump does not inject fragrance into and service to be performed by qualified and licensed steam room electricians and plumbers only. -
Page 14: Replacement Parts
AromaFlo ® Operation and Installation Instructions _____________________________________________________________________________________________ I N S T A L L E R S E C T I O N RePlACeMeNT PARTs Check Valve (5 pcs.) 104240 Tube (per foot) 104255 O-Ring (3 pcs.) Tube Connector... -
Page 15: Installing The Caddy
AromaFlo ® Operation and Installation Instructions _____________________________________________________________________________________________ I N S T A L L E R S E C T I O N Installing the Caddy: Pump box Contents: Tools required: • Stainless steel caddy • Cordless drill with a Phillips bit •... - Page 16 AromaFlo AromaFlo ® ® Operation and Installation Instructions Operation and Installation Instructions _____________________________________________________________________________________________ ______________________________________________________________________________________________ I N S T A L L E R S E C T I O N Mounting the Caddy on a Wall: 1. Use a level to make sure the caddy is level.
-
Page 17: Operator's Section
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– The Safety Data Sheet provides comprehensive information about MrSteam AromaFlo fragrances. Contact 1-800-767-8326 or go online at www.mrsteam.com for a copy of the Safety Data Sheet. MrSteam AromaFlo Fragrances IMPORTANT NOTe: As you follow these instructions, you will notice warning and caution symbols. -
Page 18: Important Safety Information
Never use MrSteam fragrances in any other pump, spray or dispensing device. The use of MrSteam fra- • Never use an AromaFlo pump in a Residential or grances in any other device may introduce excessive Day Spa installation. Doing so may result in exces- concentration of fragrances into the steam room and sive amounts of fragrance and personal injury. -
Page 19: Fragrances
No Light Pump is OFF The AromaFlo pump will inject a metered amount of fragrance into the steam line only when the steam solenoid valve is open. Adjusting the Amount of fragrance Delivery The AromaFlo system has been factory set to deliver a suitable amount of aromatic fragrance into a typical sized steam room. -
Page 20: Warranty
Feel Good Inc. ® ® WARRANTY: To view or download the MrSteam AromaFlo System Warranty and register your product go to: blog.mrsteam.com/wr Products, information and specifications are subject to change without notice. For more information please call Sales & Support at 1.800.76.sTeAM (East Coast) 1.800.72.sTeAM (West Coast) www.mrsteam.com...
