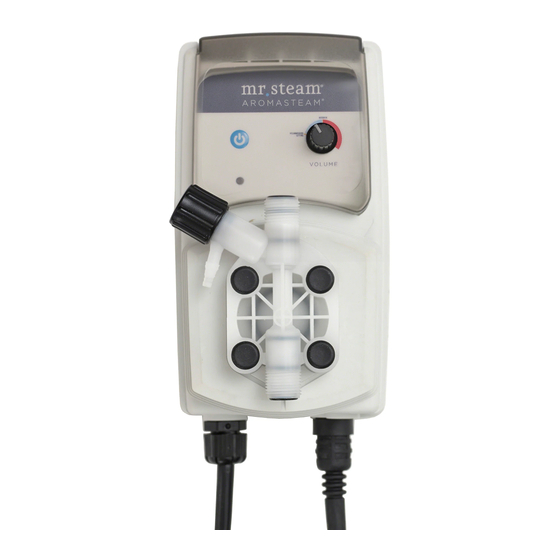

Installation, Operation & Maintenance Manual
AromaSteam
Fragrance Metering Pump System for
Residential and Day Spa Steam Rooms
__________________________________
IMPORTANT: Leave this material with the home owner.
__________________________________
.
mr
steam
!
WARNING
This installation, operation and maintenance manual is for general reference.
The installation, operation and maintenance manual supplied with the product must be used for
installation, operation and maintenance purposes. Failure to use the installation, operation and
maintenance manual supplied may result in a property damage or personal injury.
Part Number MS AROMA (120V)
l
®
Feel Good Inc.
®
Advertisement
Table of Contents
Related Manuals for mr. steam Feel Good AromaSteam
Summary of Contents for mr. steam Feel Good AromaSteam
- Page 1 Installation, Operation & Maintenance Manual AromaSteam Fragrance Metering Pump System for Residential and Day Spa Steam Rooms Part Number MS AROMA (120V) __________________________________ IMPORTANT: Leave this material with the home owner. __________________________________ steam Feel Good Inc. ® ® WARNING This installation, operation and maintenance manual is for general reference. The installation, operation and maintenance manual supplied with the product must be used for installation, operation and maintenance purposes.
-
Page 2: Table Of Contents
® AromaSteam Operation and Installation Instructions I N S T A L L E R S E C T I O N BEFORE INSTALLING T A B L E O F C O N T E N T S Carefully inspect the AromaSteam pump and packaging for shipping damage. -
Page 3: Box Contents
® AromaSteam Operation and Installation Instructions I N S T A L L E R S E C T I O N Box Contents Pump Caddy Pressure Tube Suction Tube Assembly Assembly Installation & Operation Check Valve Injector with Manual with peel and stick Injector Tubing Warning label Additional Items included but not shown:... - Page 4 ® AromaSteam Operation and Installation Instructions I N S T A L L E R S E C T I O N WARNING FLAMMABLE LIQUID AND VAPOR sparks, electrical outlets, open flames such as candles and hot surfaces. water spray for extinction. cool, dry and well-ventilated place.
-
Page 5: System Overview
® AromaSteam Operation and Installation Instructions I N S T A L L E R S E C T I O N AromaSteam System Overview Steam Generator Printed Circuit Board 90˚ T 90˚ T Typical MrSteam Steam Line Steam Generator Check Valve shown with cover removed... -
Page 6: General System Dimensions
® AromaSteam Operation and Installation Instructions I N S T A L L E R S E C T I O N General System Dimensions 5 -10 ft. optimal Steam Steam Pipe Pipe T Steam Generator Steam Head Check Valve (inside steam room) Pressure Hose (6 ft. - Page 7 ® AromaSteam Operation and Installation Instructions I N S T A L L E R S E C T I O N WARNING STICKER The warning label ( supplied on page 2) shall be posted in a conspicuous location next to the steam room door. REDUCE THE RISK OF OVERHEATING AND SCALDING 1.
-
Page 8: Operation
® AromaSteam Operation and Installation Instructions I N S T A L L E R S E C T I O N Installing the 90 degree T and Check Valve 90˚ Tee 1. For optimal results locate a brass 90 degree T (not provid- (not supplied) ed) in the steam supply line within 5-10 feet of the steam Steam Pipe... - Page 9 ® AromaSteam Operation and Installation Instructions I N S T A L L E R S E C T I O N SUCTION TUBE ASSEMBLY For your convenience the suction tube assembly is provided preassembled. If additional tubing is needed please contact MrSteam Technical service at 1-800-767-8326 or 1-800-727-8326.
- Page 10 ® AromaSteam Operation and Installation Instructions I N S T A L L E R S E C T I O N Priming the Pump 1. Insure MrSteam fragrance container is full. 2. Insert a short piece of soft injector tube onto the tip of the injector (see Fig.
- Page 11 ® AromaSteam Operation and Installation Instructions I N S T A L L E R S E C T I O N AromaSteam Wiring Schematic Electrical Connection of AromaSteam System AromaSteam Pump This AromaSteam system is factory CAUTION wired. If the power cord of the AromaSteam pump Plug is damaged it must be replaced by the MrSteam service department or similarly qualified personnel...
- Page 12 ® AromaSteam Operation and Installation Instructions I N S T A L L E R S E C T I O N Powering Up the Pump Fragrance IMPORTANT NOTE: This step only needs to be performed Setting Knob during installation. Power Button 1.
-
Page 13: Troubleshooting
® AromaSteam Operation and Installation Instructions I N S T A L L E R S E C T I O N TROUBLESHOOTING Pump fragrance delivery too much WARNING or too little The AromaSteam system has been factory Pump does not prime WARNING set to deliver a suitable amount of aromatic fragrance 1. -
Page 14: Replacement Parts
® AromaSteam Operation and Installation Instructions I N S T A L L E R S E C T I O N REPLACEMENT PARTS Check Valve (5 pcs.) 104240 Tube (per foot) 104255 O-Ring Kit Tube Connector (3 pcs.) 104275 (3 pcs) 104250 Pump Head... -
Page 15: Installing The Caddy
® AromaSteam Operation and Installation Instructions I N S T A L L E R S E C T I O N Installing the Caddy: Box Contents: Tools required: Pump a Phillips bit cautionary measures against static discharge Suction Locating the Caddy: Hose 1. - Page 16 ® AromaSteam Operation and Installation Instructions I N S T A L L E R S E C T I O N Mounting the Caddy on a Floor: using the two holes at the bottom of the caddy (Diagram 3). Test the caddy for secure mounting.
- Page 17 ® AromaSteam Operation and Installation Instructions H O M E O W N E R S E C T I O N The AromaSteam’s state-of-the-art pump introduces fragrance into the steam pipe and into your steam shower. MrSteam Aroma is Available in These Five Fragrances: ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––...
- Page 18 ® AromaSteam Operation and Installation Instructions H O M E O W N E R S E C T I O N IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS WARNING FLAMMABLE LIQUID AND VAPOR sparks, electrical outlets, open flames such as candles and hot surfaces.
- Page 19 ® AromaSteam Operation and Installation Instructions H O M E O W N E R S E C T I O N Locating the Caddy/Fragrance: 1. Place in a location that allows visual monitoring of the fragrances level. 2. Place in a location that allows for easy replacement of the fragrance container. 3.
-
Page 20: Warranty
® AromaSteam Operation and Installation Instructions I N S T A L L E R S E C T I O N OPERATION (cont.) Adjusting the Amount of Fragrance Delivery The AromaSteam system has been factory set to deliver a suitable amount of fragrance into a typical sized steam room.
