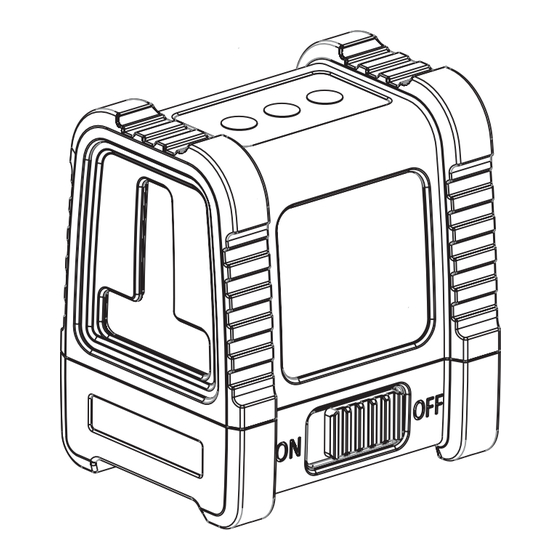

- Page 1 Prolaser Plus ® Model No. 870 GREEN User Manual 165'/50m INCLUDED Up to 60m/200'...
- Page 2 Thank you for purchasing Kapro’s 870 GREEN VHX Prolaser ® VIP. You now own one of the most advanced laser tools available. This manual will show you how to get the most out of your laser tool. APPLICATIONS The 870 GREEN VHX Prolaser VIP is innovatively designed ®...
-
Page 3: Table Of Contents
CONTENTS • Features • Safety instructions • Battery installation & Safety • Overview • Operating instructions 10-12 • Maintenance • Field calibration test 14-19 • Specifications • Warranty... -
Page 4: Features
FEATURES • This laser tool automatically determines horizontal and vertical plans • The laser projects separately or simultaneously a horizontal and vertical line • Self-levels in automatic mode when the laser is positioned within its self-leveling range of ±3° • Visual and audible "out of level" warning •... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS WARNING This product is emitting radiation that is classified As class II according to EN 60825 -1 The laser radiation can cause serious eye injury • Do not stare into the laser beam • Do not position the laser beam so that it unintentionally blinds you or others. - Page 6 • Do not remove or deface warning labels on the laser level. • Do not disassemble the laser level, laser radiation can cause serious eye injury. • Do not drop the laser. • Do not use solvents to clean the laser. •...
-
Page 7: Battery Installation & Safety
BATTERY INSTALLATION & SAFETY 1. Press on the latch and open the battery cover. 2. Insert 3 new AA batteries of the same brand, according to the polarity diagram on the inside of the battery compartment lid. 3. Reclose the battery cover. NOTE If the laser level will not be used for a long period, remove the batteries from the battery... - Page 8 WARNING: Batteries can deteriorate, leak, explode, causing injury or fire. 1. Do not shorten the battery terminals. 2. Do not charge Alkaline batteries. 3. Do not mix old and new batteries. 4. Do not dispose of batteries into household waste. 5.
-
Page 9: Overview
OVERVIEW 1. On/Off Locking Switch 2. Laser output window 3. Keypad a. Manual Mode button d. Manual Mode LED b. Beam Selector button e. Laser beam LED c. Pulse Mode button f. Pulse mode LED 4. Battery cover 5. ¼” tripod mount... -
Page 10: Operating Instructions
OPERATING INSTRUCTIONS Working in Automatic mode (self-leveling): In Automatic mode the laser level will level itself at a ± 3° range and will project horizontal or vertical beam or both beams simultaneously. 1. Remove the laser from the case and place it on a solid flat, vibration free surface or on a tripod. - Page 11 Working in Manual mode: In Manual mode the 870G’s self-leveling mechanism is disabled and the laser lines can be set at any angle required. 1.Press the Manual mode button . The laser will project the cross lines and the red LED near the button will light up.
- Page 12 Working in Pulse mode with a detector: For outdoor work under direct sunlight, or bright conditions and for extended indoor ranges up to 60 meters, use the pulse mode with a Detector. When the pulse mode is activated the laser beams will flash at a very high frequency (invisible to the human eye) this will allow the detector to detect them.
-
Page 13: Maintenance
MAINTENANCE To maintain the accuracy of your project, check the accuracy of your laser level according to the field calibration tests procedures. • Change the batteries when the laser beams begin to dim. • Wipe the aperture lens and the body of the laser level with a clean soft cloth. -
Page 14: Field Calibration Test
FIELD CALIBRATION TEST This laser level left the factory fully calibrated. Kapro recommends the user check the accuracy of the laser periodically, especially if the unit falls or is mishandled. To do so, first check the height accuracy of the horizontal line, then check the levelling accuracy of the horizontal line and finally, check the leveling accuracy of the vertical line. - Page 15 5) Turn the laser 180° towards wall B and mark the center of the cross beams as b1 on the wall (see figure 2). 6) Move the laser level towards wall B and position it approximately 0.5 meters from wall B. 7) Mark on wall B the center of the cross beams as b2 (see figure 3).
- Page 16 8) Turn the laser 180° towards wall A, and on the wall mark the center of the cross beams as a2 (see figure 4). 9) Measure the distances: Δa= |a2-a1| Δb= |b1-b2| 10) The difference | Δa – Δb| should be no more than 2 mm, if otherwise send the laser level to a qualified technician for repair.
- Page 17 3) Mark point a1 on the wall, in the middle of the horizontal line at the left edge of the horizontal beam (see figure 5). 4) Turn the laser level counterclockwise until the right edge of the horizontal beam reaches near a1, mark a point a2 on the wall in the middle of the horizontal beam (see figure 6).
- Page 18 5) The distance between a1 and a2, should be no more than 1 mm, if otherwise send the laser level to a qualified technician for repair. 3. Checking the Accuracy of the Vertical beam. 1) Hang an approximately 4 meter /13 feet plumb line on a wall. 2) After the plumb line has settled, mark point a1 on the wall, behind the plumb line, near the plumb cone.
- Page 19 6) Mark point a2 on the wall, in the middle of the vertical beam at the same height as a1. (see figure 8). 7) The distance between a1 and a2, should be no more than 1mm, if otherwise send the laser level to a qualified technician for repair.
-
Page 20: Specifications
SPECIFICATIONS Laser beams Vertical and horizontal cross lines output pattern Horizontal line Vertical line Laser range • Indoor - 30m (100ft) • Outdoor with detector 60m (200ft) Accuracy ±0.2mm/m (±0.0002in/in) Fan angle 120° ±5° Self-leveling range ±3° Laser line width 2 mm±0.5mm/5m (0.10”... -
Page 21: Warranty
It does no cover products that are used improperly, altered or repaired without Kapro approval. In the event of a problem with the laser level you have purchased, please return the product to the place of purchase with the proof of purchase.
