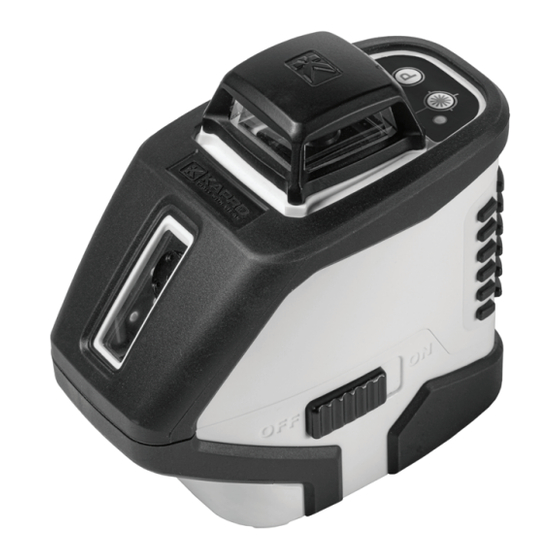

Prolaser Multi Beam GREEN
Orbital laser
Model No. 962G
User Manual
4 AA
165'/50m
Up to 60m/200'
INCLUDED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prolaser Multi Beam GREEN Orbital laser and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kapro Prolaser Multi Beam GREEN Orbital laser

Summary of Contents for Kapro Prolaser Multi Beam GREEN Orbital laser

  • Page 1 Prolaser Multi Beam GREEN Orbital laser Model No. 962G User Manual 4 AA 165'/50m Up to 60m/200' INCLUDED...
  • Page 2 Thank you for purchasing Kapro’s 962G Prolaser Multi ® Beam Orbital laser. You now own one of the most advanced laser tools available. This manual will show you how to get the most out of your laser tool. APPLICATIONS The 962G Prolaser Multi Beam Orbital laser is an Indoor / ®...

  • Page 3: Table Of Contents

    CONTENTS • Features • Safety instructions • Battery installation & Safety • Overview • Operating instructions 10-12 • Maintenance • Field calibration test 14-23 • Specifications • Warranty...

  • Page 4: Features

    FEATURES • This laser emits 1 horizontal 360° and 1 vertical beams, that intersect on the wall in front of the device, as well as two plumb laser dots - on the floor and on the ceiling. • Self-leveling in automatic mode when the laser is positioned within its self-leveling range which is ±3º...

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS WARNING This product emits radiation classified as Class II according to EN 60825 -1 The laser radiation can cause serious eye injury • Do not stare into the laser beam • Do not position the laser beam so that it unintentionally blinds you or others.
  • Page 6 • Do not remove or deface warning labels on the laser level. • Do not disassemble the laser level, laser radiation can cause serious eye injury. • Do not drop the unit. • Do not use solvents to clean the laser unit. •...

  • Page 7: Battery Installation & Safety

    BATTERY INSTALLATION & SAFETY The 962G Prolaser Multi Beam Orbital laser uses 4 standard ® ® AA batteries. Installation 1. Press down the ledge of the battery cover. 2. Insert 4 new AA batteries of the same brand according to the polarity diagram on the battery cover.
  • Page 8 Replace the batteries if the beam/battery indicator (b) starts to flash instead of emitting a steady light. WARNING: Battery can deteriorate, leak or explode and can cause injury or fire. 1. Do not shorten the battery terminals. 2. Do not dispose of battery into household waste. 3.

  • Page 9: Overview

    OVERVIEW 1. On/Off Locking Switch 2. Keypad a. Beam Selector/Manual mode button b. Beam / Battery indicator c. Pulse Mode button d. Pulse Mode indicator 3. Horizontal laser beam window 4. Forward vertical laser beam window 5. Down plumb dot window 6.

  • Page 10: Operating Instructions

    OPERATING INSTRUCTIONS Working in Automatic mode (self-leveling): In automatic mode the laser level will level itself in ± 3° range and will project horizontal 360° beam, vertical beam and 2 plumb dots. 1. Remove the laser level from the case and place it on a solid, flat, vibration free surface or on a tripod.
  • Page 11 Working in Manual mode: In Manual mode the 962G self-leveling mechanism is disabled and the laser beams can be set at any slope required. 1. Verify that the locking switch #1 is on the OFF position. 2. Press and hold the beam selector button (a) for 3 seconds, to activate the manual mode.
  • Page 12 Working in Pulse mode with a detector: For outdoor work under direct sunlight or bright conditions, and for extended indoor ranges up to 60 meters, use the pulse mode with a Detector. When the pulse mode is activated the laser beams will flash at a very high frequency (invisible to the human eye).

  • Page 13: Maintenance

    MAINTENANCE To maintain the accuracy of your project, check the accuracy of your laser level according to the field calibration tests procedures. • Change the battery when the laser beams begins to dim. • Wipe the aperture lens and the body of the laser level with a clean soft cloth.

  • Page 14: Field Calibration Test

    FIELD CALIBRATION TEST This laser level left the factory fully calibrated. Kapro recommends the user check the accuracy of the laser periodically, especially if the unit falls or is mishandled. 1. Check the height accuracy of the horizontal beam. 2. Check the leveling accuracy of the horizontal beam.
  • Page 16 6. Move the laser level towards wall B and position it approximately 0.5 meter from wall B. 7. Mark on wall B the center of the cross beams as b2 (see figure 3).
  • Page 17 8. Turn the laser 180° towards wall A, and mark on the wall the center of the cross beams as a2 (see figure 4). 9. Measure the distances: Δa= |a2-a1| Δb= |b1-b2| 10.The difference | Δa – Δb| should be no more than 3 mm,if otherwise send the laser level to a qualified technician for repair.
  • Page 18 3. Mark point a1 on the wall, in the middle of the horizontal line at the left side of the wall (see figure 5).
  • Page 19 4. Turn the laser level counterclockwise until the cross- section of the beams moves approximately 90°, mark a point a2 on the wall near a1 in the middle of the horizontal beam (see figure 6). 5. The distance between a1 and a2, should be no more than 1.5 mm, if otherwise send the laser level to a qualified technician for repair.
  • Page 20 3. Checking the Accuracy of the Vertical beam. 1. Hang an approximately 4 meter /13 feet plumb line on a wall. 2. After the plumb line has settled, mark point a1 on the wall, behind the plumb line, near the plumb cone. (see figure 7).
  • Page 21 6. Mark point a2 on the wall, in the middle of the vertical beam at the same height as a1. (see figure 8). 7. The distance between a1 and a2, should be no more than 1.5mm, if otherwise send the laser level to a qualified technician for repair.
  • Page 22 4. Checking plumb accuracy For this procedure a room with approx. 5m distance between floor and ceiling is needed. 1. Place the laser level on the floor. 2. Unlock the pendulum and press the beam selector button to project the plumb laser dots on the ceiling and on the floor.
  • Page 23 5. Rotate the laser level 180°, position it so that the center of the down plumb dot is on the point b, which has already been marked, and allow it to level. 6. Mark the center of the upper plumb dot on the ceiling as point a2.

  • Page 24: Specifications

    SPECIFICATIONS Laser beams output • Horizontal 360° pattern • Horizontal and vertical lines • Plumb dots • All lines and dots Laser range • Indoor - 30m (100ft) • With detector - 60m (200ft) Accuracy ±0.3mm/m (±0.0003in/in) Self-leveling Range ±3° Laser line width 2 mm±0.5mm/5m (0.10”...

  • Page 25: Warranty

    The warranty does not cover products that are used improperly, altered or repaired without Kapro Tool's approval. In the event of a problem with the laser level, please return the product to the place of purchase with proof of purchase.
  • Page 26 Rev. 3.0 © 2020 Kapro Industries Ltd. 1 00...
