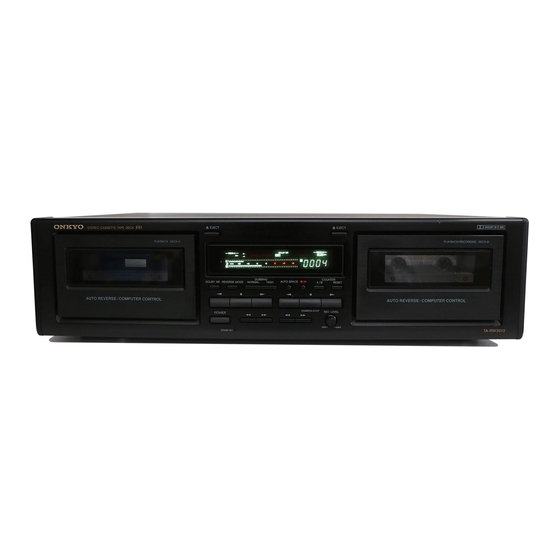

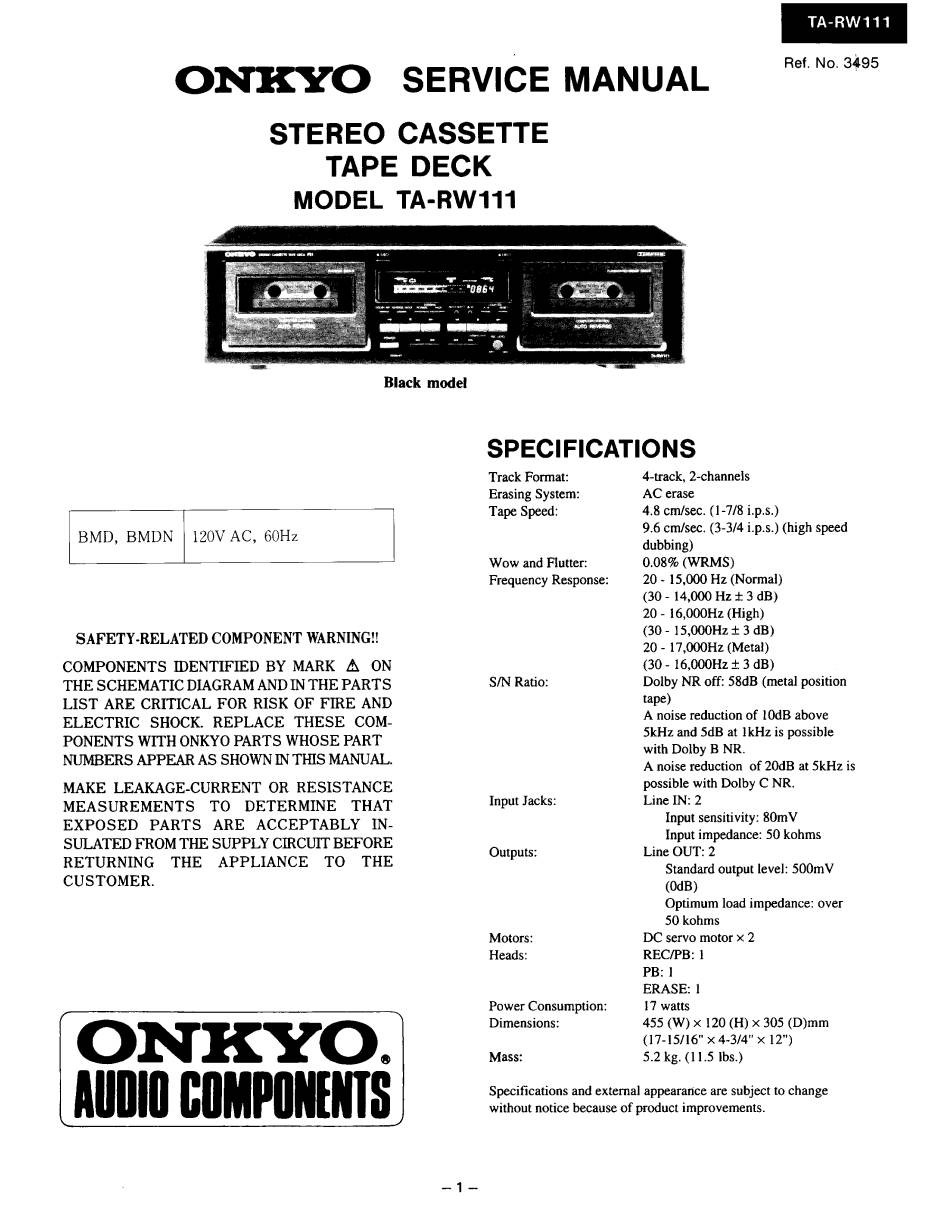

Onkyo TA-RW111 Service Manual

STEREO CASSETTE
TAPE DECK
MODEL
TA-RW111
Ref. No. 3495
Black model
BMD, BMDN | 120V AC, 60Hz
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK A ON
THE SCHEMATIC DIAGRAM AND IN THE PARTS
LIST ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE THESE COM-
PONENTS WITH ONKYO PARTS WHOSE PART
NUMBERS APPEAR AS SHOWN IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT
EXPOSED PARTS ARE ACCEPTABLY IN-
SULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE APPLIANCE TO THE
CUSTOMER.
ONKYO.
AUDIO COMPONENTS
SPECIFICATIONS
Track Format:
Erasing System:
Tape Speed:
Wow and Flutter:
Frequency Response:
S/N Ratio:
Input Jacks:
Outputs:
Motors:
Heads:
Power Consumption:
Dimensions:
Mass:
4-track, 2-channels
AC erase
4.8 cm/sec. (1-7/8 1.p.s.)
9.6 cm/sec. (3-3/4 i.p.s.) (high speed
dubbing)
0.08% (WRMS)
20 - 15,000 Hz (Normal)
(30 - 14,000 Hz + 3 dB)
20 - 16,000Hz (High)
(30 - 15,000Hz + 3 dB)
20 - 17,000Hz (Metal)
(30 - 16,000Hz + 3 dB) |
Dolby NR off: 58dB (metal position
tape)
A noise reduction of 10dB above
5kHz and SdB at 1kHz is possible
with Dolby B NR.
A noise reduction of 20dB at 5kHz is
possible with Dolby C NR.
Line IN: 2
Input sensitivity: 830mV
Input impedance: 50 kohms
Line OUT: 2
Standard output level: 5|00mV
(OdB)
Optimum load impedance: over
50 kohms
DC servo motor x 2
REC/PB: 1
PB: }!
ERASE: |
17 watts
455 (W) x 120 (H) x 305 (D)mm
(17-15/16" x 4-3/4" x 12")
5.2 kg. (11.5 Ibs.)
Specifications and external appearance are subject to change
without notice because of product improvements.
