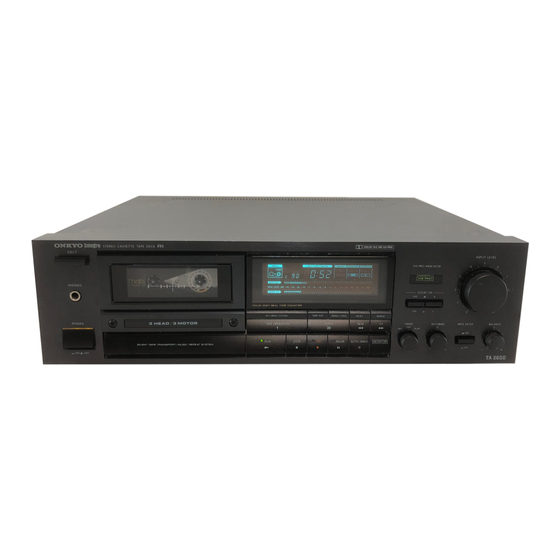

Onkyo TA-2600 Service Manual

TA-2600
SERIAL NO. 3300
ONKYO SERVICE MANUAL
STEREO CASSETTE
TAPE DECK
MODEL TA-2600
Black model
UD,UD® 120V AC. 60Hz
t ————————
UG 220V AC, 50Hz
UW 120 or 220V AC, 50/60Hz
UQA, UQB 240V AC, 50Hz
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK "4 ON
THE SCHEMATIC DIAGRAM AND IN THE PARTS
LIST ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE THESE COM-
PONENTS WITH ONKYO PARTS WHOSE PARTS
NUMBERS APPEAR AS SHOWN IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT
EXPOSED PARTS ARE ACCEPTABLY IN-
SULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE APPLIANCE TO THE
CUSTOMER.
ONKYO.
AUDIO COMPONENTS
SPECIFICATIONS
Track Format:
Erasing System:
Tape Speed:
Wow and Flutter:
Frequency Response:
S/N Ratio:
Input Jacks:
Outputs:
Motors:
Heads:
Power Supply Rating:
Power Consumption:
Dimensions:
Weight:
4-tracks, 2-channels
AC erase
4.8 cm/sec. (1-7/8 i.p.s.)
0.045% (WRMS)
20— 17,000Hz (Normal)
(30—16,000Hz + 3dB)
20 — 18,000Hz (High)
(30—17,000Hz + 3dB)
20 — 19,000Hz (Metal)
(30—-18,000Hz + 3dB)
60dB (metal tape, Dolby NR off)
A noise reduction of 10dB above 5kHz
and 5dB at 1kHz is possible with Dolby B
NR. A noise reduction of 20dB at 5kHz is
possible with Dolby C NR.
Line IN: 2
Input sensitivity: 6OmMV
Input impedance: 50kohms
Line OUT: 2
Standard output level: 500mV (OdB)
Optimum load impedance: over
50 kohms
Headphone jack: 1
Optimum load impedance: 8 to 200
ohms
DC servo motor: 1
DC motor: 2
REC/PB: Special Hard Permalloy x 1;
Erase head: Ferrite x 1
U.K. and Australian models:
AC 240V, 50Hz
U.S.A. and Canadian models:
AC 120V, 60Hz
Worldwide models:
AC 120V and 220V switchable, 50 / 60Hz
19 watts
435(W) x 132(H) x 366(D)mm
(17-1/8" x 5-3/16" x 14-3/8")
5.8 kg. (12.8 Ibs.)
Specifications and external appearance are subject to change
without notice because of product improvements.
