Onkyo TA-R77 Service Manual

TA-R77
SERIAL NO. 3144

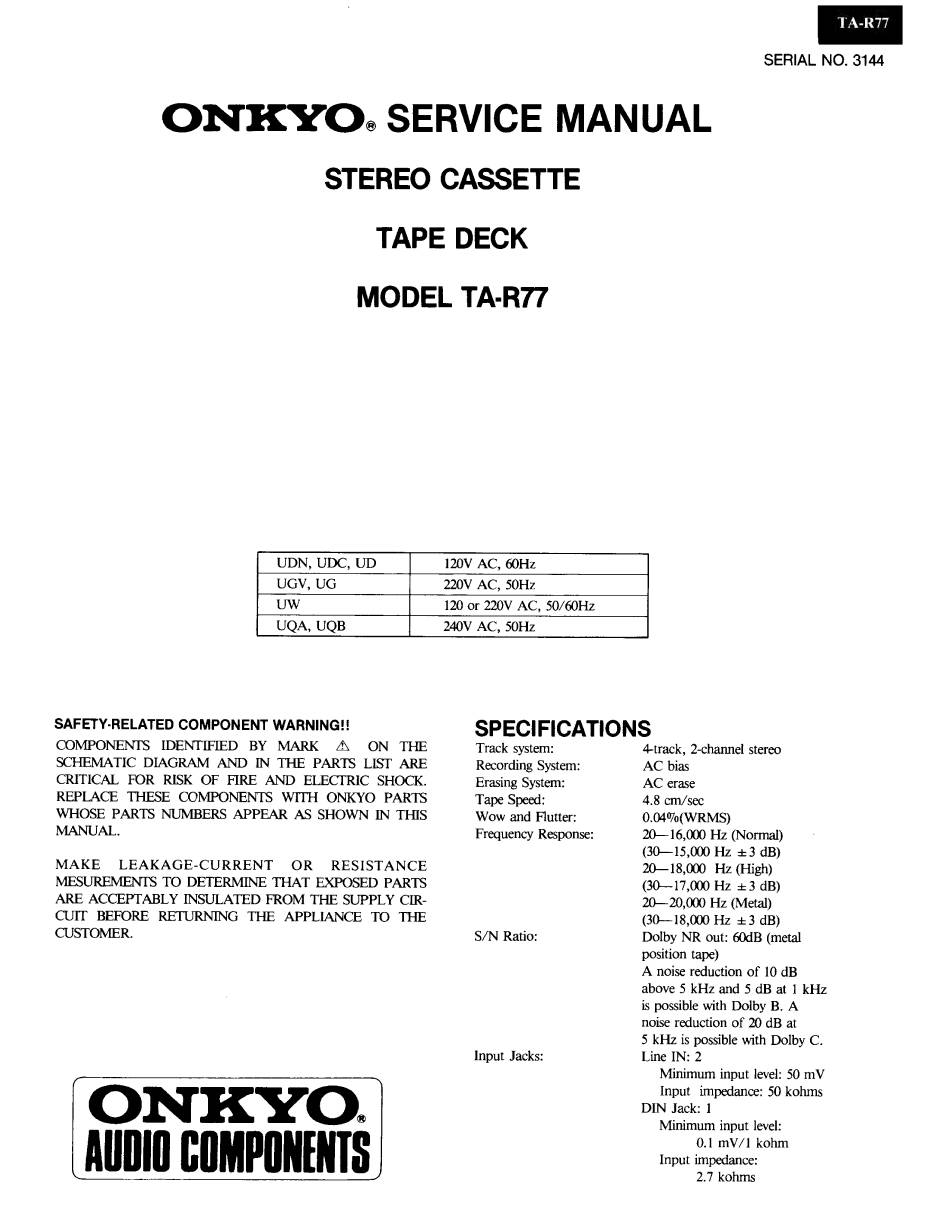

ONKYO. SERVICE MANUAL
STEREO CASSETTE
TAPE DECK
MODEL TA-R77
OV AC, ЭН;
A noise reduction of 10 dB
above 5 kHz and 5 dB at 1 kHz
is possible with Dolby B. A
noise reduction of 20 dB at
5 kHz is possible with Dolby C.
Input Jacks: Line IN: 2
Minimum input level: 50 mV
Input impedance: 50 kohms
DIN Jack: 1
Minimum input level:
0.1 mV/1 kohm
Input impedance:
2.7 kohms
ONKYO.
AUDIO COMPONENTS
